WAGNER 505 - Parts Diagram - Paint Pump Assembly

29
ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY.
1 0281113 Valve, Inlet Assembly 1
(includes item 12)
2 0089564 Cap, Outlet Assembly 1
3 9970103 Washer, Sealing, Copper 2
4 0047485 Spring, Outlet 1
5 0093635 Ball, 6mm, Carbide 1
6 0090348 Seat, Ball, Outlet Assembly 1

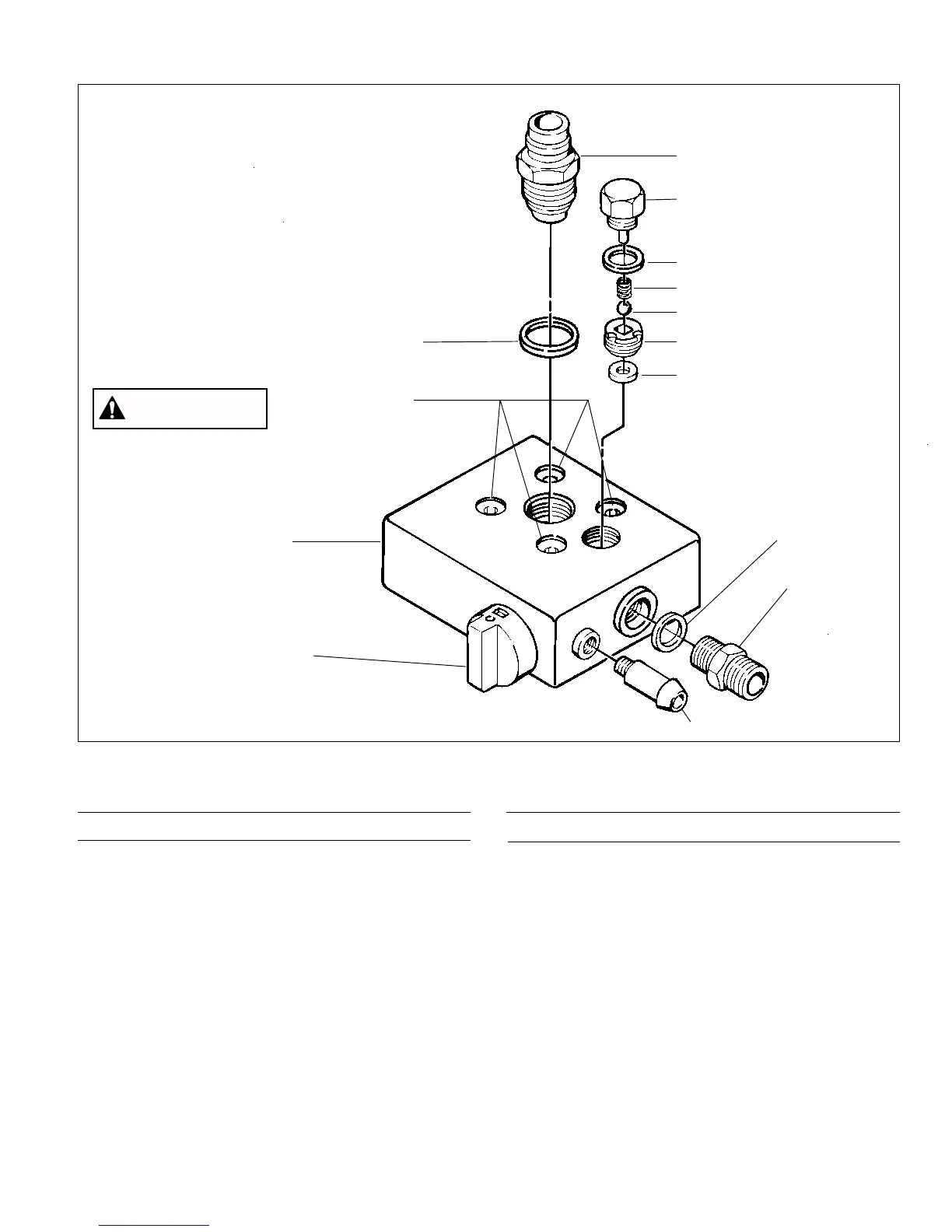

Parts Diagram – Paint Pump Assembly
1
2
7
6
5
4
3
8
3
10
11
12
CAUTION
an Authorized Wagner Service Center.
Never remove these
four bolts! Take to
9
7 0089494 Seal, Outlet 1
8 0288379 Fitting, Outlet 1
9 0088715 Fitting, Return Tube 1
10 0288748 Knob Only 1
11 0090533 Paint Pump with Valve 1
12 0089482 Washer, Sealing, Nylon 1
0288172 Repair Kit 1
Replaces both Holder & Seat
