Cleanup
Purging the Paint Hose
Before you begin
IMPORTANT: Make sure a drop cloth is placed
underneath the pump and material container to catch
any drips.
Note: Follow the cleanup steps in this manual if you used
the Direct Feed iSpray nozzle only. If you used the Control
Finish nozzle, follow the cleaning instructions on pages
19-20 in this manual.

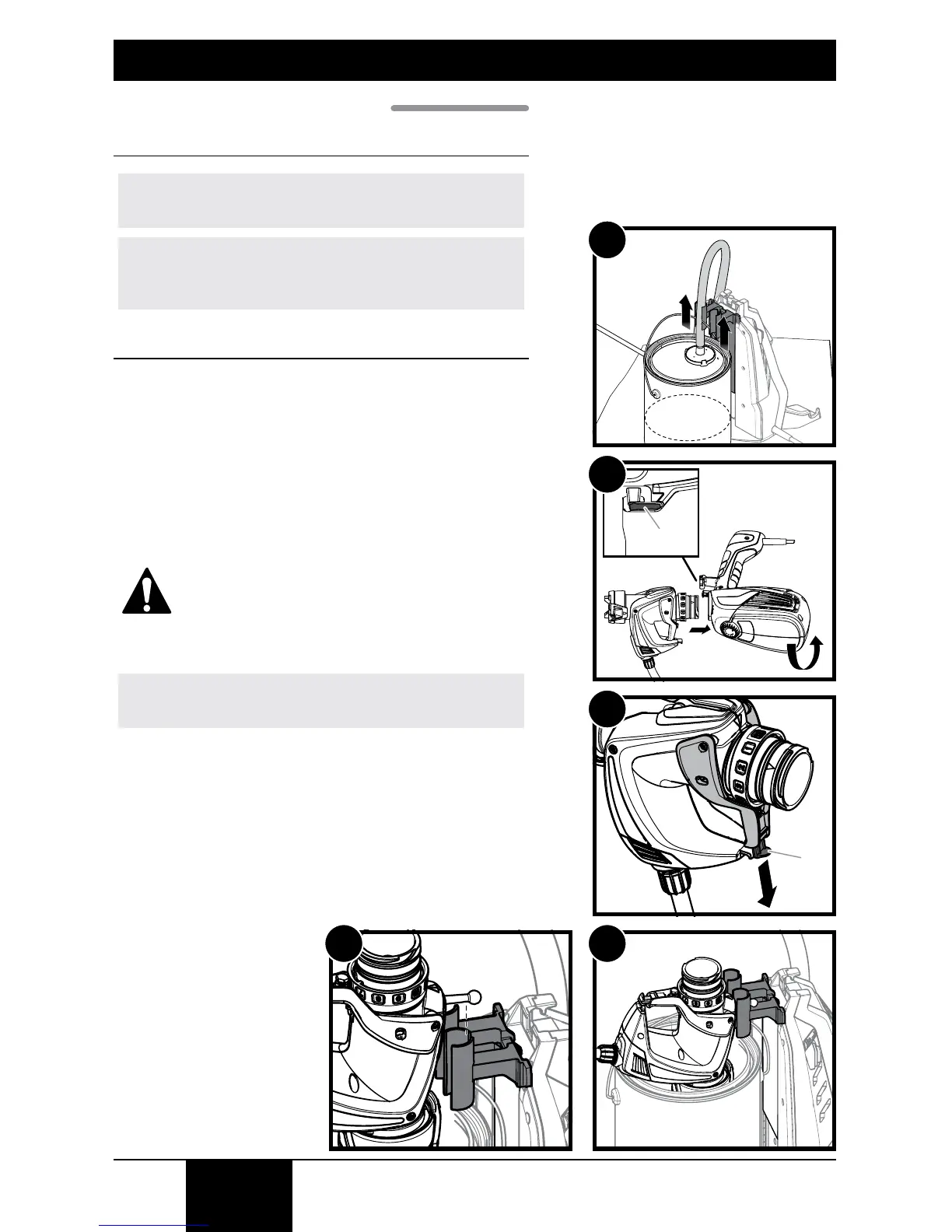

To Purge the Paint Hose
1. Turn the ON/OFF switch to OFF.
Lift the suction tube holder up a few inches. Allow
the suction tube to come up so that it is no longer
submerged in the material, but leave it in place within the
suction tube holder.
2. Push the tab below the trigger (a), twist and separate the
nozzle from the turbine. Wipe the exterior of the nozzle
until clean.
Open the velcro strap at the paint hose and separate the
power cord from the hose at about a length of 3 feet from
the turbine.
Donotsubmergeorallowtheturbinetocome
into contact with any liquids.
3. Turn the material ow control knob to 12. Pull the trigger
backwards and pull out the trigger stop (b).
Note: The material ow control knob must be set to 12 in
order for the trigger stop to move out.
4. Using the belt clip attachment, hook the nozzle onto
the empty suction tube holder (the one that does not
currently have the suction tube in it) as shown. The front
of the nozzle should be pointing directly into the material
container.
5. Turn the ON/OFF switch to ON. Allow the pump to run
until all paint is purged from the spray hose.
Turn the pump OFF. Leave the trigger stop in place for
the next steps.
Watch Cleanup:
www.exio990/cleanup
1
b
3
5
a
2
4
To Next Page
