Maintenance

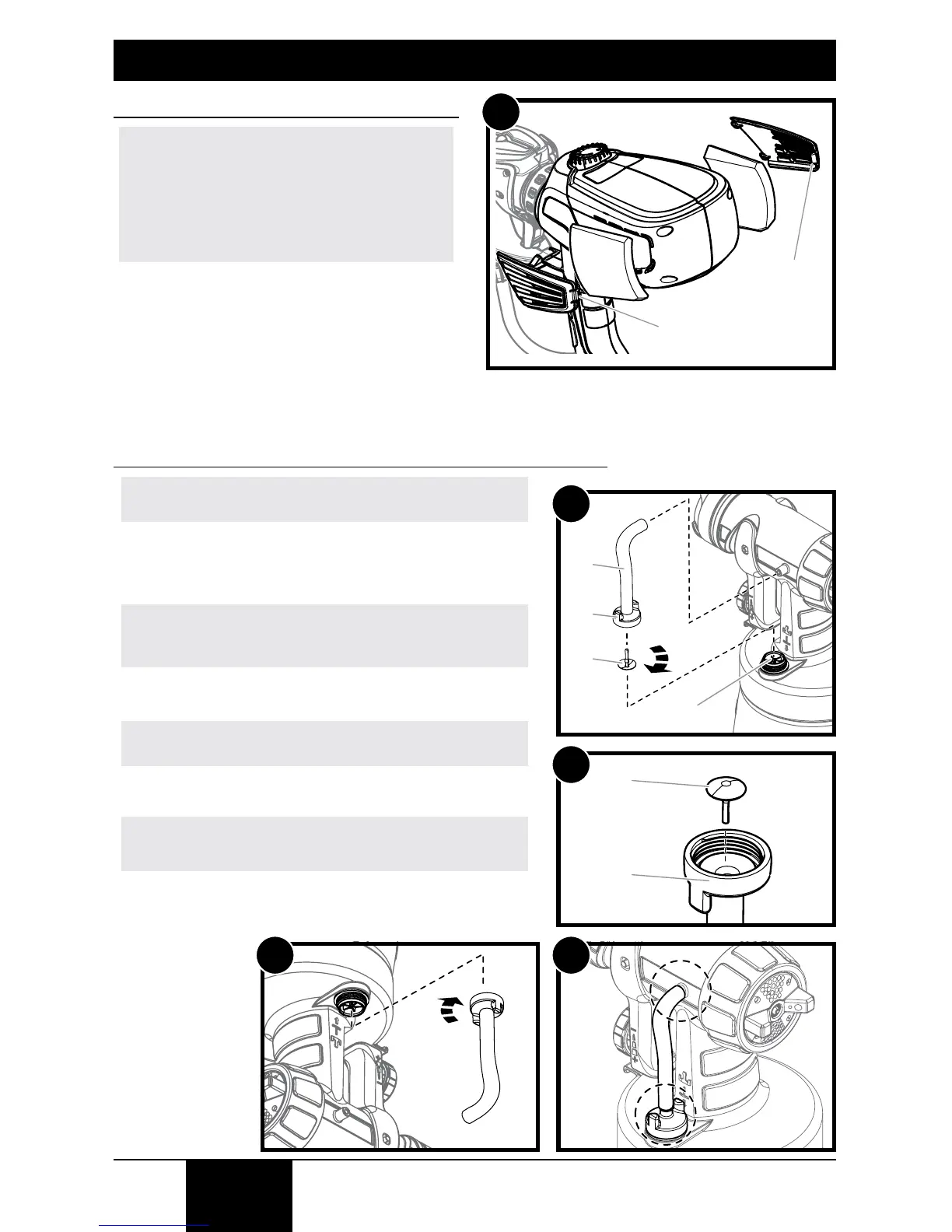

Cleaning the Filters
IMPORTANT: Before every use, you should
inspect the air lters in the turbine to see if it
is excessively dirty. If it is dirty, follow these
steps to replace it.
IMPORTANT: Never operate your unit
withouttheairlters.Dirtcouldbesuckedin
and interfere with the function of the unit.
1. Unplug the spray gun. Push the snap levers (a)
on the two turbine covers and remove them.
Remove the dirty lters and rub them between
your hands to remove collected paint. If this
does not help, replace with new ones. The
smooth side of the air lter must be placed
toward the turbine. Secure the covers back
onto the turbine.
Note: If paint has entered the air tube, proceed as follows.
1. Pull the air tube (a) at the top from the nozzle. Screw o
the valve cover (b). Remove the valve seal (c). Clean all the
parts carefully. Make sure to remove any material from
valve seal housing area (d).
IMPORTANT: The air tube and valve seal (c) are only
solvent-resistanttoalimitedextent.Donotimmersein
solvent, only wipe.
2. Place the valve seal (c) in the valve cover (b) with the pin
facing into the tube.
Note: Installing the valve seal into the valve cover will be
much easier if the valve cover is inverted.
3. Turn the nozzle upside down and screw on the valve cover
(with valve seal inside) from underneath.
Note: Turning the nozzle upside down will prevent
the valve seal from falling out of the valve cover during
reinstallation.
4. Place the air tube on the valve cover and on the nipple at
the nozzle.
Cleaning the Air Valve Tube (Control Finish Nozzle)
a
b
c
d
c
b
(a)
(a)
1
1
2
43
