English
18 © Wagner Spray Tech. - All Rights Reserved

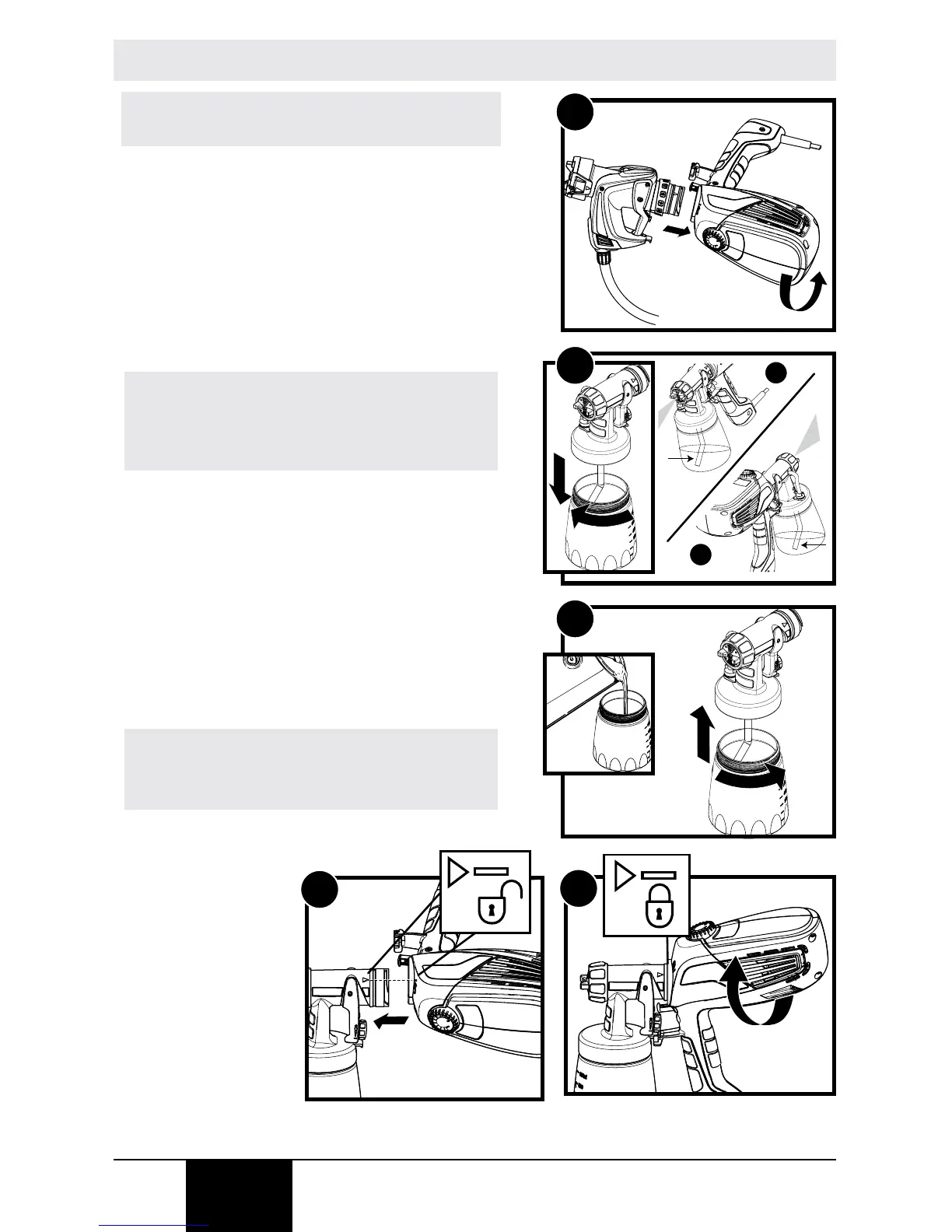

Control Finish Nozzle Setup
Note: Follow the steps below in order to set up the
sprayer for use with the Control Finish Nozzle.
1. Unplug the turbine power cord from the pump cord.
Push the tab below the trigger, twist and separate the
nozzle from the turbine.
2. Unscrew the cup from the Control Finish nozzle.
Align the suction tube -
a. If you are going to be spraying in a downward
direction, the angled end of the suction tube
should be pointing toward the front of the gun.
b. If you are going to be spraying in an upward
direction, the angled end of the suction tube
should be pointing toward the rear of the gun.
Note: Make sure the suction tube is inserted as far as
it will go to ensure a tight t.
IMPORTANT: Never tip the sprayer at more than a
45° angle. Material could get into the turbine and
damage the sprayer.
3. After the material has been properly thinned and
strained, ll the container to desired level.
Carefully screw the cup back onto the nozzle
assembly. Tighten rmly.
4. Align the arrow on the nozzle with the “unlock”
symbol on the turbine.
5. Insert and twist the nozzle into the turbine toward the
“lock” symbol on the turbine.
The tab below the trigger will lock the two pieces into
place.
6. Plug the turbine power cord into a properly grounded
extension cord. Plug in the extension cord. The
turbine will be activated by pulling the trigger.
Note: For detailed instructions regarding the spray
controls and proper spraying technique, refer to pages
8-11 in this manual.
For Cleanup, refer to pages 19-20 in this manual.
1
2
a
b
3
4
5
