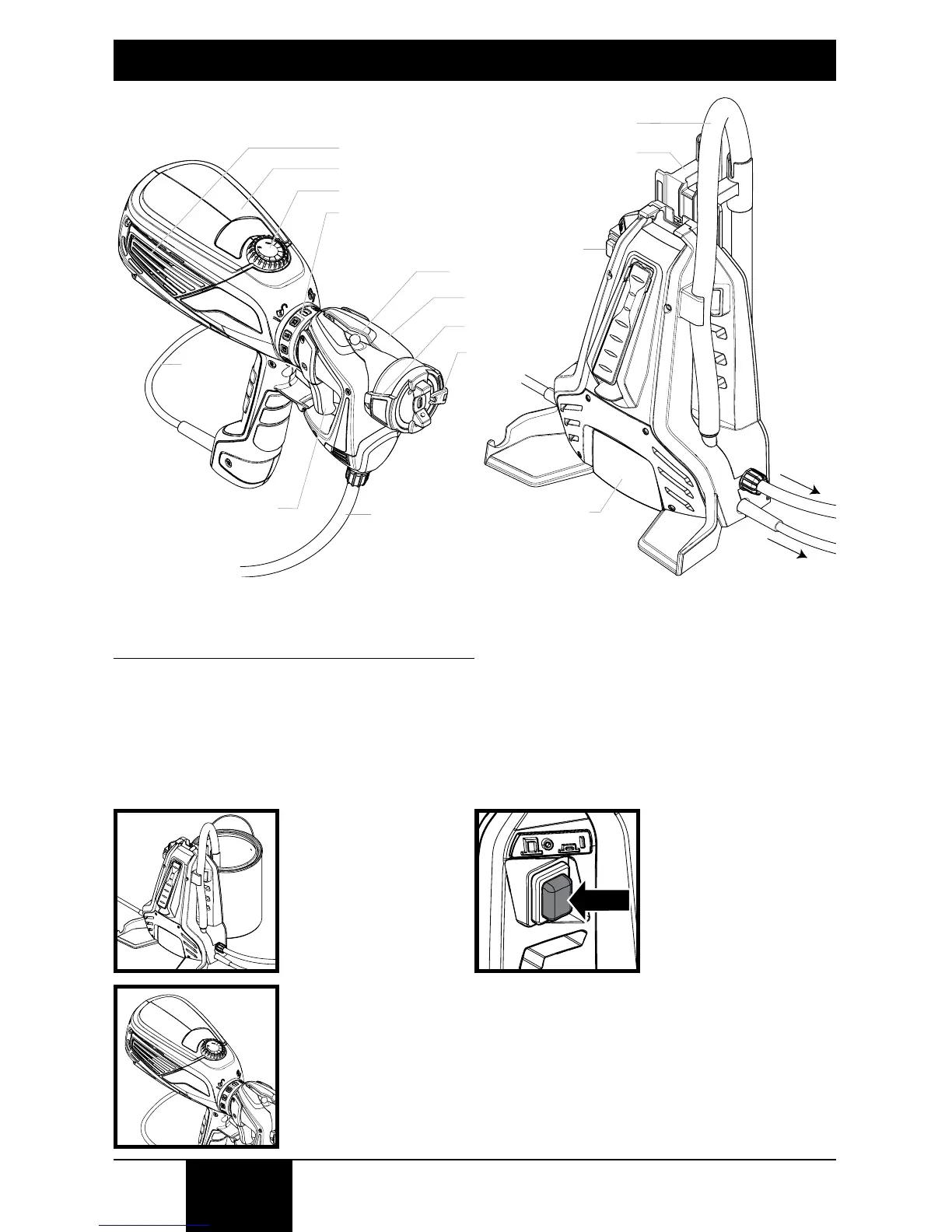

Controls and Functions
Spray width
lever
X-Boost™ power dial
X-Boost™ turbine
ON / OFF switch
Filter housing (both sides)
Suction tube
holder / paint can
attachment bracket
Fluid pump
To turbine
power cord
(14.5 f
t)
2-Stage trigger
Turbine
power
cord
Suction tube
Material ow control
Adjustment ring
Spray nozzle
Belt clip attachment
Paint hose
To pain
t
hose
Fluid Pump:
The uid pump delivers
material from the material
container to the spray
nozzle via the spray hose.
ON/OFF Switch:
The ON/OFF switch on the
uid pump turns power to
the system on and o.
X-Boost Turbine:
The X-Boost Turbine
supplies the air that
forces the material out of
the spray nozzle. When
plugged in, power to the
turbine is provided by
pulling the trigger.
Spray Process
With this spray system, the uid pump delivers
material through the paint hose to the spray nozzle.
At the spray nozzle, the material is atomized (sprayed)
by the air provided by the turbine.
For a more detailed outline of the sprayer controls,
refer to pages 8-9.
