 8 ProSpray3.29•3.31
GB
Description of unit Starting operation
3.5 Technical data
ProSpray 3.29 
  110-120Volt,50/60Hz
Max. current consumption: 13 A 15 A
Power cord: 3 x 1.5 mm
2
– 6 m or 4.6m
Acceptance capacity: 1725 Watt 1840 Watt
Max. operating pressure: 221 bar (22.1 MPa)

 3,0 l/min 3,8 l/min
Max tip size: 0.029 inch – 0.032 inch –
0.73 mm 0.81 mm
Max. temperature of the
coating material:  43°C
Max viscosity: 25.000 mPa·s
Weight: 43.5 kg
Special high-pressure hose: DN 6 mm, 15 m, connection
thread M 16 x 1.5
  590 x 529 x 726 mm
Max sound pressure level: 80 dB (A) *
 * Placeofmeasuring:1mindistancefromtheunitand1.6
m above the oor, 12 MPa (120 bar) operating pressure,
reverberant oor.
3.6 Transportation
Pushing or pulling the unit

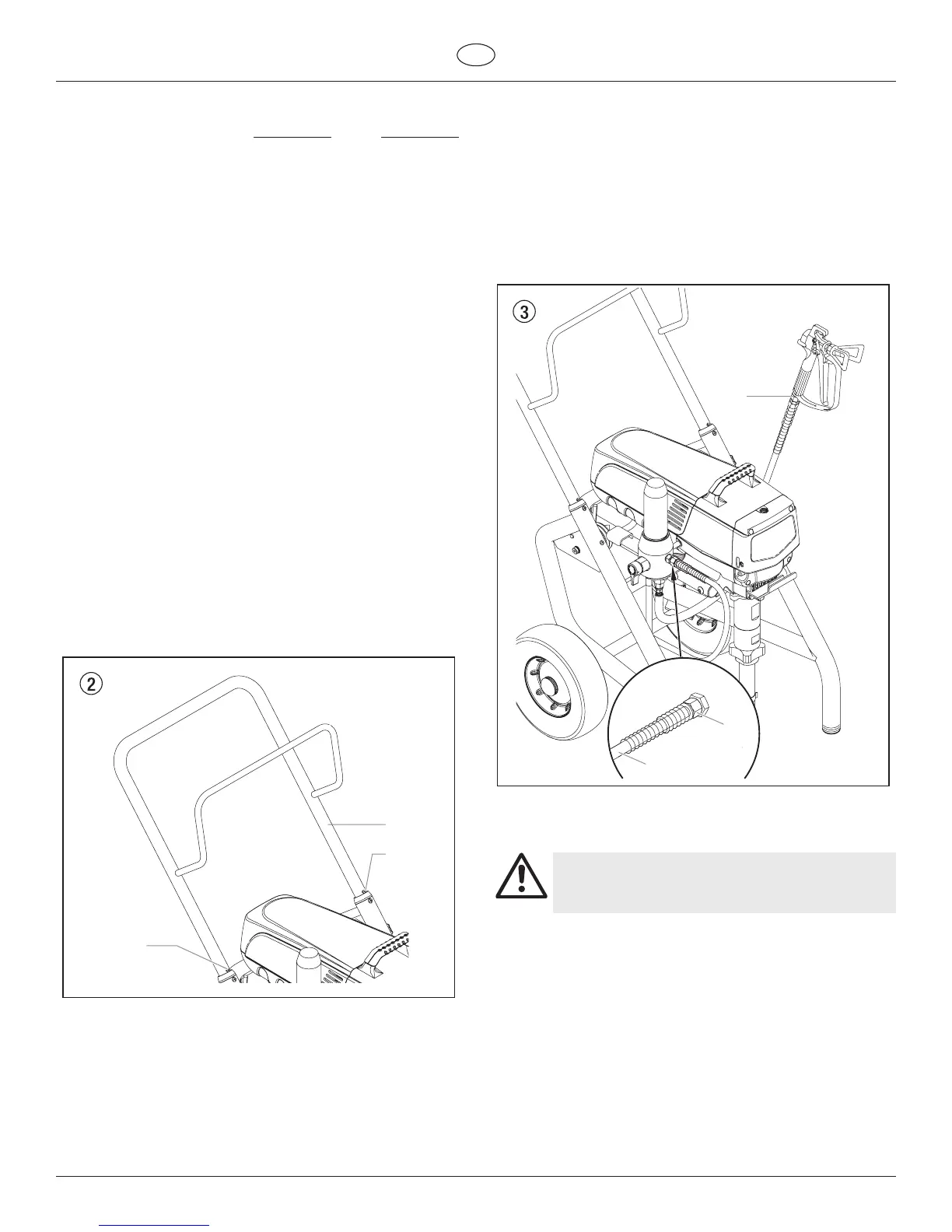

Pull out the handle (Fig. 2, Item 1) until it will come no further. Insert
the handle – push the buttons (2) on the spars, and then push in the
handle.
2
1
2
3.7 Transportation in vehicle
Secure the unit with a suitable fastening.
4. Starting operation
 
oil
1. Screw the high-pressure hose (2) to the coating material
outlet (Fig. 3, Item 1).
2. Screw the spray gun (3) with the selected tip onto the high-
pressure hose.
3. Tighten the union nuts at the high-pressure hoses rmly so
that coating material does not leak.
3
2
1
4. Remove the oil cup cap with a straight-slot screwdriver.
5. Fill the oil cup with EasyGlide (Fig. 4) until the oil gauge (4) is
showing that it is full.
Attention

packings.
6. Replace oil cup cap.
7. Press oil button 2-5 times to prime the oiler. Press once for
every eight hours of usage to lubricate the uid section.
