description of unit
PS 3.25
3.4 LEGEND FOR EXPLANATORY DIAGRAM PS 3.25
1. Spray gun
2. High-pressure hose
3. Return hose
4. Suction hose
5. Frame
6. Drip cup
7. Power cord
8. Relief valve
Lever position vertical – PRIME ( k circulation)
Lever position horizontal – SPRAY ( p)

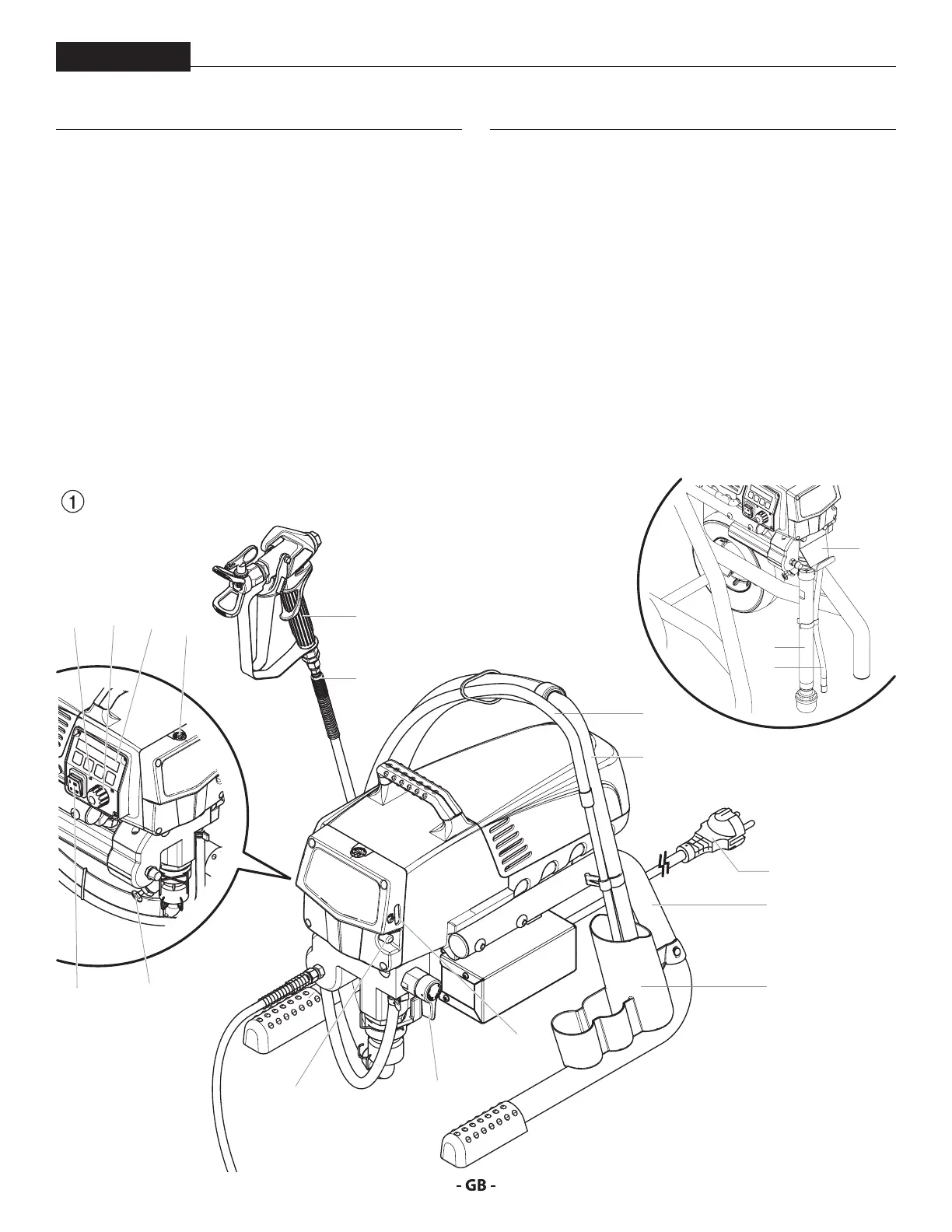

3.5 EXPLANATORY DIAGRAM PS 3.25
9. Oil button
10. Oil level gauge
11. ON/OFF switch
12. Control panel indicators
13. Pressure control knob
14. Digital Electronic Spray Control (DESC)
15. Oil cup for EasyGlide (EasyGlide prevents increased wear
of the packings)
16. Pusher stem
17. Pail hook (high cart)
6
5
7
4
3
1
2
8
9
10
11
13
15
14
16
17
3
4
