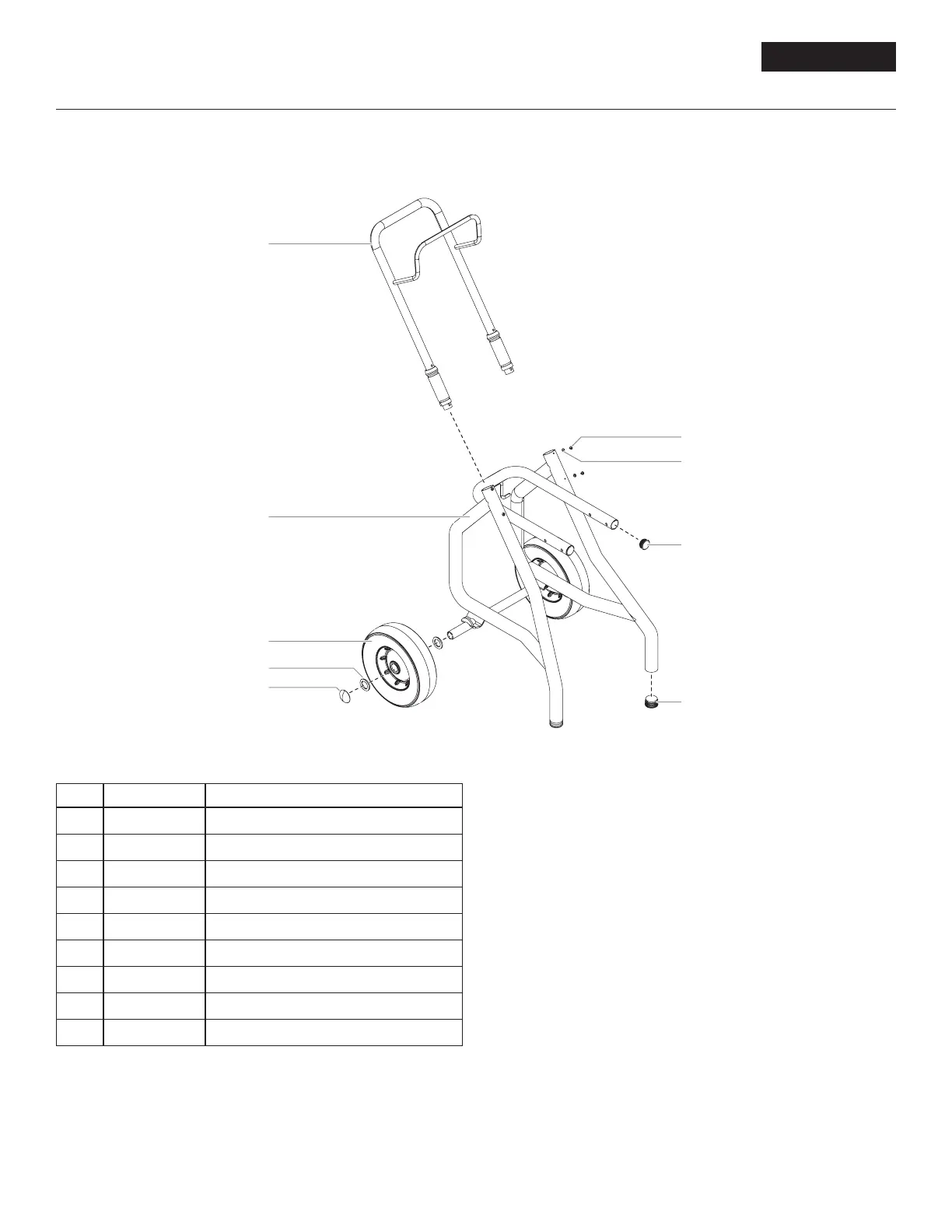

SPARE PARTS DIAGRAM
PS 3.25
GB UPRIGHT CART ASSEMBLY
40
1
3
4
6
8
9
7
5
2
#
PS 3.25 Description
1 0290 207 Handle assembly (includes items 6-7)
2 0290 208 Cart weldment
3 0278 373 Wheel (2)
4 0294 534 Spacer (4)
5 9890 104 Axle cap (2)
6 0295 608 Screw (2)
7 0509 386 Washer (6)
8 0294 635 Plug (2)
9 9885 571 Plug (2)
