description of unit / starting operation
PS 3.25
3.6 TRANSPORTATION

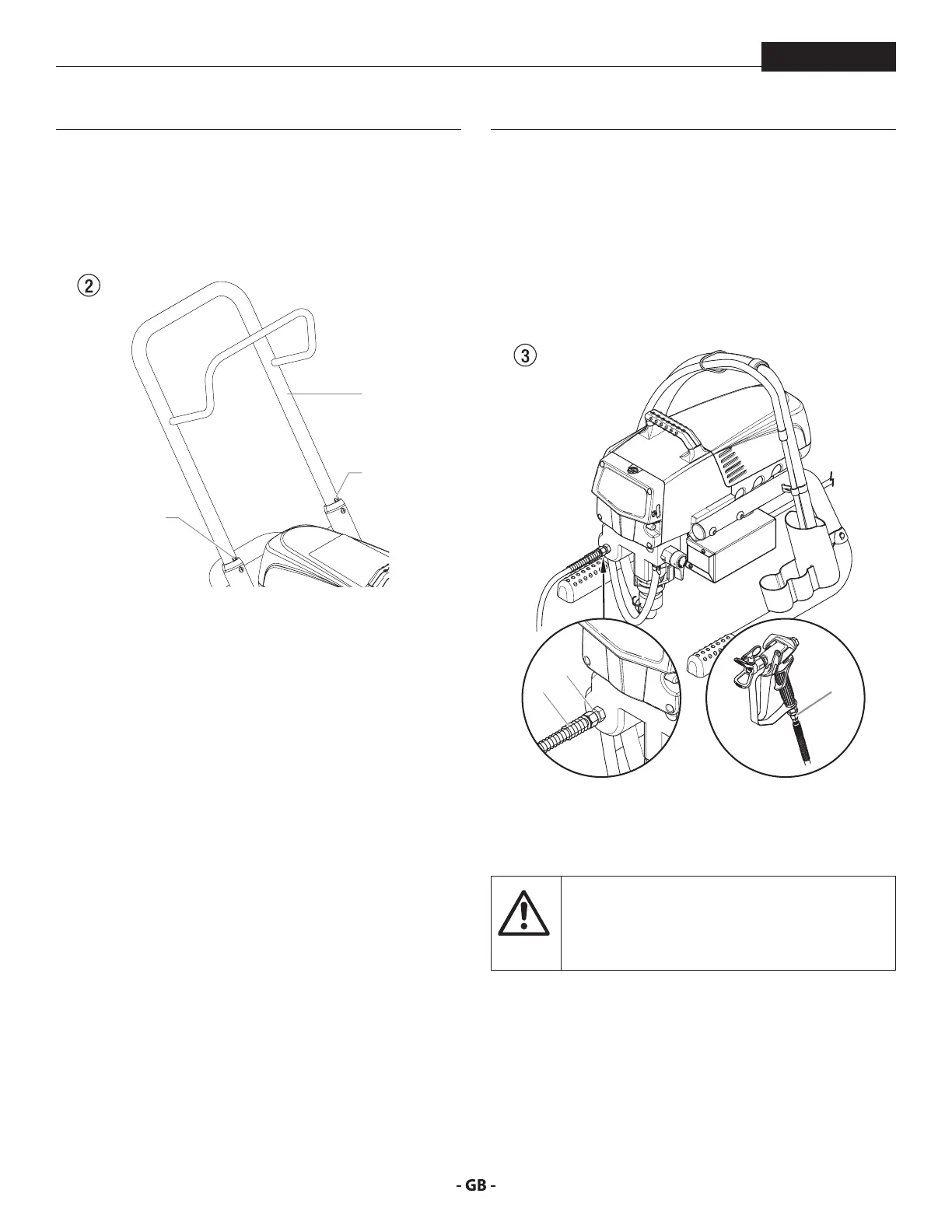

Pushing or pulling the unit
Pull out the handle (Fig. 2, Item 1) until it will come no further.
Insert the handle – push the buttons (2) on the spars, and then
push in the handle.
2
1
2
3.7 TRANSPORTATION IN VEHICLE
Secure the unit with a suitable fastening.
4 STARTING OPERATION
4.1 HIGHPRESSURE HOSE, SPRAY GUN AND
SEPARATING OIL
1. Screw the high-pressure hose (2) to the coating material
outlet (Fig. 3, Item 1).
2. Screw the spray gun (3) with the selected tip onto the
high-pressure hose.
3. Tighten the union nuts at the high-pressure hoses rmly
so that coating material does not leak.
3
1
2
4. Remove the oil cup cap with a straight-slot screwdriver.
5. Fill the oil cup with EasyGlide (Fig. 4) until the oil gauge (6)
is showing that it is full.
EasyGlide prevents increased wear and tear to
the packings.
6. Replace oil cup cap.
7. Press oil button 2-5 times to prime the oiler. Press once for
every eight hours of usage to lubricate the uid section.
8. Fully depress the pusher stem to make sure the inlet ball is
free.
