30 ProSpray3.29•3.31

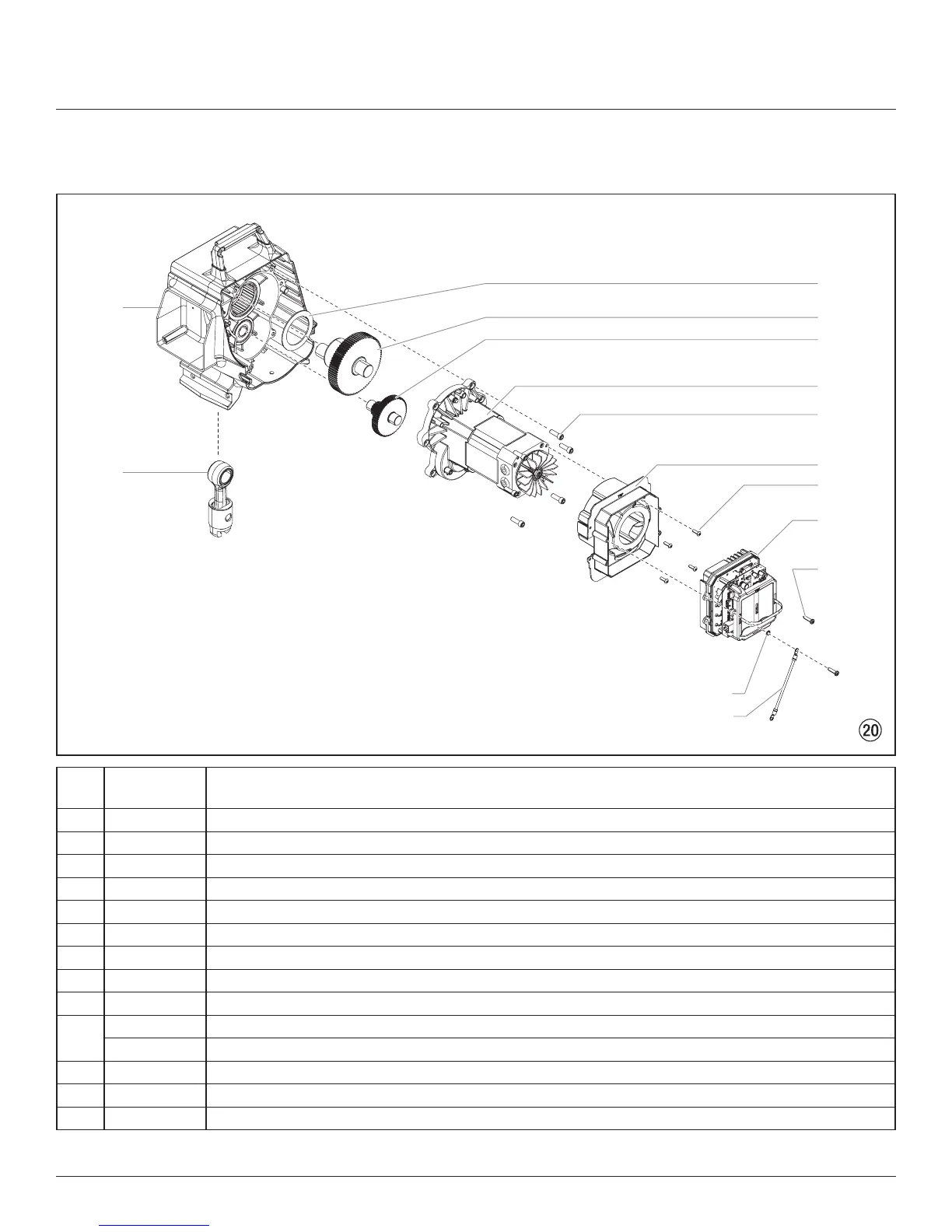

Spare parts list

1
2
3
4
5
6
8
9
10
11
7
12
13

Item Part No. 
1 0558 323A Housing assembly
2 0290 241 Slider assembly
3 0290 254 Thrust washer
4 0290 239 Gear/crankshaft assembly
5 0290 240 1st stage gear
6 0558 324A Motor assembly
7 0508 559 Screw (6)
8 0290 261 Bafeassembly
9 0509 218 Screw (4)
10 0558 535 Electronic control assembly (PS 3.29)
0558 536 Electronic control assembly (PS 3.31)
11 9802 266 Screw (2)
12 9822 106 Washer
13 0522 040 Wire assembly
