8 ProSpray3.29•3.31
Description of unit Starting operation
ProSpray 3.29
Voltage: 220~240Volt,50/60Hz
7.5 A 8 A
3 x 1.5 mm
2
– 6 m
1725 Watt 1840 Watt
221 bar (22.1 MPa)
3,0 l/min 3,8 l/min
0.029 inch – 0.032 inch –
0.73 mm 0.81 mm
43°C
25.000 mPa·s
Weight: 43.5 kg
DN6mm,15m,connection
thread M 16 x 1.5
590 x 529 x 726 mm
80 dB (A) *
* Place of measuring: 1 m in distance from the unit and 1.6
mabovetheoor,12MPa(120bar)operatingpressure,
reverberantoor.

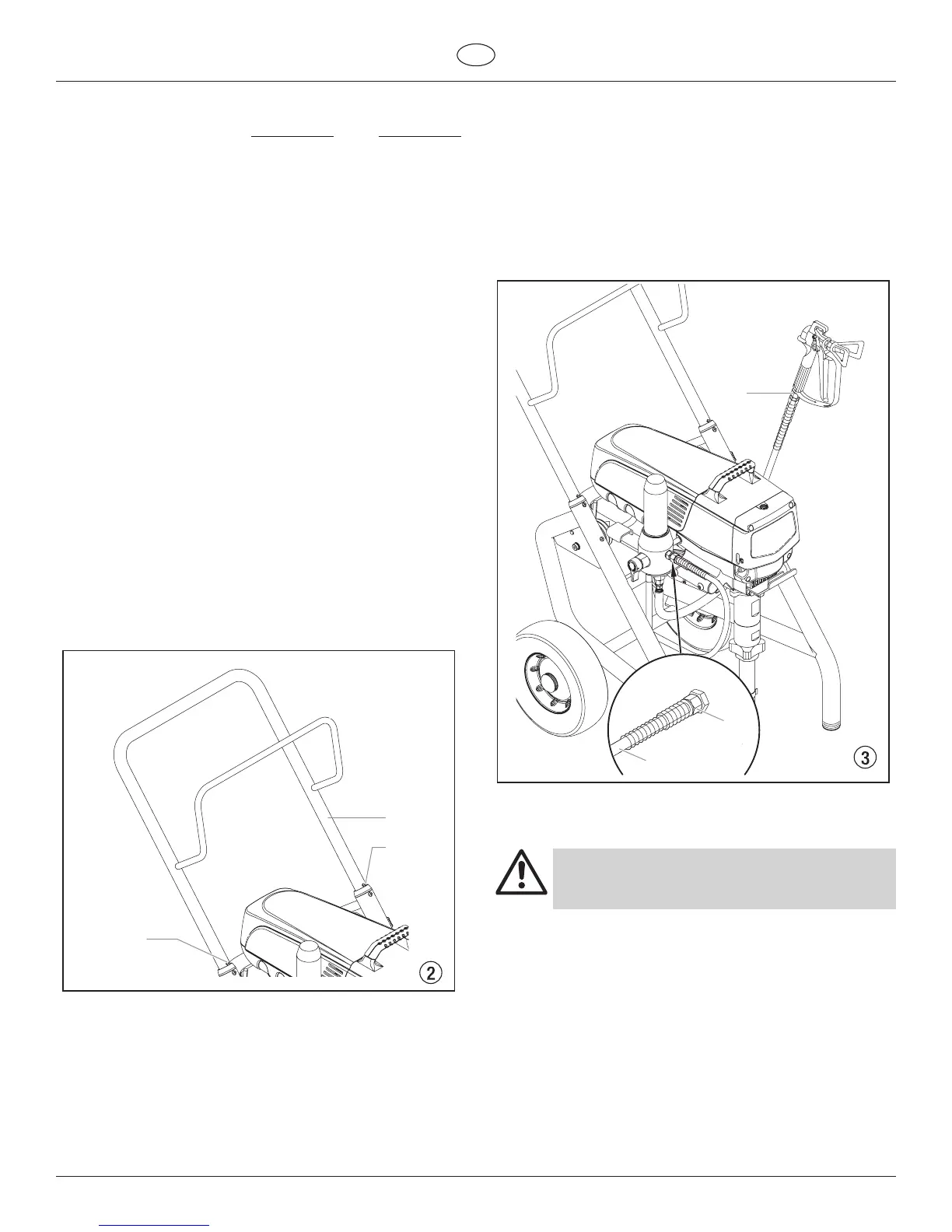

Pushing or pulling the unit
Pull out the handle (Fig. 2, Item 1) until it will come no further.
Insert the handle – push the buttons (2) on the spars, and then
push in the handle.
Secure the unit with a suitable fastening.
separating oil
1. Screw the high-pressure hose (2) to the coating material
outlet (Fig. 3, Item 1).
2. Screw the spray gun (3) with the selected tip onto the
high-pressure hose.
3. Tightentheunionnutsatthehigh-pressurehosesrmly
so that coating material does not leak.
4. Remove the oil cup cap with a straight-slot screwdriver.
5. Fill the oil cup with EasyGlide (Fig. 4) until the oil gauge
(4) is showing that it is full.
6. Replace oil cup cap.
7. Press oil button 2-5 times to prime the oiler. Press once
foreveryeighthoursofusagetolubricatetheuidsection.
