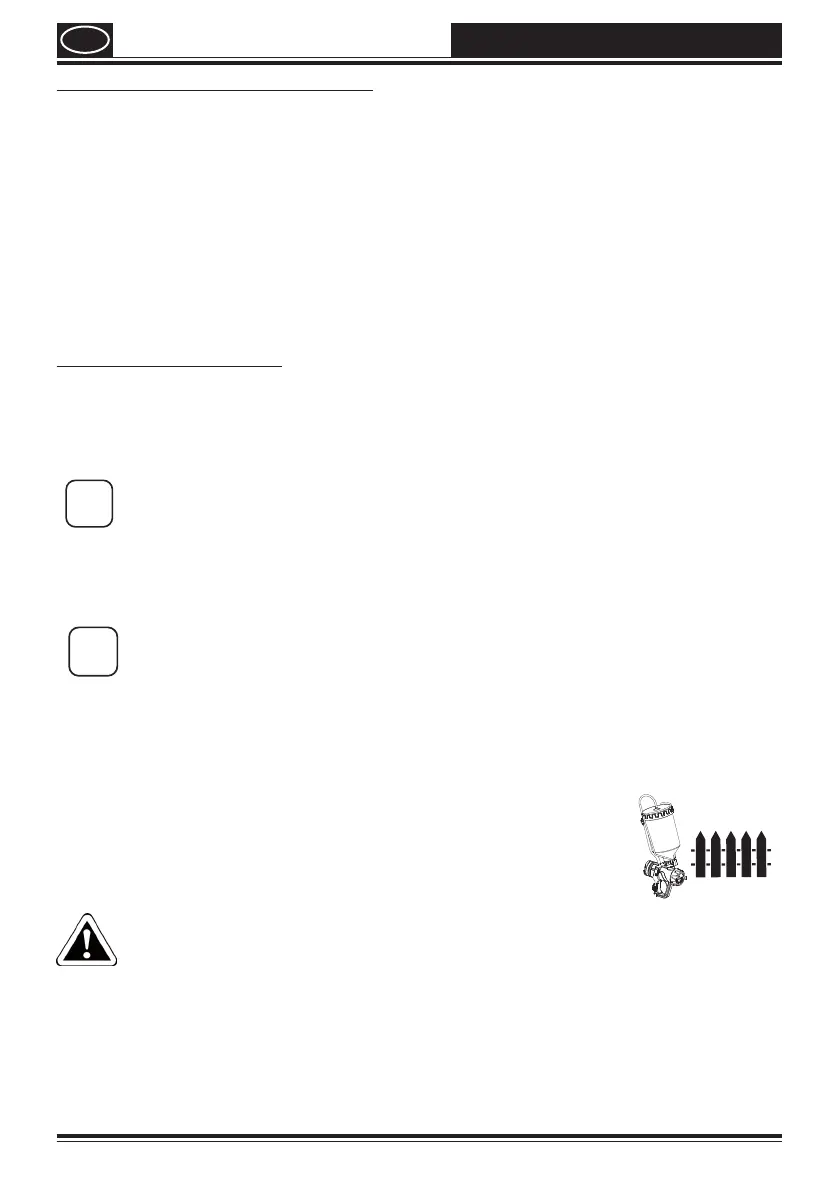

8
W 690 Flexio Extra Spray Kit
AUS
Wall Extra I-Spray spray attachment
3. Unscrew the container from the spray gun.
4.
Aligning suction tube. (Fig. 4)
If the suction tube is positioned correctly, the container contents can be sprayed
without almost any residue.
When spraying horizontal surfaces, turn suction tube forward. (Fig. 4 A)
When spraying objects overhead, turn suction tube back. (Fig. 4 B)
5.
Set the container on a sheet of paper, pour in the prepared coating material and screw
the container tightly onto the spray gun.
6. Connect the front part with the rear part of the gun. (Fig. 5)
Gravity spray attachment
7.
Insert the container in the gun body and secure by turning with the bayonet lock.
(Fig. 6)
8. Connect the front part with the rear part of the gun. (Fig. 5)
9. Place the gun with the pedestal folded out on an even surface.
i
Only ll the container once it is attached to the gun, otherwise the coating
material will leak out.
10. Pour the prepared coating material into the container.
11. Close the container with the cover.
12. Attach the valve hoses to the container cover and gun body. (Fig. 7)
i
The enclosed practice poster is ideal for familiarising yourself with
operation of the spray gun. After trying out the rst spray coatings, it
makes sense to test it further on cardboard or a similar surface in order
to nd out the right ow rate of paint and air for the best spray pattern.
Detailed information about these settings can be found in chapter
9-13.
9. Selecting the Spray Setting (Gravity spray
attachment)
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
With the union nut (g. 8, 1) slightly unscrewed, turn the air cap (2) to the desired
spraysetting position (arrow). Then tighten the union nut.
Fig. 9 A = vertical at jet for horizontal surfaces
Fig. 7 B = horizontal at jet for vertical surfaces
Fig. 7 C = circular jet for corners, edges and hard-to-reach surfaces
