Starting up the Bluetooth® Modules
WAGO-I/O-SYSTEM 750
I/O Modules
2.2 Starting up the Bluetooth
®
Modules
1. Determine which Bluetooth
®
module will function as the master and which
module will function as the slave.
2. Write down the MAC address of the slave: 0 0 : 0 6 : C 6 : _ _ : _ _ : _ _
Write down the MAC address of the master: 0 0 : 0 6 : C 6 : _ _ : _ _ : _ _
2.2.1 Configuration of the Bluetooth
®
Slave Using "Net Forming"
1. Start the WAGO-I/O-CHECK software (Version 3 or later).
2. Click on the [Identify] button.
Your node configuration is graphically displayed (see Figure 2).

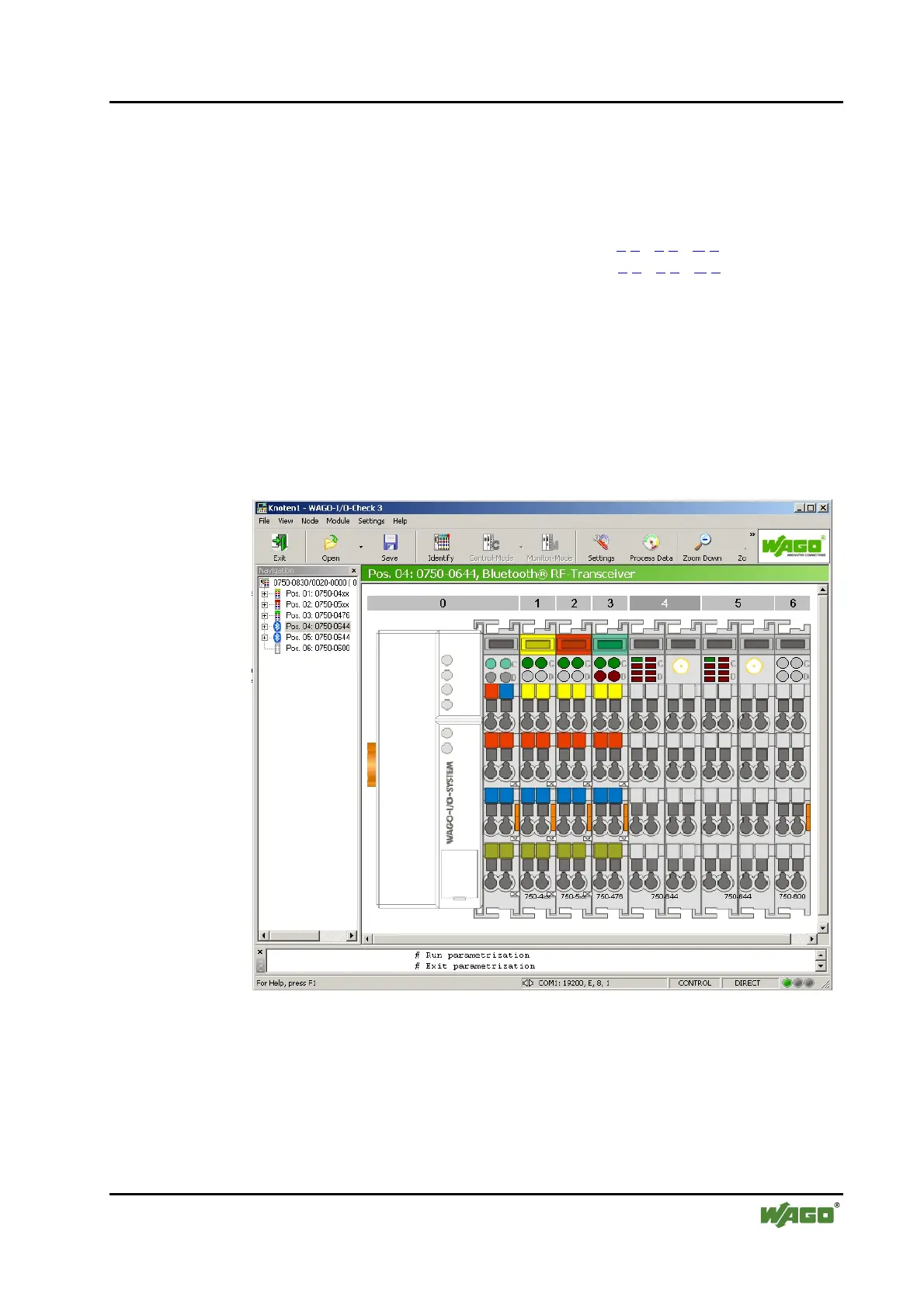

Figure 2: Identify your node configuration g064462e
3. Click with the right mouse button on the Bluetooth
®
module that you
would like to configure as a slave.
