Quick Start • 13
Starting up the Bluetooth® Modules
WAGO-I/O-SYSTEM 750
I/O Modules
2.2.2 Configuration of the Bluetooth
®
Master Using "Net Forming"
1. Start the WAGO-I/O-CHECK software (Version 3 or later).
2. Click on the button [Identify].
Your node configuration is graphically displayed.
3. Click with the right mouse button on the Bluetooth
®
module that you
would like to configure as a master.
4. Choose Settings in the context menu. This opens a new window for the
configuration of the module.
Attention
For the following, the Bluetooth
®
module must remain intact; i.e., no configu-
ration attempts have been attempted. If this is not the case, click on the [De-
fault], button to reset the module's configuration.
5. Click on [Data Frame] in the toolbar.
6. Enter (if not already set) a process image size of 48 bytes and a mailbox
size of 12 bytes (see Figure 7).

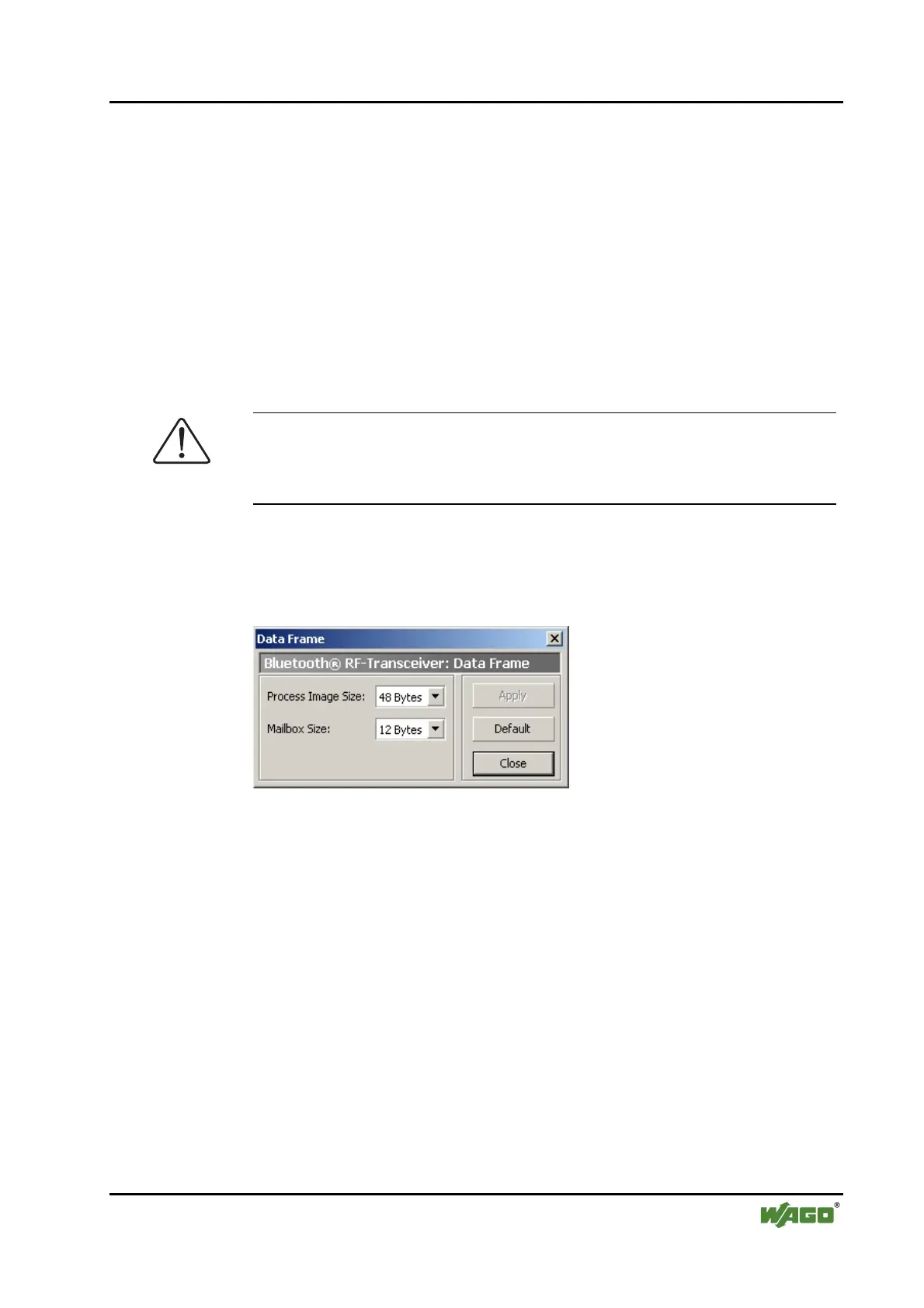

Figure 7: Data structure g064444e
7. Click on the [Read] button in the toolbar to update the view of the con-
figuration in the module.
8. In the list on the right side, assign the role of master to the module by
choosing "Master" under Device Role.
9. Choose the menu item Net Forming in the navigation bar.
