User’s Manual Pulse • PulsePlus

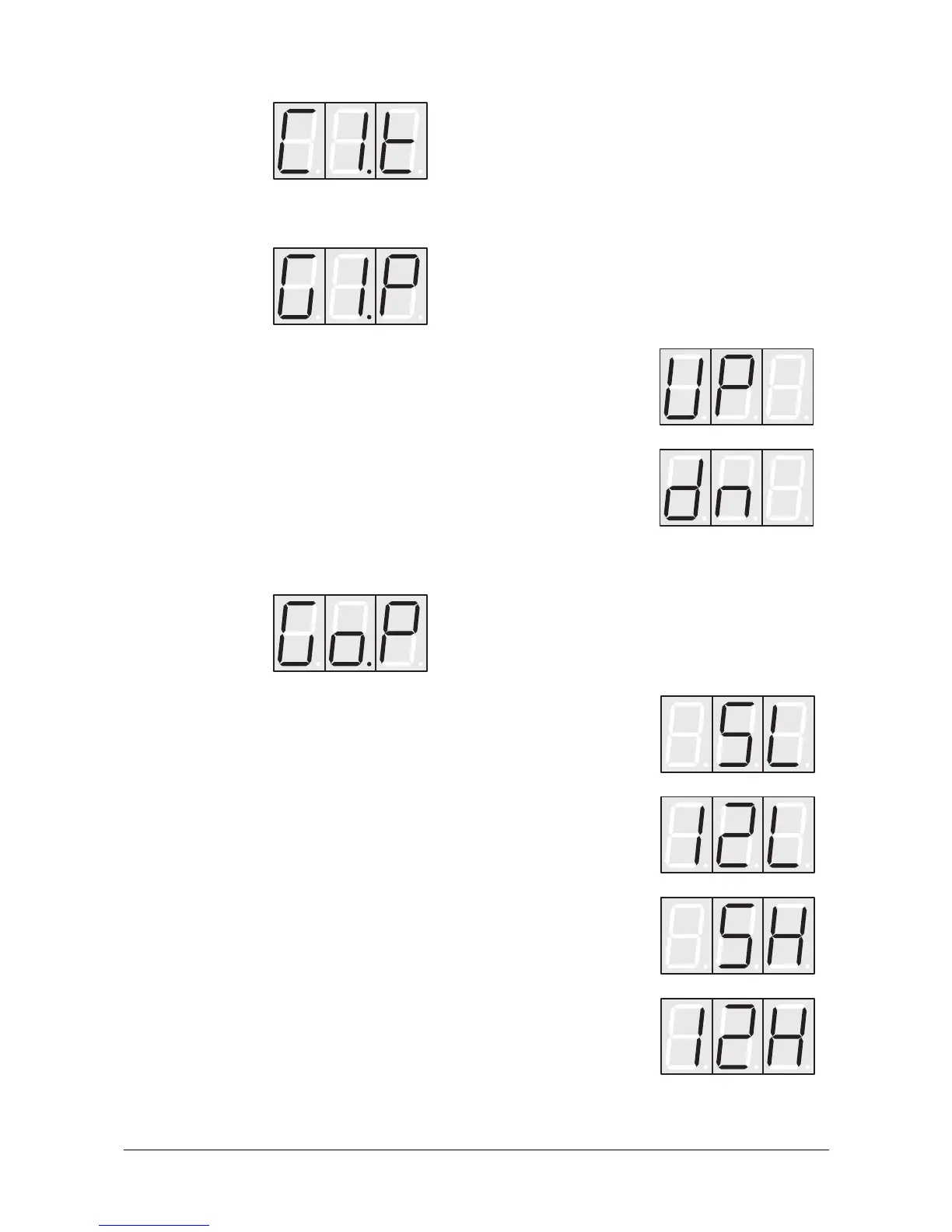

CV In Transpose
Gate In Polarity
Gate Out Polarity
12V, active high:
5V, active high:
12V, active low:
5V, active low:
Determines the active level and polarity of the
Gate Out output.
negative (low level):
positive (high level):
Determines the active polarity of the Gate In
input.
Determines the tranposition of the notes received
via CV In.
-36...+36

Waldorf Pulse Specifications

General

Type	Analog Synthesizer
Polyphony	Monophonic
LFO	1
MIDI	In, Out, Thru
Keyboard	No Keyboard
Year Released	1995
Filter	24dB/octave Low-pass Filter
Envelopes	2 (ADSR)
Waveforms	Sawtooth, Triangle, Pulse
Inputs	CV, Gate
Outputs	Audio Output
Oscillators	3 Analog Oscillators
