Walker H27i - Maintenance

Safety Instructions
17
Location: Underside of Rear Body
Part Number: 2107-5
1. Ground drive belt routing.
2. PTO clutch belt routing.
1.
2.

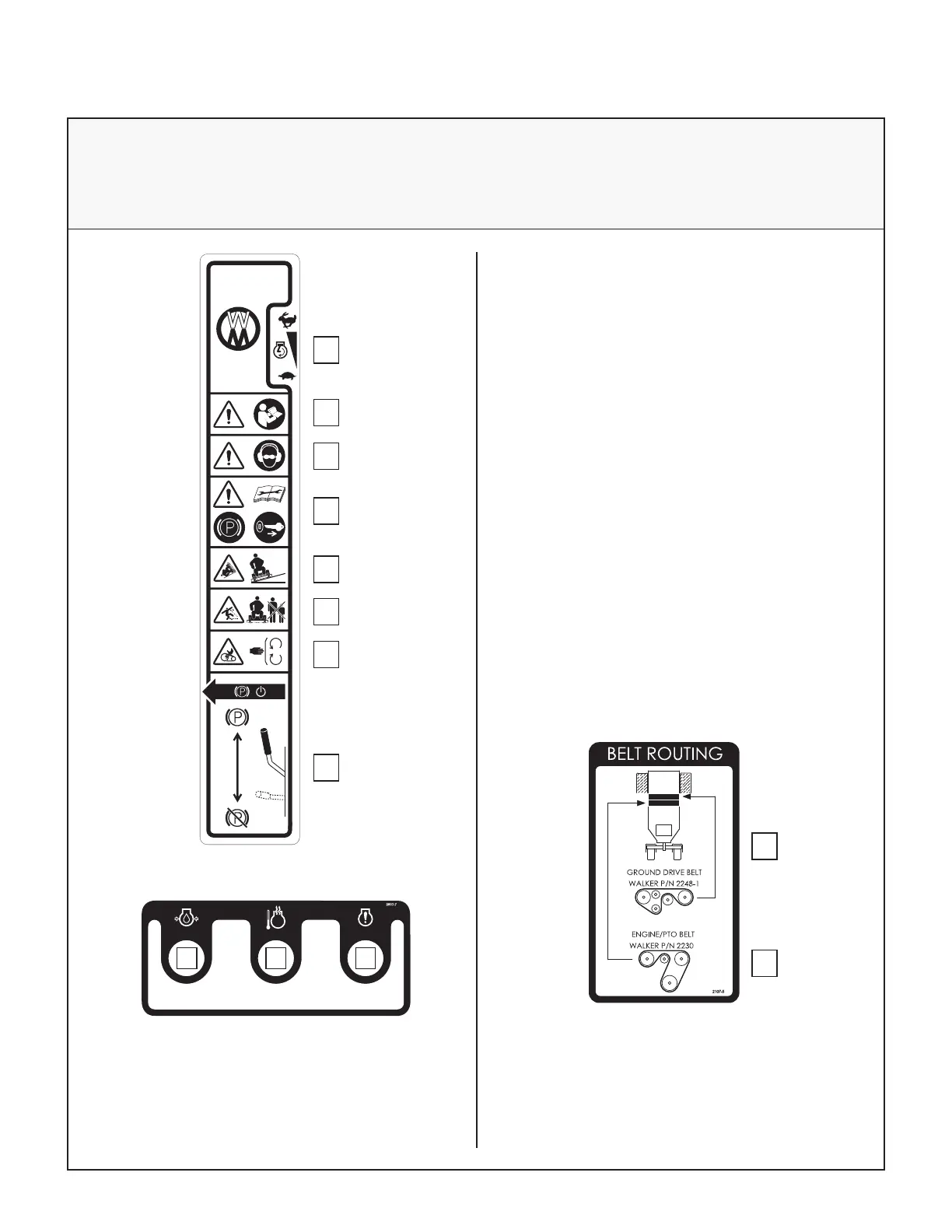

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Left Fender
Part Number: 2802-5
1. Throttle
● Move lever forward to increase engine
speed; back to idle.
2. Warning – read Operator’s Manual before oper
ating the machine.
3. Warning – wear eye and ear protection when
operating the machine.
4. Warning – read Operator’s Manual before servic
ing or performing maintenance.
● Engage parking brake.
● Remove ignition key.
5. Warning – rollover hazard.
● Do not operate on slopes greater than 15
degrees.
6. Warning – thrown object hazard.
● Keep bystanders away from the machine
when operating.
7. Warning – entanglement hazard.
● Keep all guards in place while engine is run
ning.
8. Parking Brake
● Move lever forward to engage Parking
Brake; back to disengage.
Location: Front Body Adjacent to
RH Steering Lever
Part Number: 2807-7
1. Low Engine Oil Pressure Warning Light.
2. High Cylinder Head Temperature Light.
3. Engine Service Light.
CYL HEAD TEMP SERVICE ENGINEOIL PRESSURE
1. 2. 3.
2802-5
<15°
1. 2.
2.
3.
4.
5.
6.
7.
8.
1.
