66
Maintenance Instructions REPLACING/REPAIRING
Ground Drive Belt
1. To remove the ground drive belt:
a. Remove belt tension by raising the spring
loaded idler pulley with the deck tilt bar.
b. Slide belt o pulleys, then release the idler
pulley.
2. Reverse the procedure to install the ground
drive belt.

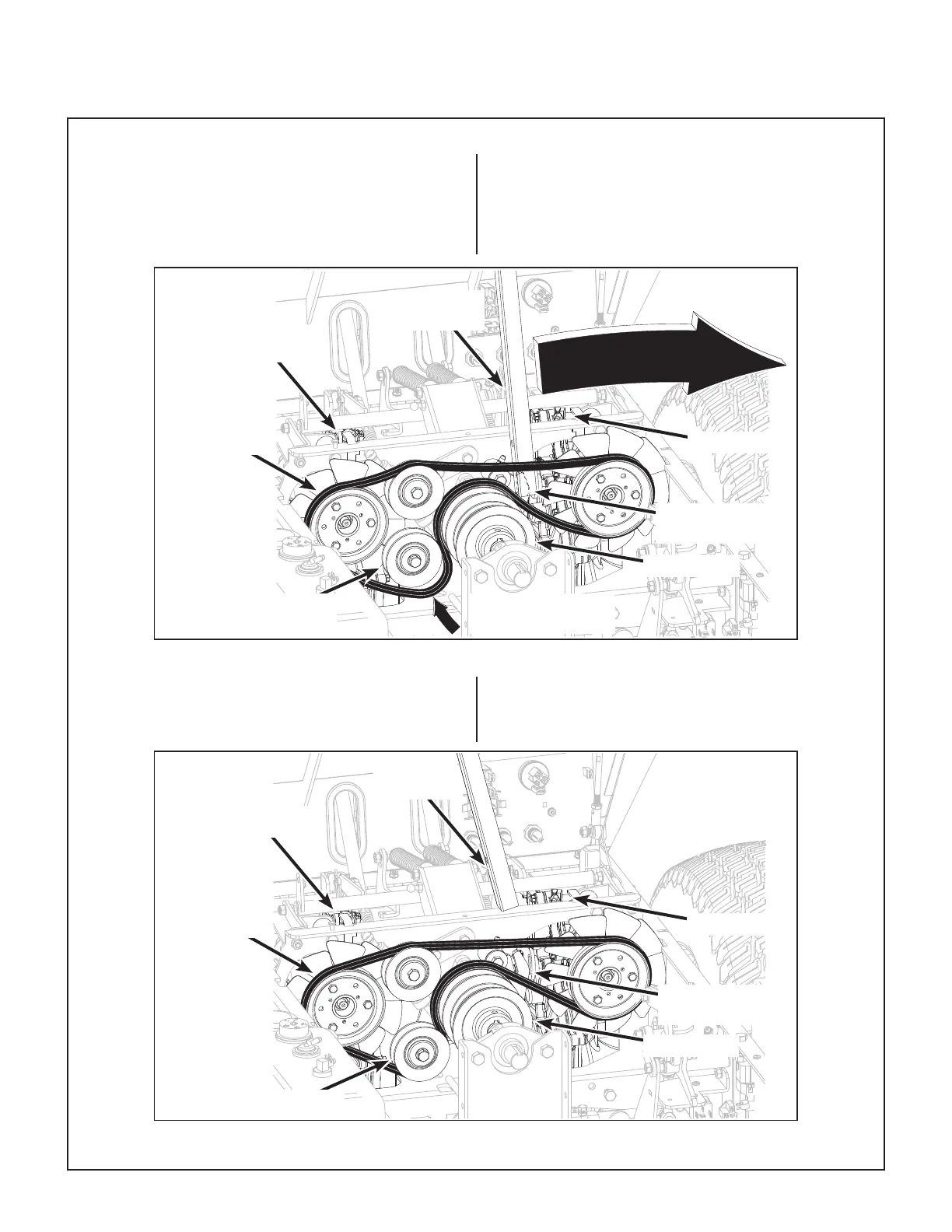

Ground Drive Belt Assembly (Disengaged)
Ground Drive Belt Assembly (Engaged)
Raise Idler Pulley to
Relax Belt
LH Transaxle
Ground Drive
Belt
RH Transaxle
Drive Pulley
Transmission Belt
Tensioner Arm
Deck Tilt
Bar
Belt Tightener
Idler Pulley
LH Transaxle
Ground Drive
Belt
RH Transaxle
Drive Pulley
Transmission Belt
Tensioner Arm
Deck Tilt
Bar
Idler Pulley
To Next Page
