Assembly Instructions
21

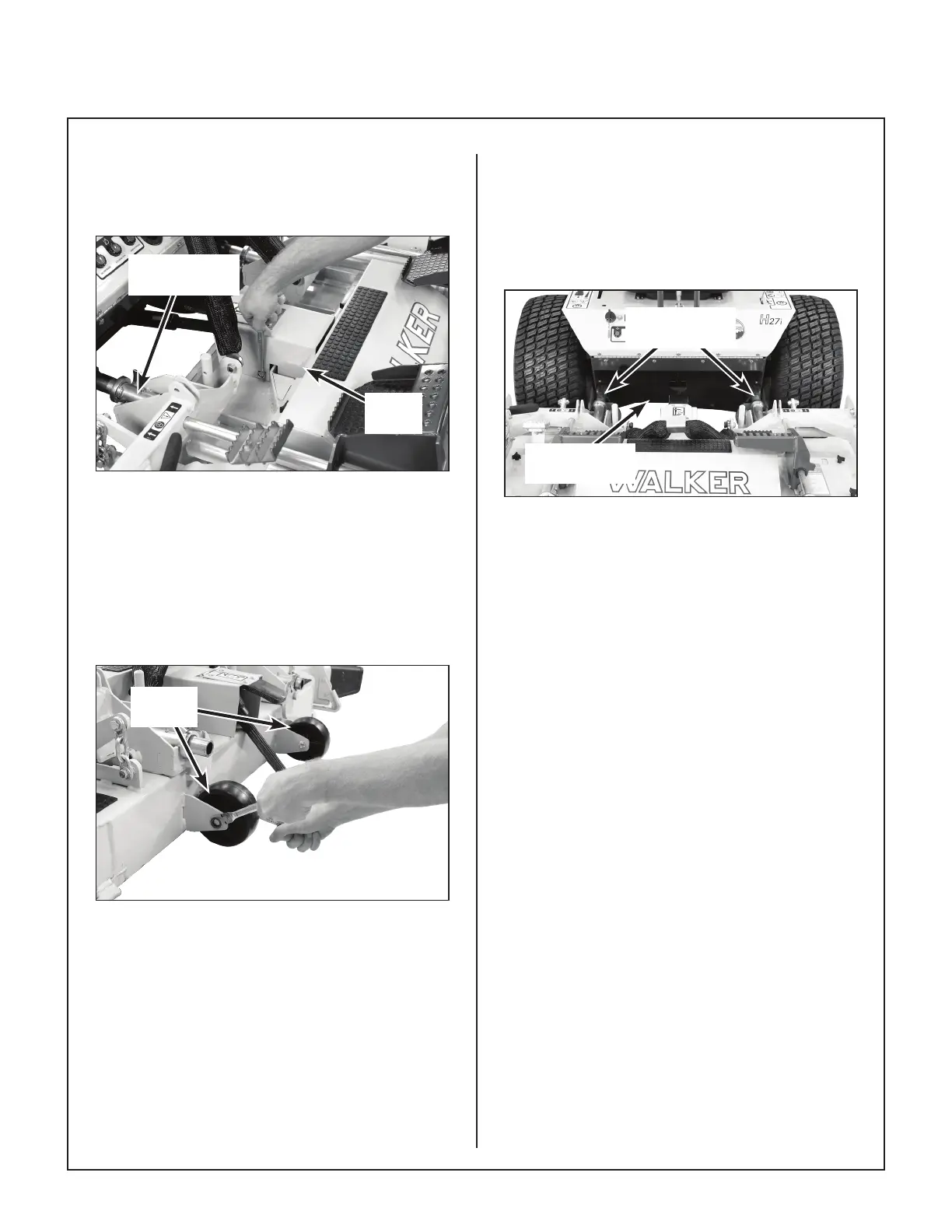

PTO Shaft Guard Installation
Position the shaft guard as shown and mount with
two (2) 1/420 x 1/2 in. bolts.
Attach
Guard
Carrier Frame
Tube Socket
PTO Shaft Guard Installation
Tilt-Up Roller Wheel Installation
Mount the two (2) tiltup roller wheels on the brack
ets on the rear skirt of the deck housing using the
axle spacer tube, 3/816 x 31/4 in. bolt and 3/816
Whiz Locknut. Tighten the bolt until the wheel rolls
freely, but is not loose.
Roller
Wheels
Roller Wheel Installation (Typical, DS60 Shown)
Mower Deck Installation on Tractor
Deck Installation
1. Lightly grease each deck support arm (2) on the
tractor. Refer to Mower Deck Installation
photo for location of deck support arm.
Deck Support
Arms
Rubber Debris
Guard
Mower Deck Installation
2. First, engage the LH deck carrier frame tube
socket on the LH tractor support arm and then
the RH arm into the RH tube socket. Slide the
deck onto the support arms and install lynch
pins to secure deck. Two (2) lynch pins are in
cluded in Owner’s Packet of materials.
3. Retract the springloaded quick disconnect ring
on the PTO Coupler and insert the Coupler
Installation Tool (provided in Owner’s Packet) as
shown in the PTO Coupler Installation Tool
photo.
NOTE: The Coupler Installation Tool is provid
ed for convenience, but is not required for in
stallation.
