Walker H27i - Page 40

Operating Instructions
36
2802-5
<15°
1. 2.
8600-5
2802-4
<15°
1. 2.

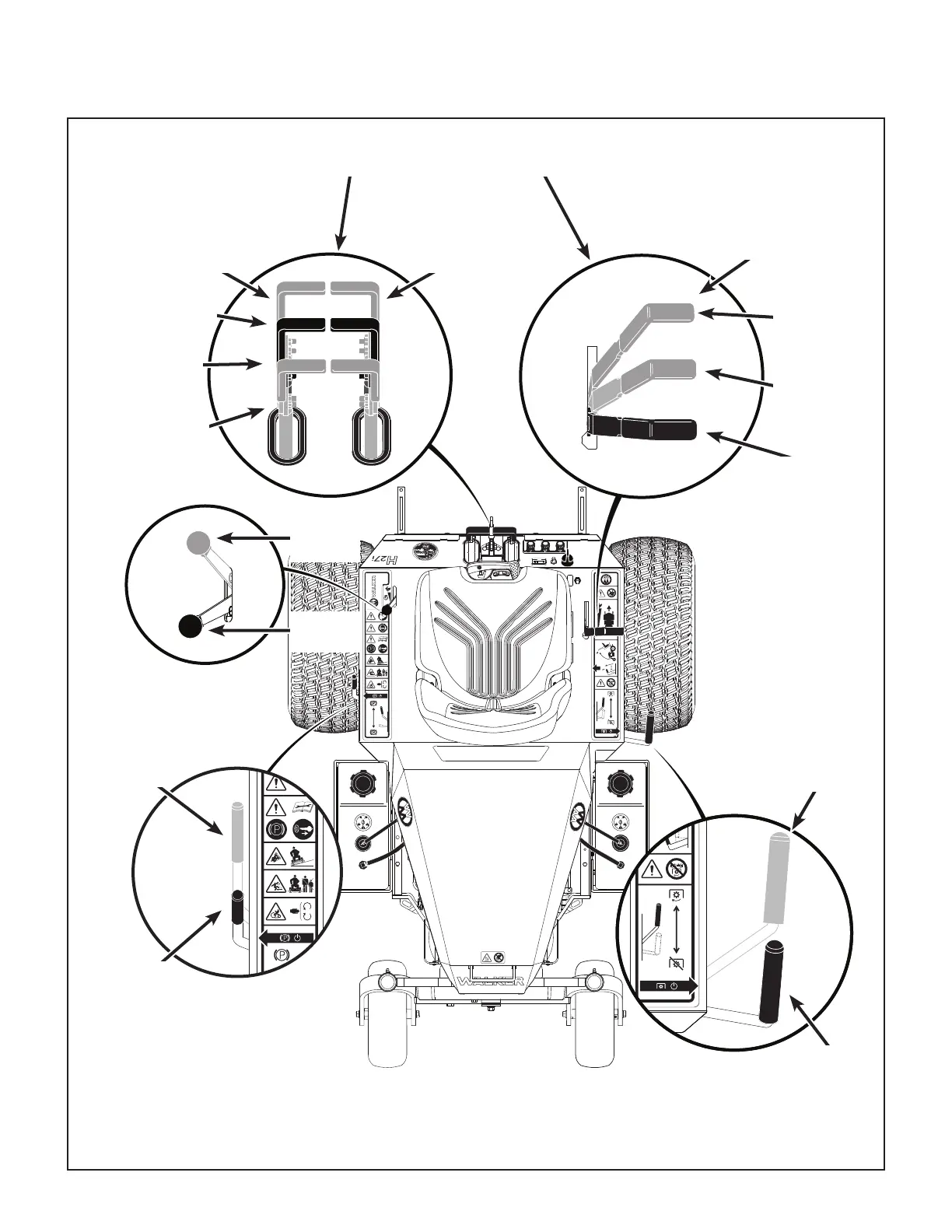

Operating Controls (Top View from Drivers Point of View)
BLADE CLUTCH
(PTO)
PARKING BRAKE
THROTTLE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
RIGHT WHEEL
STEERING LEVER
LEFT WHEEL
STEERING LEVER
Forward Position
(No Control Change)
NeutralPark
Position
Reverse Drive
Wheel Motion
Position
Idle
Position
Fast
Throttle
Position
Disengaged
Position
Disengaged
Position
Engaged
Position
Full Forward
Ground Speed
Position
Intermediate
Ground Speed
Position
NeutralPark
Position
Engaged
Position
FORWARD SPEED
CONTROL LEVER (FSC)
