Walker MBK23 - Page 13

Component Identication
9

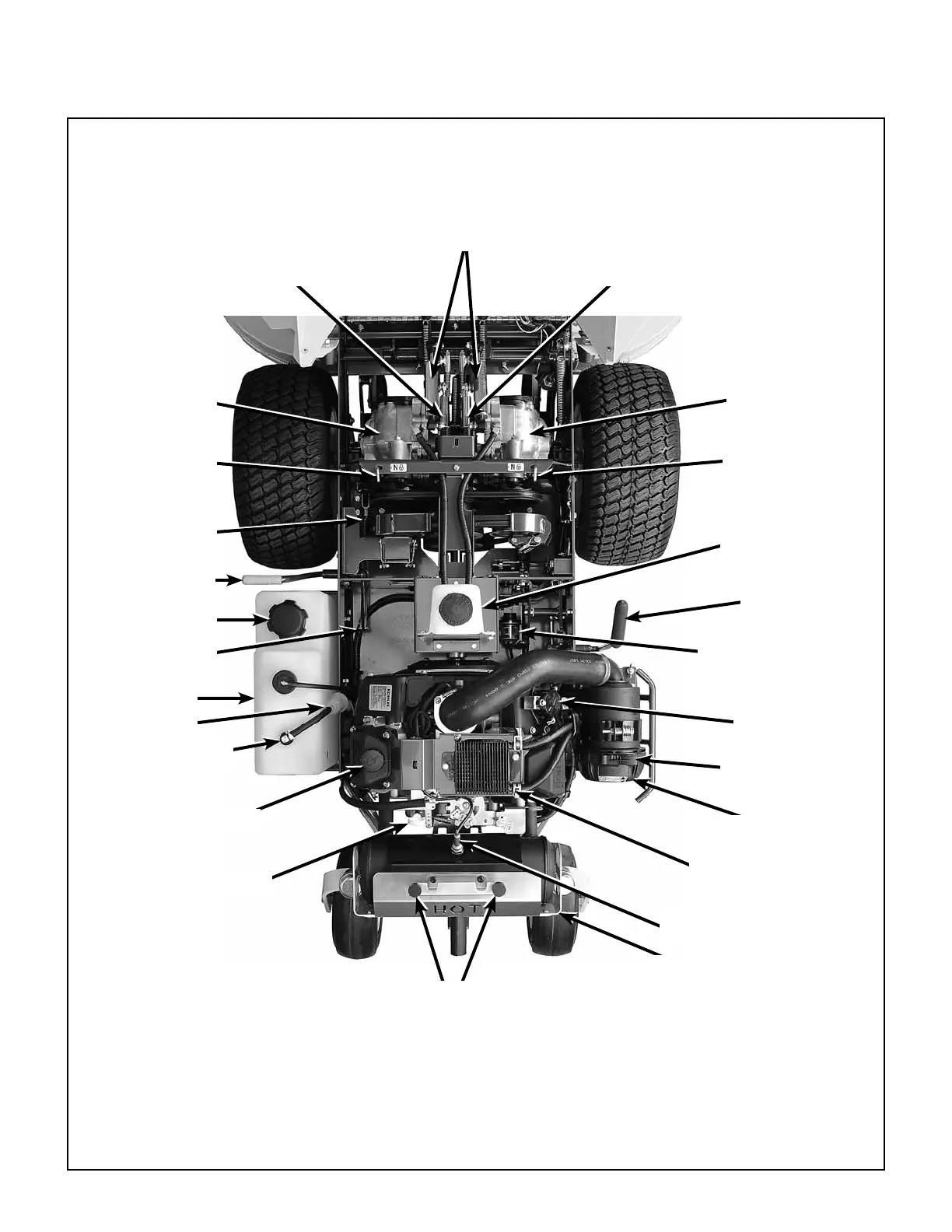

Top View (Engine Compartment)
RH Transaxle
RH Transaxle
Lockout Rod
PTO Clutch
Lever
Parking Brake
Fuel Pickup Line
Fuel Tank
Dipstick
Rubber Bumpers
(Body Support)
RH Transmission
Control Arm
LH Transmission
Control Arm
Steering Lever
Dampening Springs
LH Transaxle
LH Transaxle
Lockout Rod
Parking Brake
Linkage
Air Cleaner
Cover Latch
Air Cleaner Cover
Transaxle Oil
Expansion
Reservoir
Fuel Tank Cap
Parking Brake
Linkage
Fuel Filter
Oil Fill
Fuel Pump
Air Filter
Restriction Gauge
Mufer Heat
Shield
Oil
Cooler
Oxygen
Sensor
