Walker MBK23 - Ground Drive Belt

58
Maintenance Instructions REPLACING/REPAIRING
Ground Drive Belt
1. To remove the ground drive belt:
a. Depress the spring-loaded idler to relax
belt.
b. Slide belt off pulleys, then release the idler.

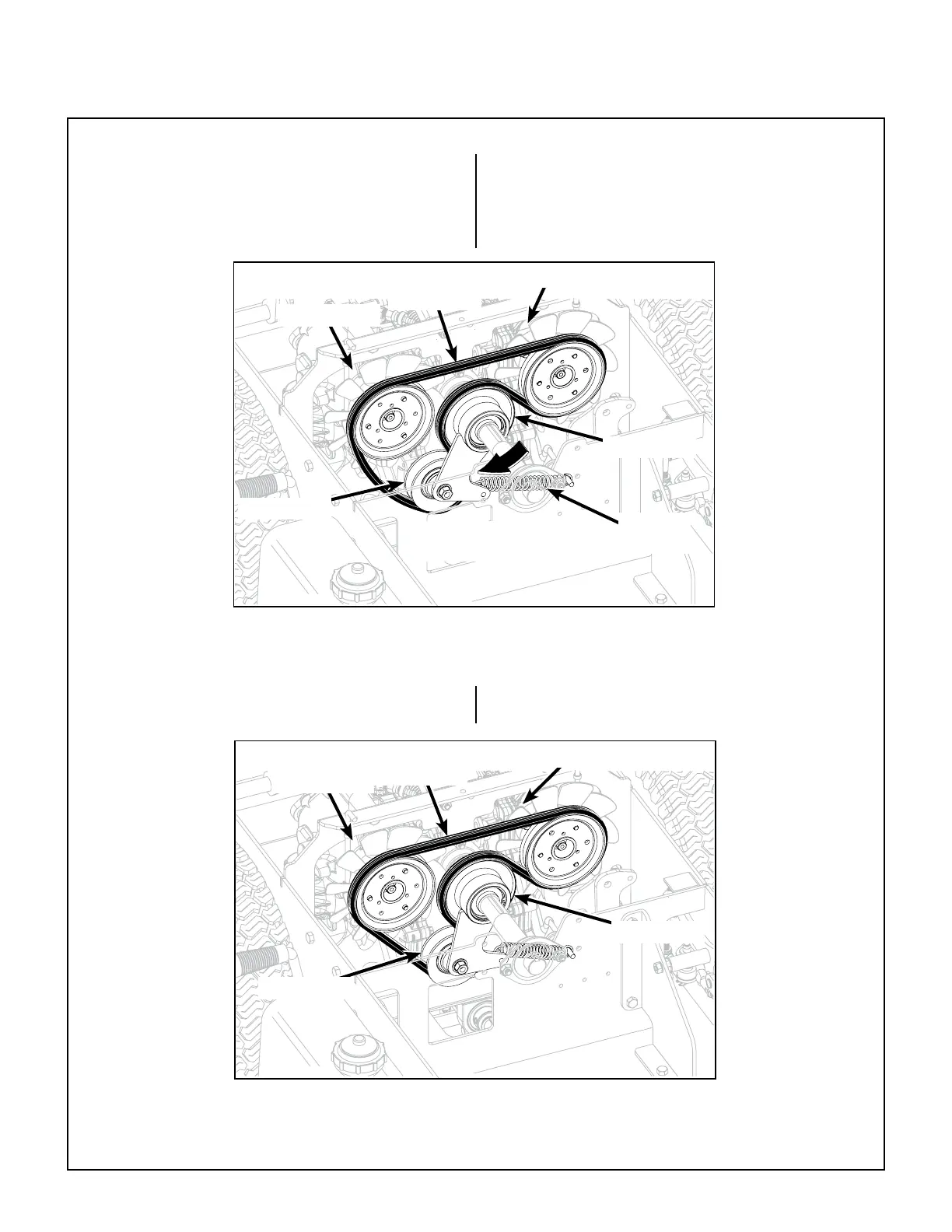

Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Engaged)
Depress Idler Pulley to
Relax Belt
Tension
Spring
LH Transaxle
RH Transaxle
Drive Pulley
Idler Pulley
Ground Drive
Belt
LH Transaxle
RH Transaxle
Drive Pulley
Idler Pulley
Ground Drive
Belt
