Walker MBK23 - Page 34

Operating Instructions
30
N
1. 2.
<15°

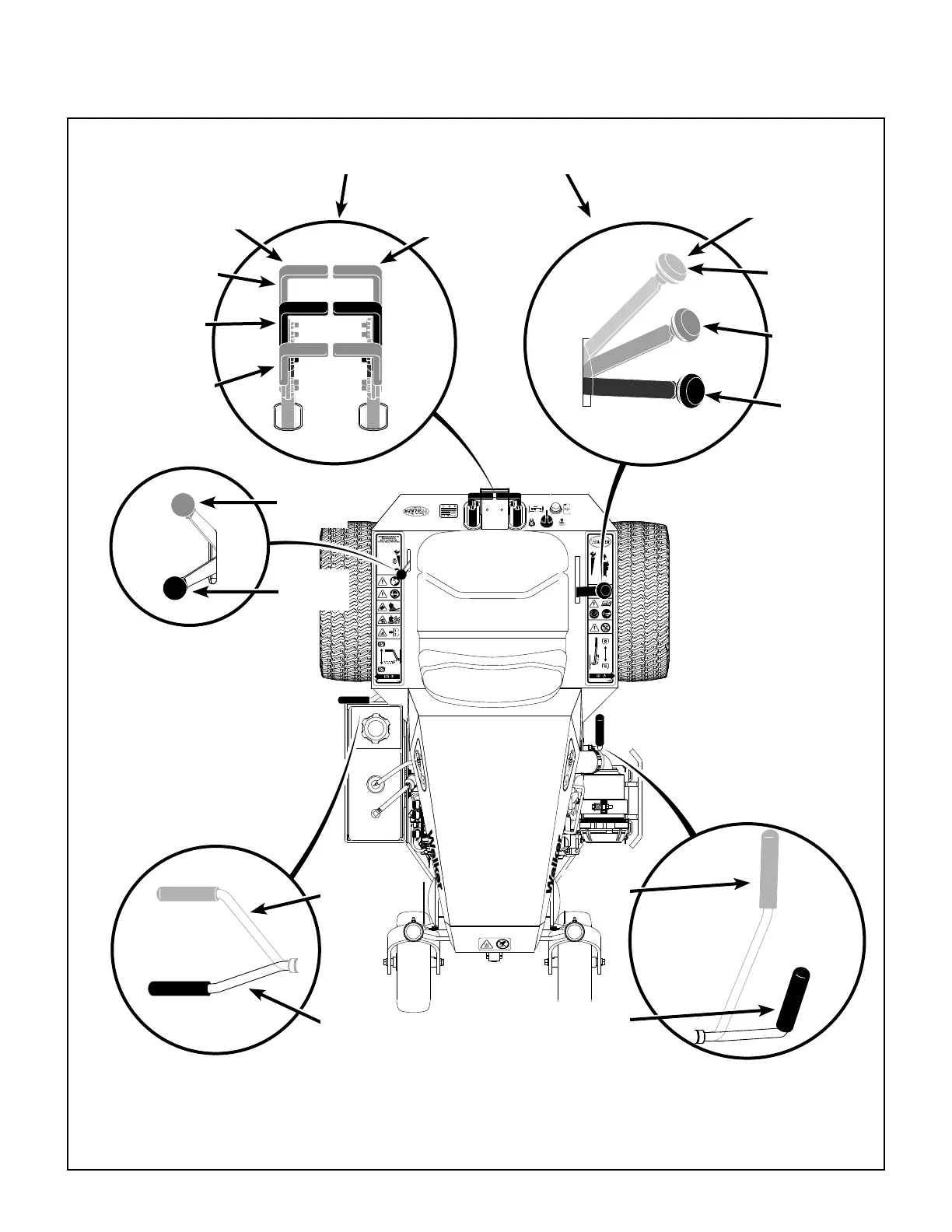

Operating Controls (Top View from Drivers Point of View)
BLADE CLUTCH
(PTO)
Forward Position
(No Control Change)
RIGHT WHEEL
STEERING LEVER
PARKING
BRAKE
THROTTLE
The Forward Speed Control also Establishes the Neutral-Park Position of the Steering Levers
Full Forward
Ground Speed
Position
Reverse Drive
Wheel Motion
Position
Neutral-Park
Position
Fast
Throttle
Position
Idle
Position
LEFT WHEEL
STEERING LEVER
FORWARD SPEED
CONTROL LEVER (FSC)
Neutral-Park
Position
Intermediate
Ground Speed
Position
Engaged
Position
Disengaged
Position
Engaged
Position
Disengaged
Position
