Walker MBK23 - Page 45

Maintenance Instructions LUBRICATION
41
3. Remove the dipstick and open oil drain valve
and drain the oil into a suitable container. Be
sure to allow ample time for complete drainage.

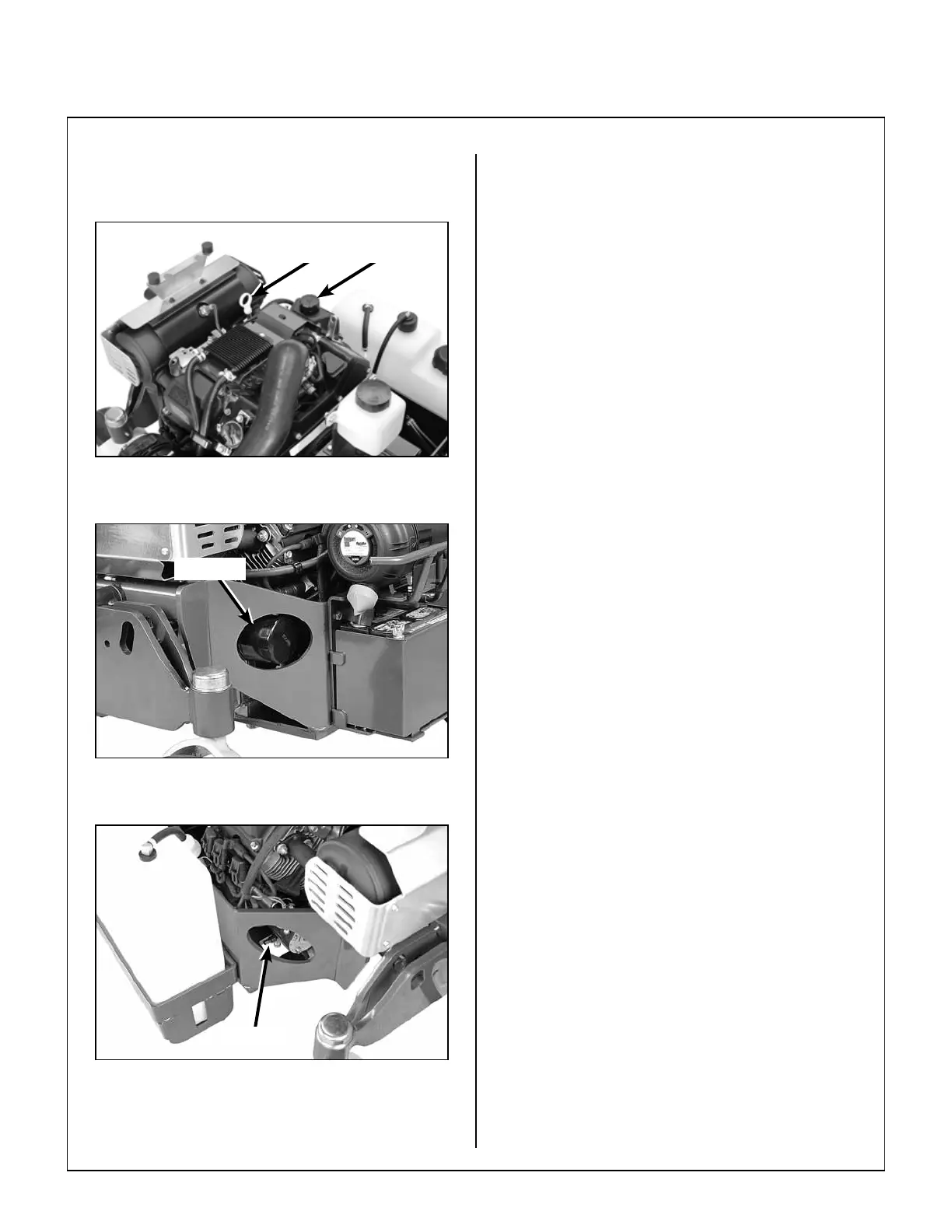

Dipstick Oil Fill
Dipstick and Oil Fill
(View from Above Right Side of Tractor)
Oil Filter
Oil Filter Location
(View from the Rear Right Side of Tractor)
Oil Drain
Oil Drain Location
(View from the Rear Left Side of Tractor)
4. Before removing the oil lter, clean the area
around the lter to keep dirt and debris out of
the engine.
5. Remove the old oil lter and wipe off the lter
mounting surface on the engine.
6. Apply a thin coating of clean oil to the rubber
gasket on the replacement oil lter.
IMPORTANT: Use ONLY oil lters from the en-
gine manufacturer (Kohler 12-050-01). After-
market oil lters may not seal properly and/or
may not have the correct pressure relief valve
for proper lubrication.
7. Install the new oil lter on the engine. Turn the
lter clockwise until the rubber gasket contacts
the sealing surface, then tighten an additional
1/2 turn.
8. Close the oil drain valve and tighten until snug.
Do not overtighten.
9. Fill the crankcase with new, clean oil. Use only
crankcase lubricants recommended by the en-
gine manufacturer. Refer to
Specications in
this manual or the engine owner’s manual. Use
the recommended oil viscosity for the expected
ambient temperature. Oil with the correct vis-
cosity will aid starting in cold weather and as-
sure proper lubrication in hot weather. Fill up
to, but not above, the “F” mark on the dip-
stick. Crankcase capacity is 1.85 quarts (1.75
liters) plus 1/2 pint (0.24 liters) for the new oil
lter.
IMPORTANT: Check the dipstick reading be-
fore adding the last 1/2 pint of oil and ll only to
the “F” mark. DO NOT overll the crankcase
(oil above “F” mark) as this CAN result in en-
gine overheating, loss of power, and possible
engine damage.
10. Start the engine and check for oil leaks around
the oil lter. Stop the engine, recheck the oil
level, and add oil if necessary. (When the en-
gine is rst operated with a new oil lter, the oil
level drops slightly as the lter is lled with oil.)
