Maintenance Instructions LUBRICATION
44
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 DeckCasterWheelForkPivot Grease 2
2 DeckCasterWheelBearing Grease 2
3 BladeSpindle Grease
Δ
 3
4 PivotAssembly,Tilt-UpDeck Grease 4
5 DeckSupportArmSocket Grease 2
6 RightAngleGearbox Oil*
Δ
 1
7 UniversalJointShaftAssembly Grease** 1
8 DollyWheelRetract Oil
Δ
 1
  LeverandLinkage 
9 DollyWheelPivot Grease 1
10 IdlerArmPivot Grease
Δ
 1
11 TeeGearbox,Deck Oil* 1
12 BladeDriveGearbox Oil* 2
13 SteeringLeverPivot Grease 2
14 Deck-to-PTOCoupling Grease 1 
  (GreaseSplineSlideArea) 
15 UniversalJointTubeAssembly Grease** 1
16 DeckSupportArmPivot Grease 2
17 FSCLeverPivot Grease 1
18 BodyLatchPivot Oil 1
19 PTOClutchLeverPivot Grease 1
20 TransaxleOilReservoir Oil/20W-50 1
21 PTOBeltTightenerPivot Grease 1
22 ClutchActuatorPushRod Grease 1
23 TailWheelCasterForkPivot Grease 2
24 RearAxlePivot Grease 1
25 RearWheelBearing Grease 2
26 EngineDipstick Oil*** 1
27 ThrottleControlCableEnds Oil 2
28 EngineOilFiller Oil*** 1
29 ParkingBrakeClevis Oil 2
30 ParkingBrakeLever Grease 1
31 ThrottleControlPivot Oil 1
* Gearboxesarepermanentlylubricatedandsealedrequiring
noscheduledlubrication.Oillevelshouldbecheckedonly
whenanoilleakisnoted.
** Greaseeveryeight(8)hours.
*** RefertoEngine Oillocatedonpage40.
Δ
 BeltDrivenDecksOnly
NOTE:DSD42 and DSD52Tilt-UpDecks are shown for refer-
ence.ForotherDeckLubricationPoints,refertoDeck
and Carrier Frame Illustrated Parts Manual.

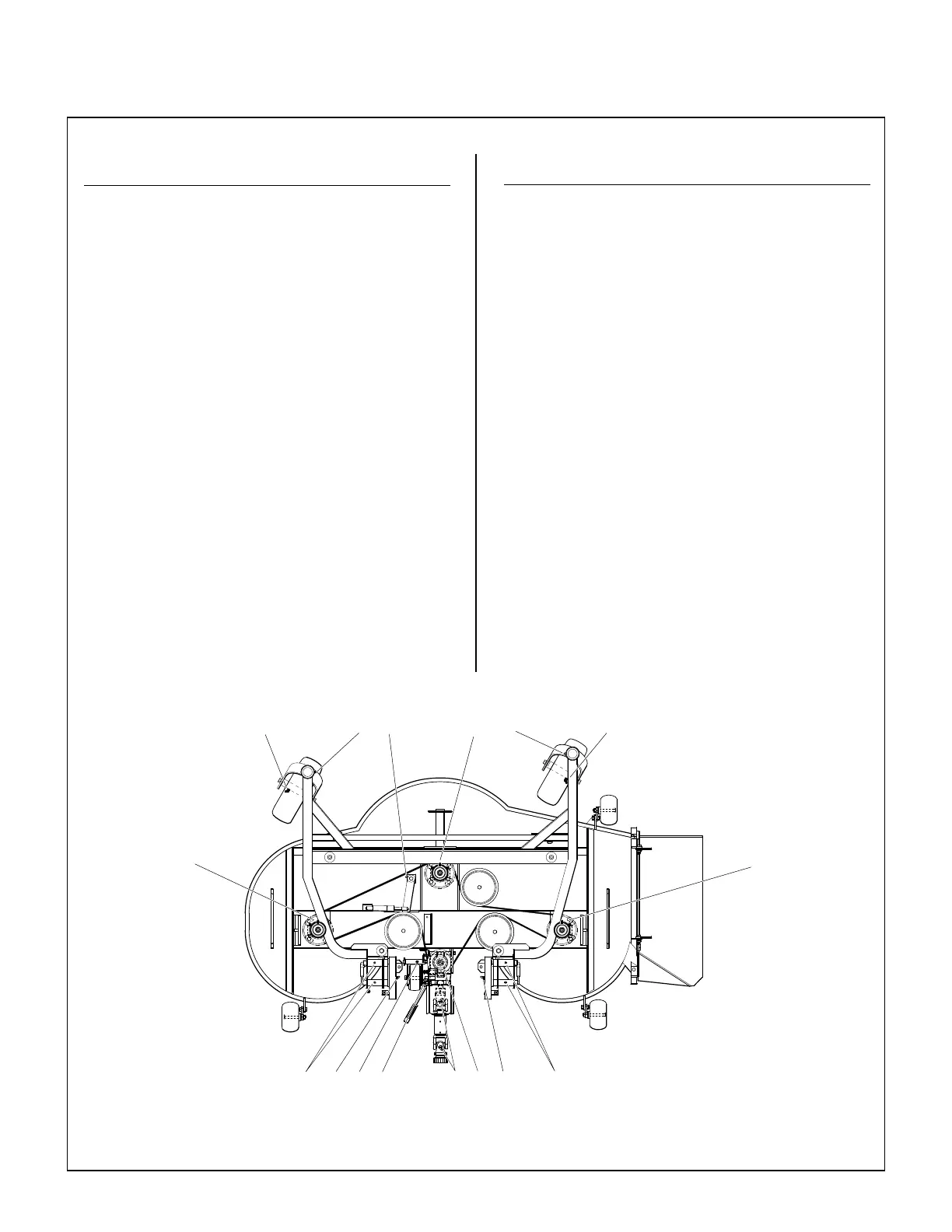

Lubrication Points for Optional Belt Driven Decks (DSD52 Shown)
