Walker S14i - Cleaning; Engine Air Cleaner System; Kohler Quad-Clean Air Cleaner

Maintenance Instructions CLEANING
57
CLEANING
CAUTION
If a pressure washer is used on the ex-
posed working parts, avoid water on the
electrical parts and the engine cooling
system.
Engine Air Cleaner System
Kohler Quad-Clean™ Air Cleaner
An engine mounted Kohler Quad-Clean™ air clean-
er provides the air ltering function. The paper lter
element slides over an outlet tube on the air cleaner
base with radial sealing action, reducing the possi-
bility of dust leaks due to improper lter installation.
Intake design and internal ba󰀪ing in the cover pro-
vide dust separation and automatic precleaning ac-
tion. In addition to the paper lter, an oiled foam
precleaner sleeve surrounds the lter and provides
extra ltering action.
IMPORTANT: Use only Kohler air lter and pre-
cleaner for replacement (Kohler Filter P/N 17-083-
21-S and Precleaner P/N 17-083-15-S). Aftermar-
ket lters may not seal properly or lter e󰀩ciently.
Cover
Latch
Cover
Latch
Cover
Precleaner and
Filter Element
Base

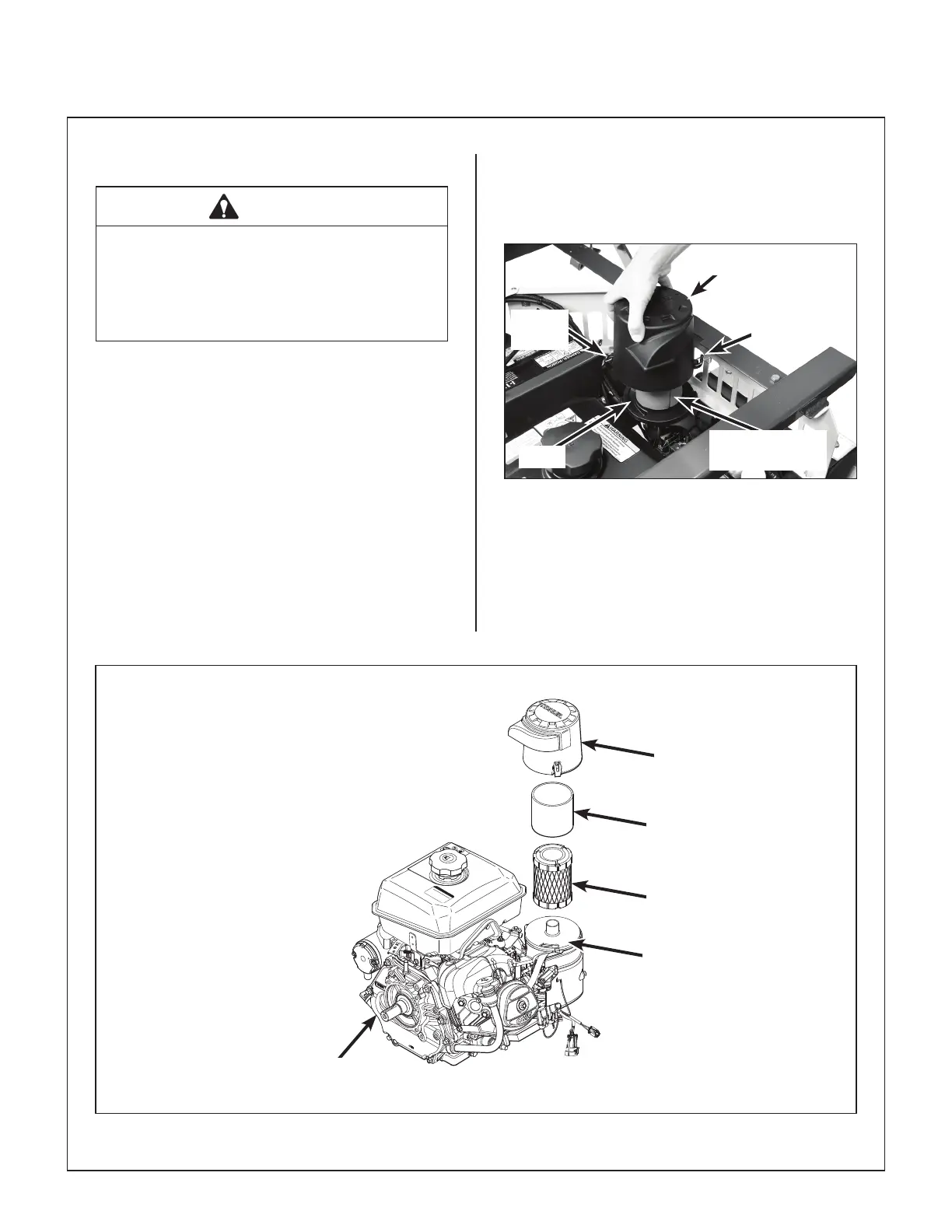

Air Cleaner Components
(Shown with Cover Being Removed)
IMPORTANT: The Kohler air cleaner uses a dry
paper-type air lter element. NEVER apply oil to the
paper element.
Engine Air Cleaner System Components
8600-12
IMPORTANT
10% Ethanol maximum
15% MTBE maximum
87 Octane or higher (R+M)/2 (AKI)
90 Octane min (RON)
5082-5
Unleaded Gasoline Only
Cover
Engine
Paper Filter
Element
Precleaner Filter
Air Cleaner
Base
