Maintenance Instructions REPLACING/REPAIRING
Ground Drive Belt
1. To remove the ground drive belt:
a. Raise the spring-loaded idler pulley to relax
belt.
b. Slide belt o pulleys, then slowly release
the idler pulley.

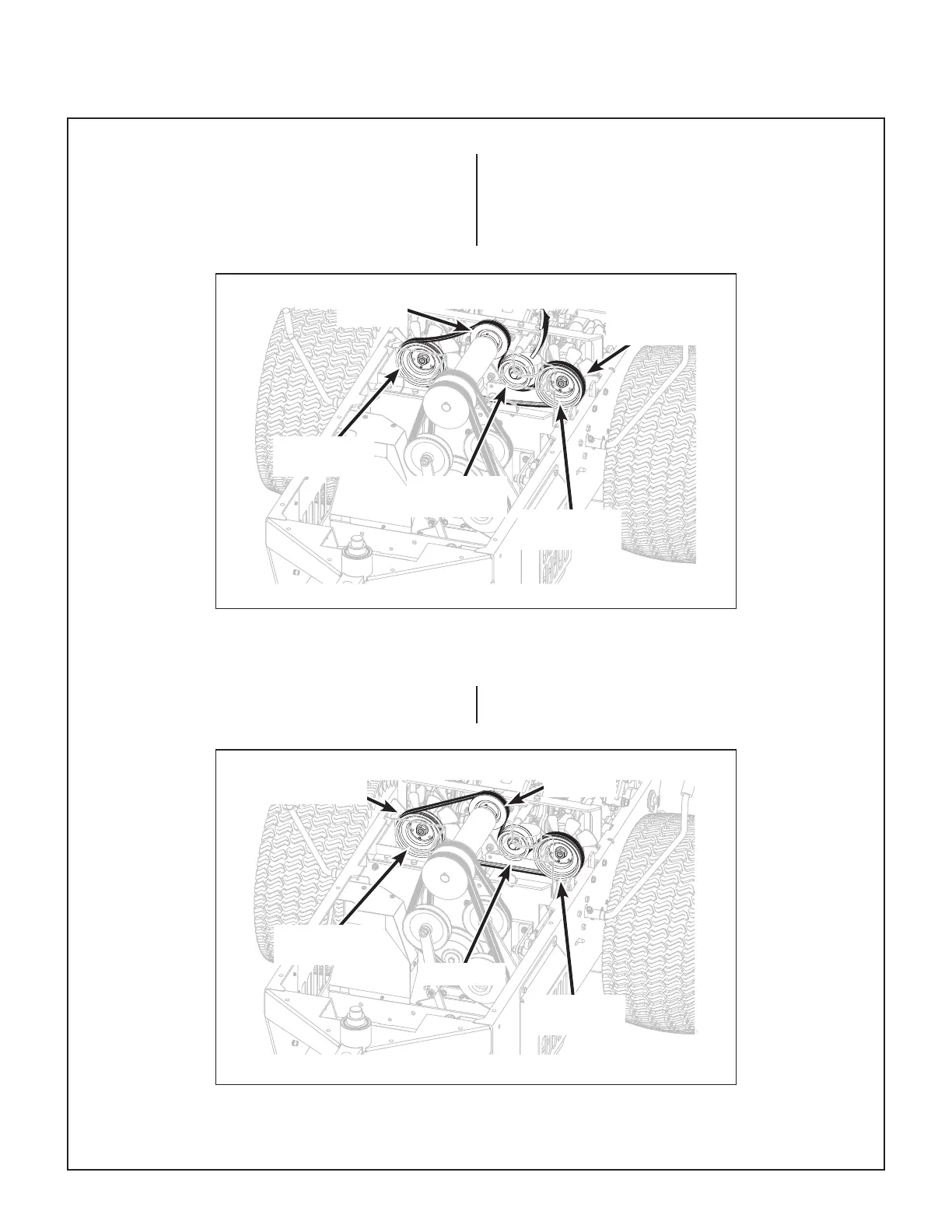

Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Engaged)
Raise Idler Pulley to Relax Belt
Drive
Pulley
LH Transaxle
Drive Pulley
Belt Tightener
Idler Pulley
Ground Drive
Belt
RH Transaxle
Drive Pulley
Drive
Pulley
Ground Drive
Belt
LH Transaxle
Drive Pulley
RH Transaxle
Drive Pulley
Idler Pulley
