Walker S14i - Engine Belt

69
Maintenance Instructions REPLACING/REPAIRING
Engine Belt
1. To remove the engine belt:
a. Relax belt by pushing the spring-loaded
idler pulley.
b. Roll the belt o󰀨 the pulleys and remove the
belt, then slowly release the idler.

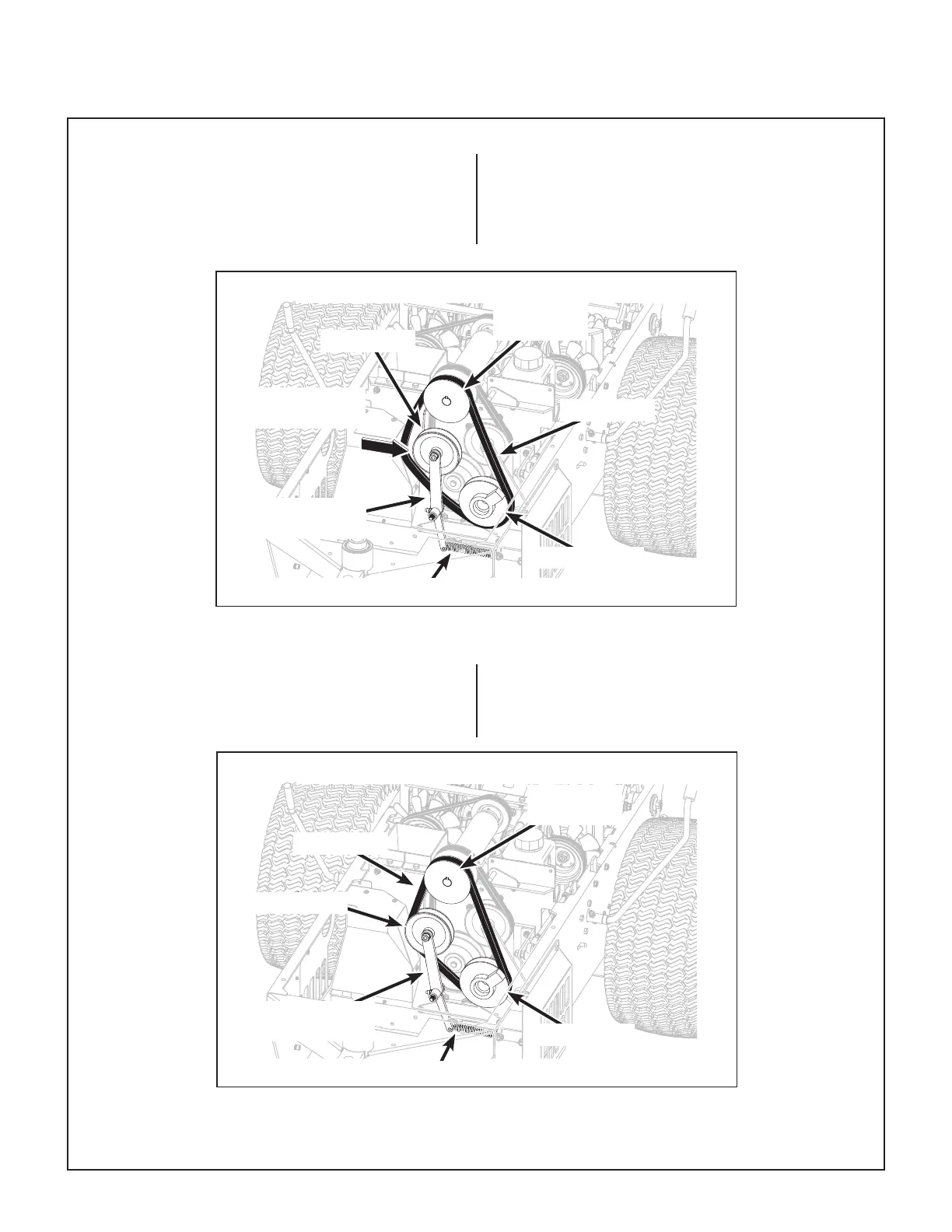

Engine Belt (Disengaged)
Engine Belt (Engaged)
2. To replace the engine belt:
a. Reverse the removal procedure to replace
the engine belt.
Engine Idler
Arm
Idler Pulley
Engine Pulley
Tension Spring
Engine Belt
Compound
Pulley
Push Idler Pulley
to Relax Belt
Engine Belt
Compound
Pulley
Idler Pulley
Engine Idler
Arm
Engine Pulley
Tension Spring
