Operating Instructions
53
Power Dump Option
When equipped with the optional power dump sys-
tem, the operator dumps the catcher while sitting in
the seat. A toggle switch operating a power ram is
used to raise and lower the catcher. The back door
automatically opens and closes during the dump
cycle.
Hold the toggle switch UP or DOWN to RAISE or
LOWER the catcher. When the catcher reaches the
full raised or lowered position, the power ram clutch
will make a ratcheting sound. Release the toggle
switch as soon as this sound is heard. DO NOT
operate the ram with the clutch ratcheting for an
extended time as this will cause extra wear on the
clutch mechanism.
CAUTION
The operator should be in the seat and by-
standers stay clear when the power dump
is operating. The power dump is used
ONLY for tailgate dumping. Do not attempt
to use the optional dump bag or any other
bag with the power dump.
NOTE: If grass tends to hang up in the catcher
after raising the catcher with the power dump, “jig-
gle” the steering levers and make the tractor bounce
a little to unstick the grass and make it slide out of
the catcher.
NOTE: With the power dump mechanism in the
normal operating position (catcher down), the catch-
er can be manually raised for access to the engine
and the catcher can be manually dumped.
Hi-Dump
®
Option
When equipped with the optional Hi-Dump
®
system,
the operator raises and dumps the catcher while sit-
ting in the seat. Two toggle switches operate inde-
pendent hydraulic cylinders to raise and lower the
catcher. The back door automatically opens and
closes during the dump cycle.
NOTE: The ignition switch must be in the ON (RUN)
position for the Hi-Dump
®
system to operate.

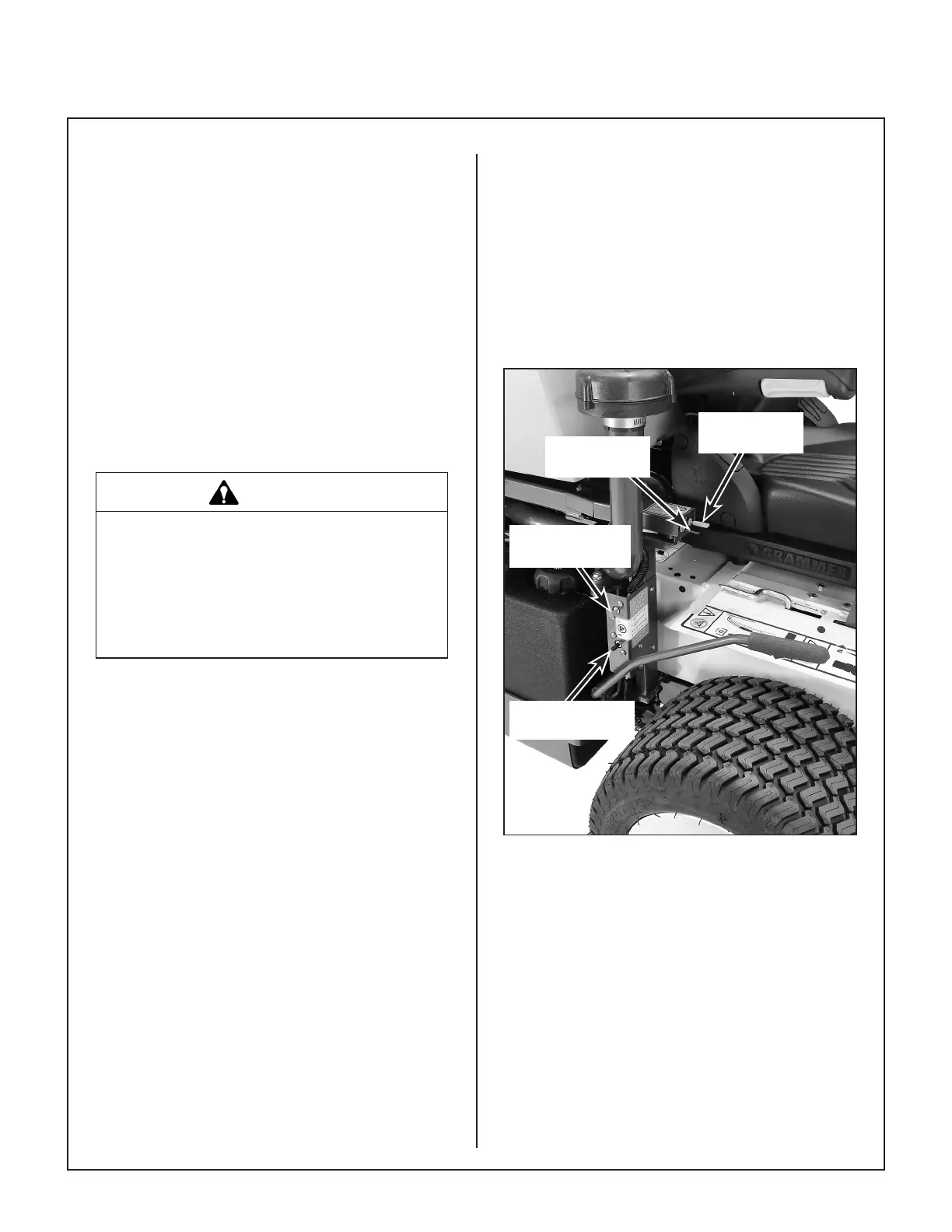

Toggle Switch
(Lift)
Toggle Switch
(Dump)
(+) Auxiliary
Power Terminal
(-) Auxiliary
Power Terminal
Lift/Dump Control Switches and
Auxiliary Power Terminals
Hold the Lift toggle switch UP or DOWN to RAISE
or LOWER the catcher. Hold the Dump toggle
switch UP to DUMP the catcher and DOWN to return
to the normal operating position. The catcher may
be dumped at any raised position (Normal Operat-
ing - Intermediate - Fully Raised).
