Walker T Series - Adjustments; Transmission Control

81
Maintenance Instructions REPLACING/REPAIRING
GHS Blower Drive Belt
1. Remove the GHS blower drive belt tension by
depressing the idler pulley on the tightener arm.
Roll the belt off the blower pulley.

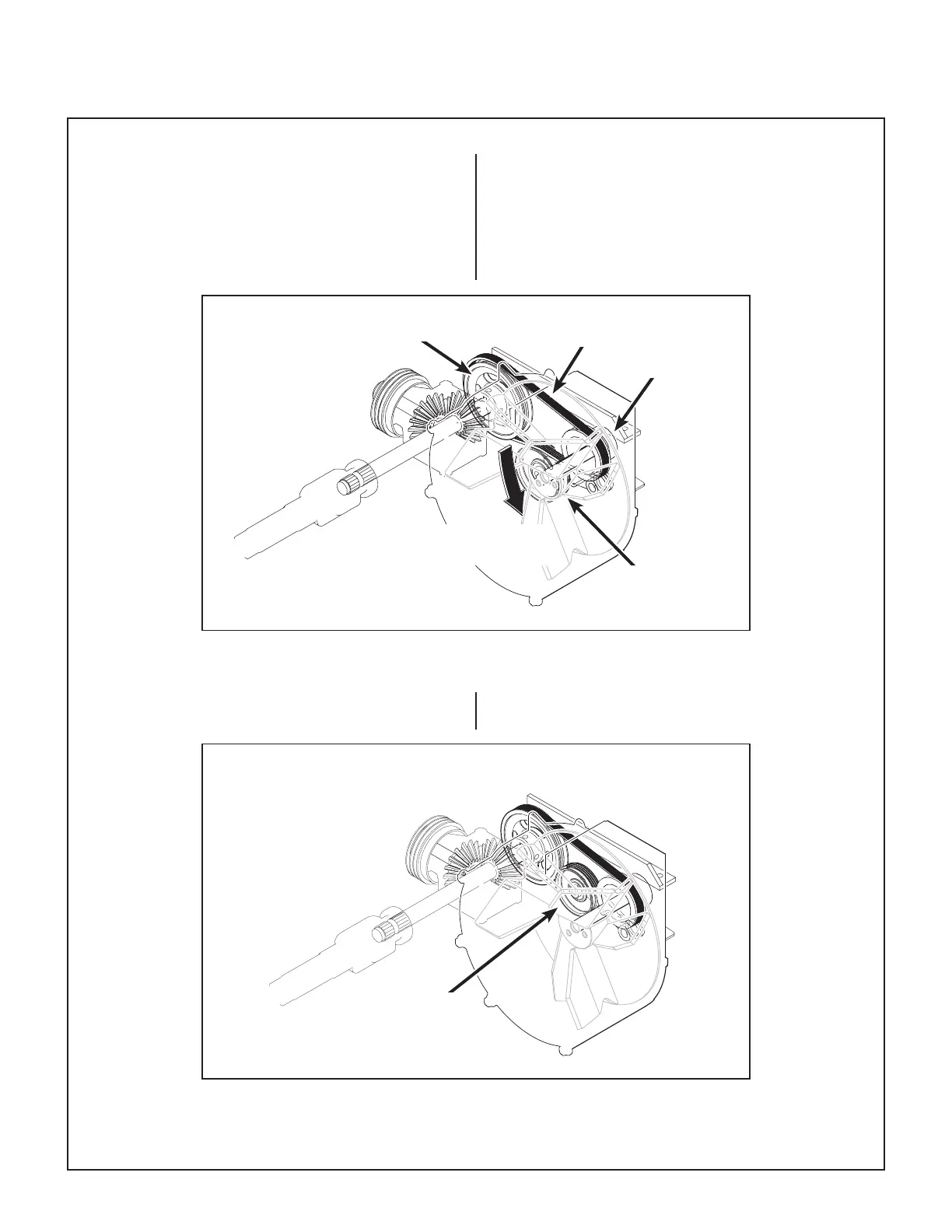

GHS Blower Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the GHS blow-
er drive belt.
GHS Blower Drive Belt Assembly (Engaged)
Depress Idler Pulley
Down to Relax Belt
GHS Blower
Drive Belt
Blower Drive
Pulley
Blower
Pulley
Belt Tightener
Idler Pulley
(Disengaged)
Belt Tightener
Idler Pulley
(Engaged)
