Maintenance Instructions REPLACING/REPAIRING
REPLACING/REPAIRING
DANGER
To prevent accidental starting of the en-
gine when replacing parts or repairing the
machine, remove the key from the ignition
switch and disconnect the spark plug
wires.
IMPORTANT: ALWAYS use genuine factory re-
placement parts. Substitute parts CAN result in
product malfunction and possible injury to the op-
erator and/or others.
Drive Belts
There are four (4) individual belts on GHS models
or three (3) belts on SD models:
● Jackshaft Drive Belt
● Engine PTO Drive Belt (3 Groove Power Band)
● GHS Blower Drive Belt (GHS Model Only)
● Hydrostatic Ground Drive Belt
The belts may be removed and replaced using the
procedures described on the following pages.
Belt Locations

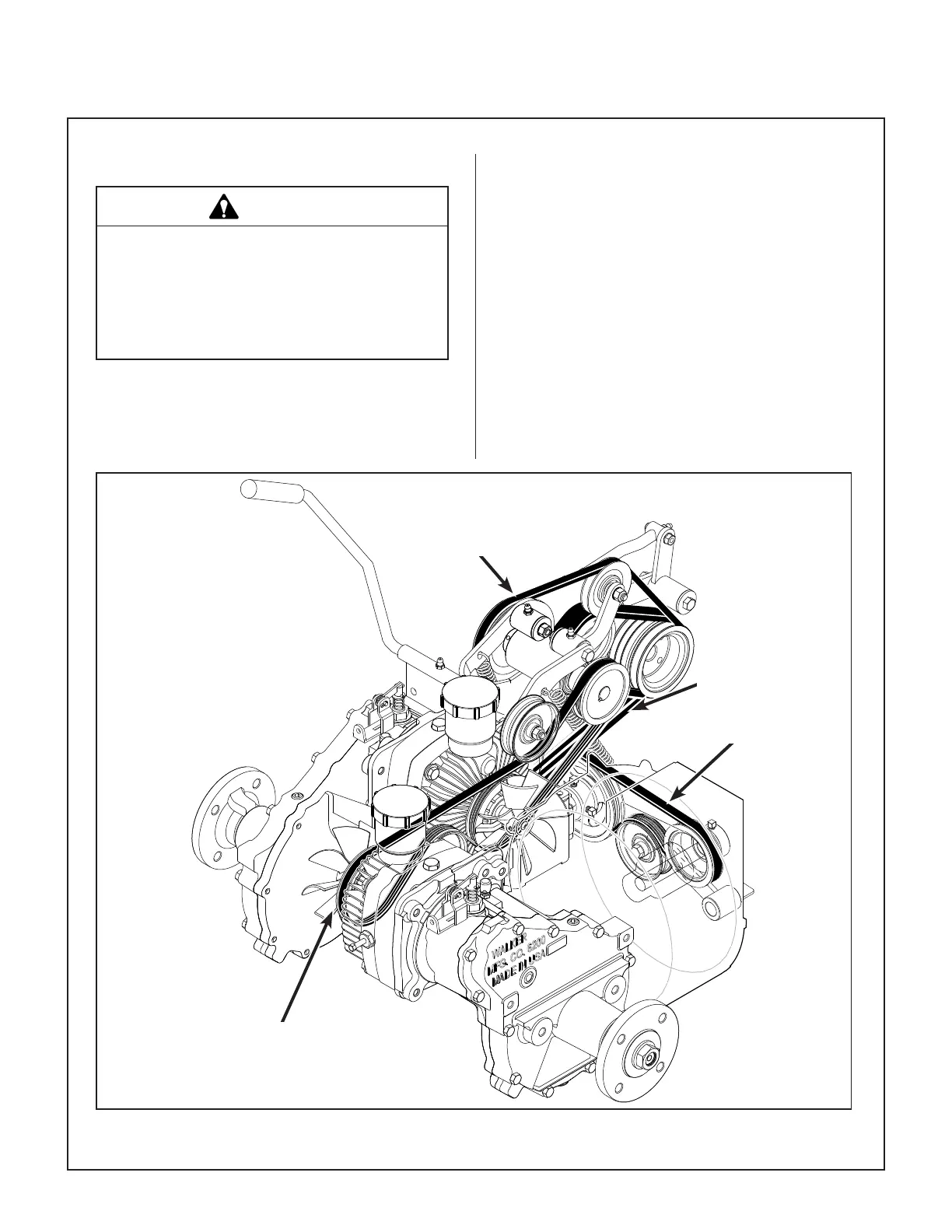

Jackshaft
Drive Belt
Engine PTO
Belt
GHS Blower Belt
(GHS Model Only)
Hydrostatic Ground
Drive Belt
