FURIOUS
320
Quick Start Guide

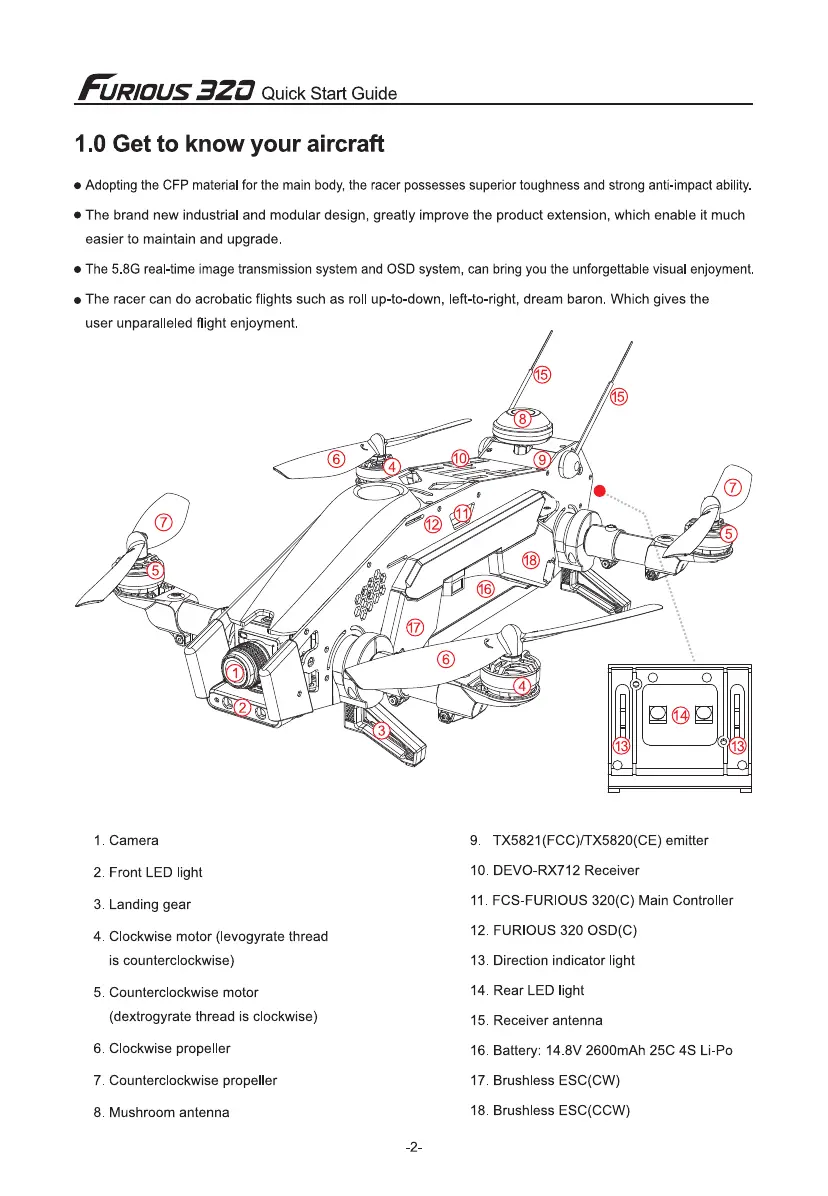

1.0 Get to know your aircraft
•
Adopting the CFP material for the main body, the racer possesses superior toughness and strong anti-impact ability.
•
The brand new industrial and modular design, greatly improve the product extension, which enable it much
easier to maintain and upgrade.
•
The 5.8G real-time image transmission system and OSD system, can bring you the unforgettable visual enjoyment.
•
The racer can do acrobatic flights such as roll up-to-down, left-to-right, dream baron. Which gives the
user unparalleled flight enjoyment.
1.
Camera
2.
Front LED light
3.
Landing gear
4.
Clockwise motor (levogyrate thread
is counterclockwise)
5.
Counterclockwise motor
(dextrogyrate thread is clockwise)
6.
Clockwise propeller
7.
Counterclockwise propeller
8.
Mushroom antenna
9.
TX5821(FCC)/TX5820(CE) emitter
10.
DEVO-RX712 Receiver
11.
FCS-FURIOUS 320(C) Main Controller
12.
FURIOUS 320 OSD(C)
13.
Direction indicator light
14.
Rear LED light
15.
Receiver antenna
16.
Battery: 14.8V 2600mAh 25C 4S Li-Po
17.
Brushless ESC(CW)
18.
Brushless ESC(CCW)
-2-
