FURIOUS 320
Quick Start Guide

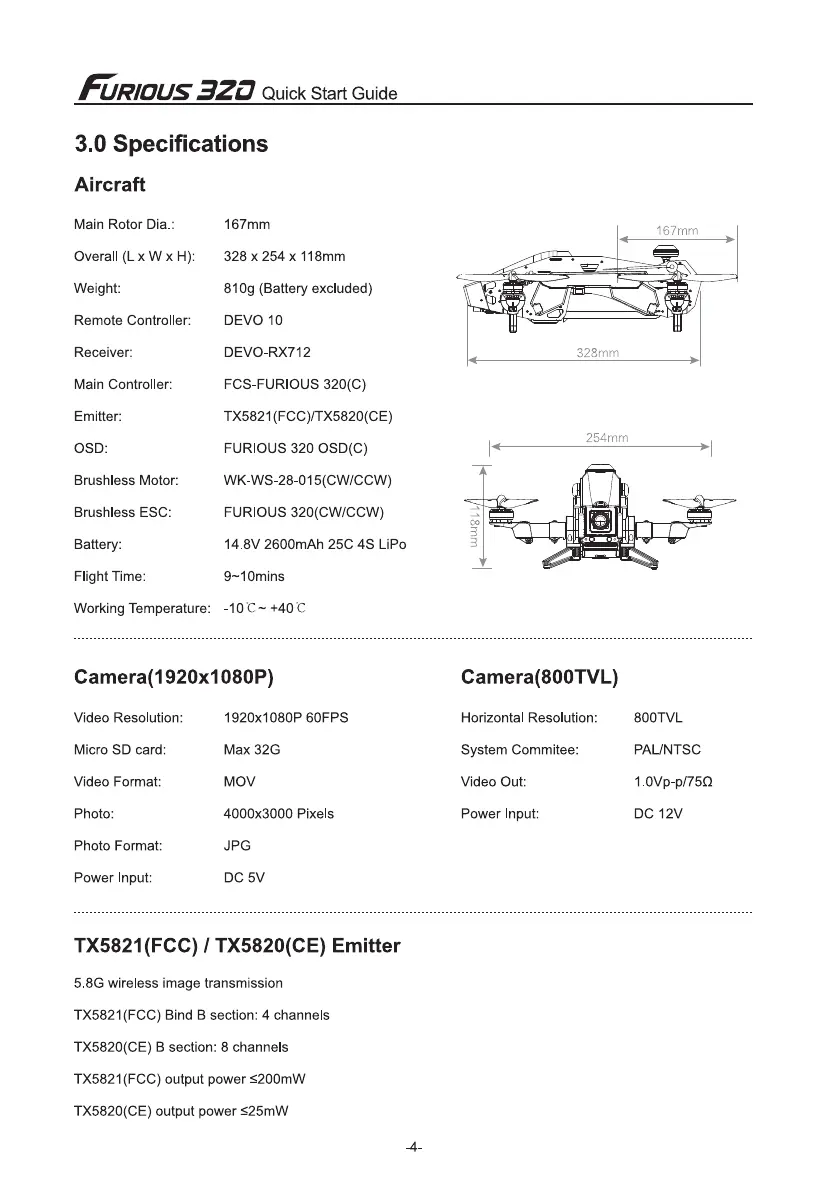

3.0 Specifications
Aircraft
Main Rotor Dia.:
167mm
167mm
Overall (L x W x H):
Weight:
Remote Controller:
Receiver:
Main Controller:
Emitter:
OSD:
Brushless Motor:
Brushless ESC:
Battery:
Flight Time:
Working Temperature:
328 x 254 x 118mm
810g (Battery excluded)
DEVO 10
DEVO-RX712
FCS-FURIOUS 320(C)
TX5821(FCC)/TX5820(CE)
FURIOUS 320 OSD(C)
WK-WS-28-015(CW/CCW)
FURIOUS 320(CW/CCW)
14.8V 2600mAh 25C 4S LiPo
9-10mins
-iot-+4or
328mn
254mm
Camera(1920x1080P)
Camera(800TVL)
Video Resolution:
1920x1080P 60FPS
Horizontal Resolution:
800TVL
Micro SD card:
Max 32G
System Commitee:
PAUNTSC
Video Format:
MOV
Video Out:
1.0Vp-p/750
Photo:
4000x3000 Pixels
Power Input:
DC 12V
Photo Format:
JPG
Power Input:
DC 5V
TX5821(FCC) / TX5820(CE) Emitter
5.8G wireless image transmission
TX5821(FCC) Bind B section: 4 channels
TX5820(CE) B section: 8 channels
TX5821(FCC) output power 5200mW
TX5820(CE) output power 525mW
-4-
