Walkera furious 320 - Assembly; Install Propellers; Battery Installation

Front
CCW propeller  I CW propeller
(a)) 
(a)
CCW propeller
FURIOUS 320

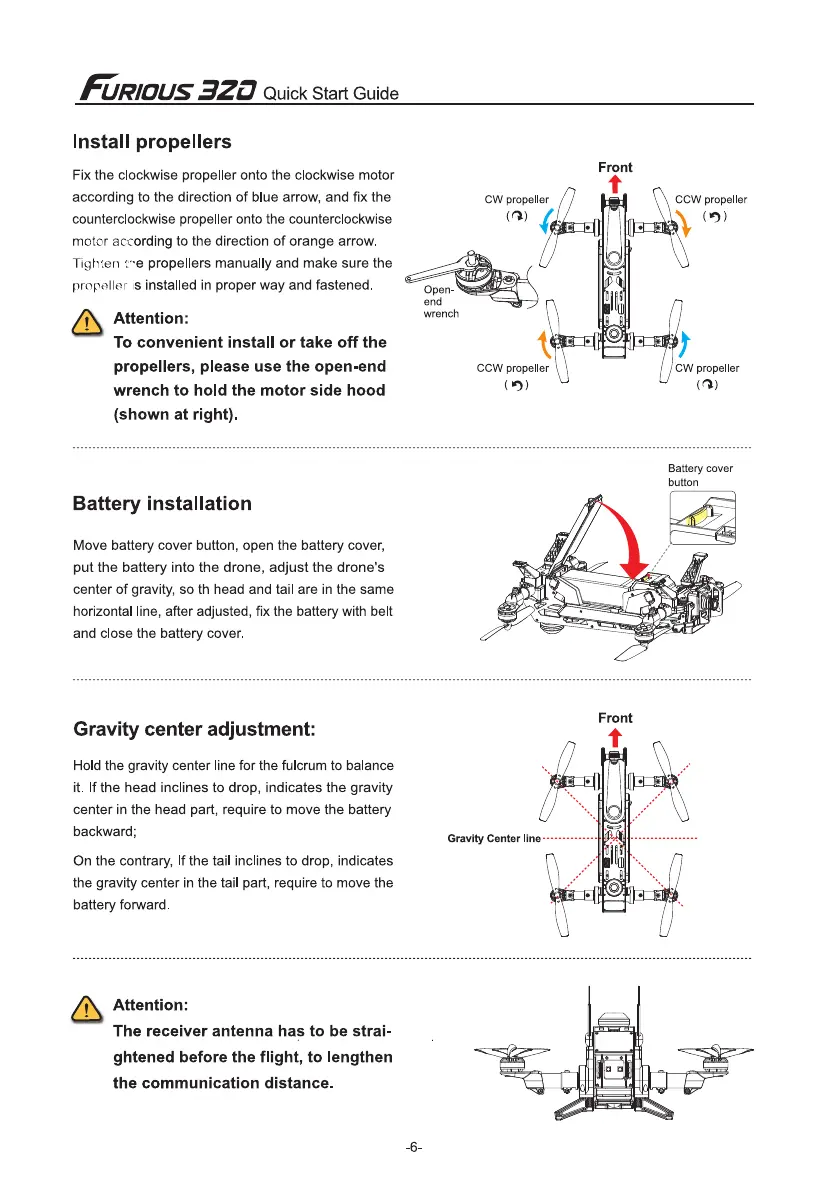

Quick Start Guide
Install propellers
Fix the clockwise propeller onto the clockwise motor
according to the direction of blue arrow, and fix the
counterclockwise propeller onto the counterclockwise
motor according to the direction of orange arrow.
Tighten the propellers manually and make sure the
propeller is installed in proper way and fastened.
Q
Attention:
To convenient install or take off the
propellers, please use the open-end
wrench to hold the motor side hood
(shown at right).
Battery cover
button
Battery installation
Move battery cover button, open the battery cover,
put the battery into the drone, adjust the drone's
center of gravity, so th head and tail are in the same
horizontal line, after adjusted, fix the battery with belt
and close the battery cover.
Gravity center adjustment:
Hold the gravity center line for the fulcrum to balance
it. If the head inclines to drop, indicates the gravity
center in the head part, require to move the battery
backward;
On the contrary, If the tail inclines to drop, indicates
the gravity center in the tail part, require to move the
battery forward.
Front
i n Attention:
The receiver antenna has to be strai-
ghtened before the flight, to lengthen
the communication distance.
-6-
