4. Main Connections
The Mains are three-phase.
The system can be connected either single-phase or three-phase.

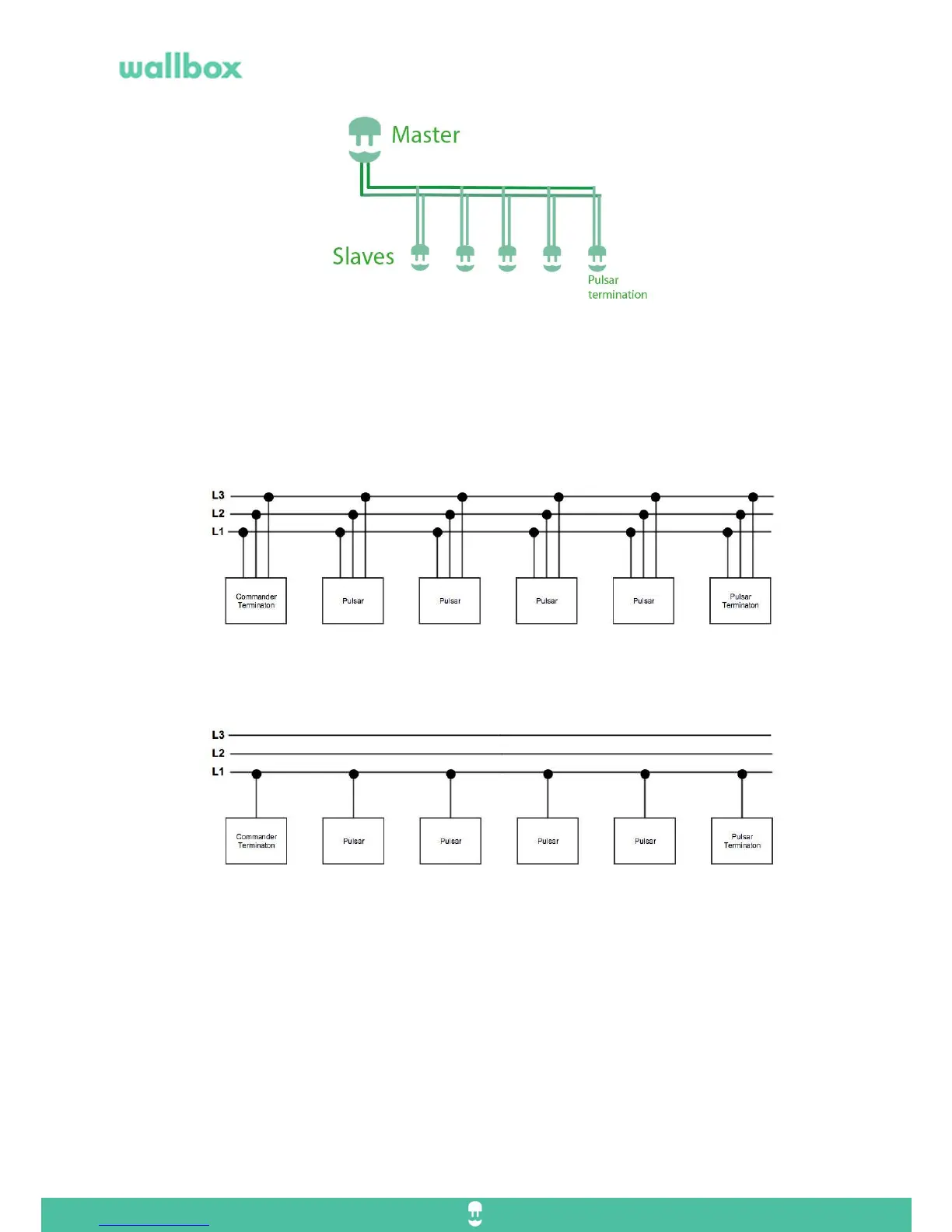

Diagram of connection for Power Sharing on three-phase.
Diagram of connection for Power Sharing on single-phase. All chargers must be connected to same line.
