WBPS-IM-001-EN
6/9
5. Installing
Please follow the installation manual for Commander and Pulsar to mount each charger.
The Commander will be the Master.

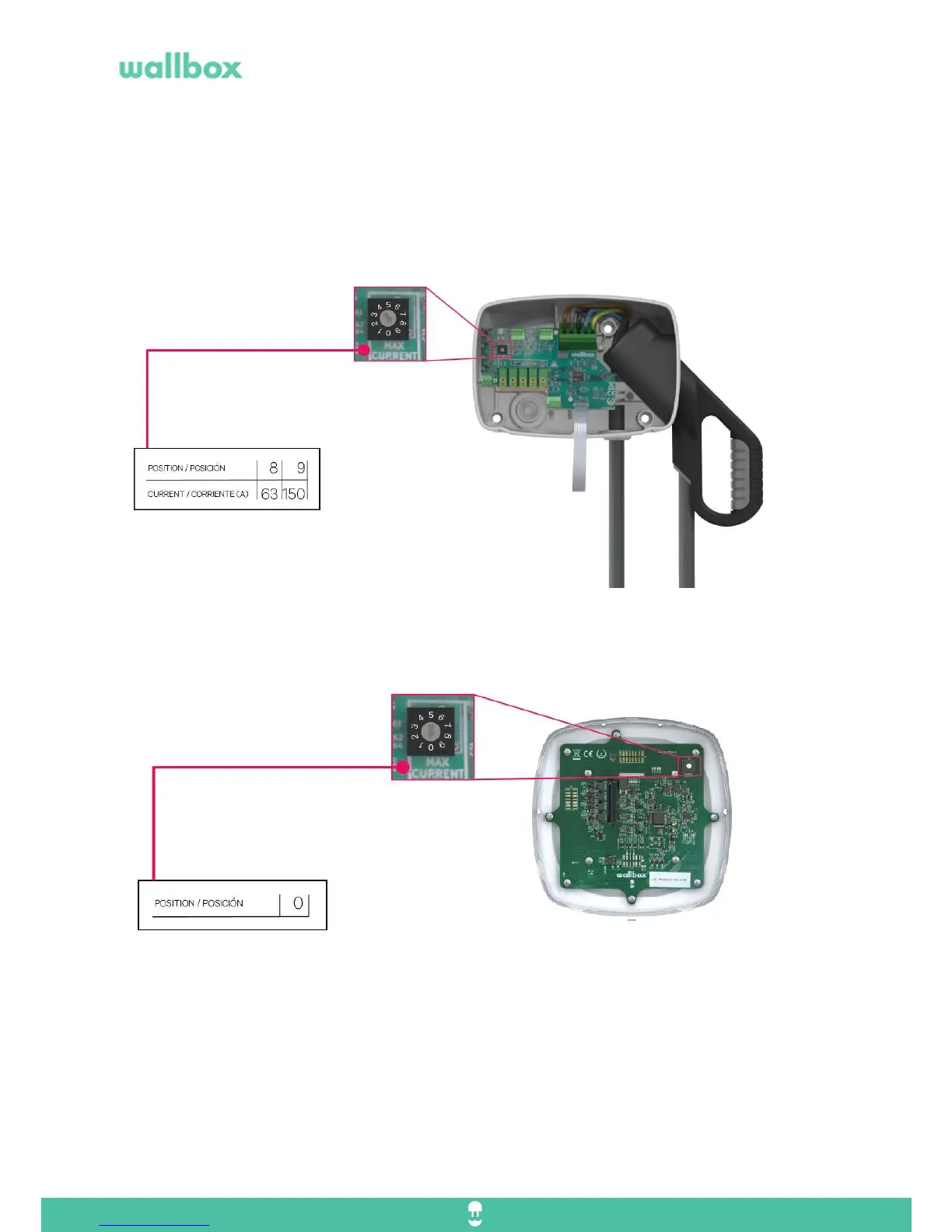

Select position on current selector to:
Position 8 (63 A) – Up to 5 slaves
Position 9 (150 A) – Up to 14 slaves
The Pulsar will be the Slave.
Select position on current selector to 0
