WBPS-IM-001-EN
7/9
The CAN bus cable can be installed along the power cables, in the same cable conduit.

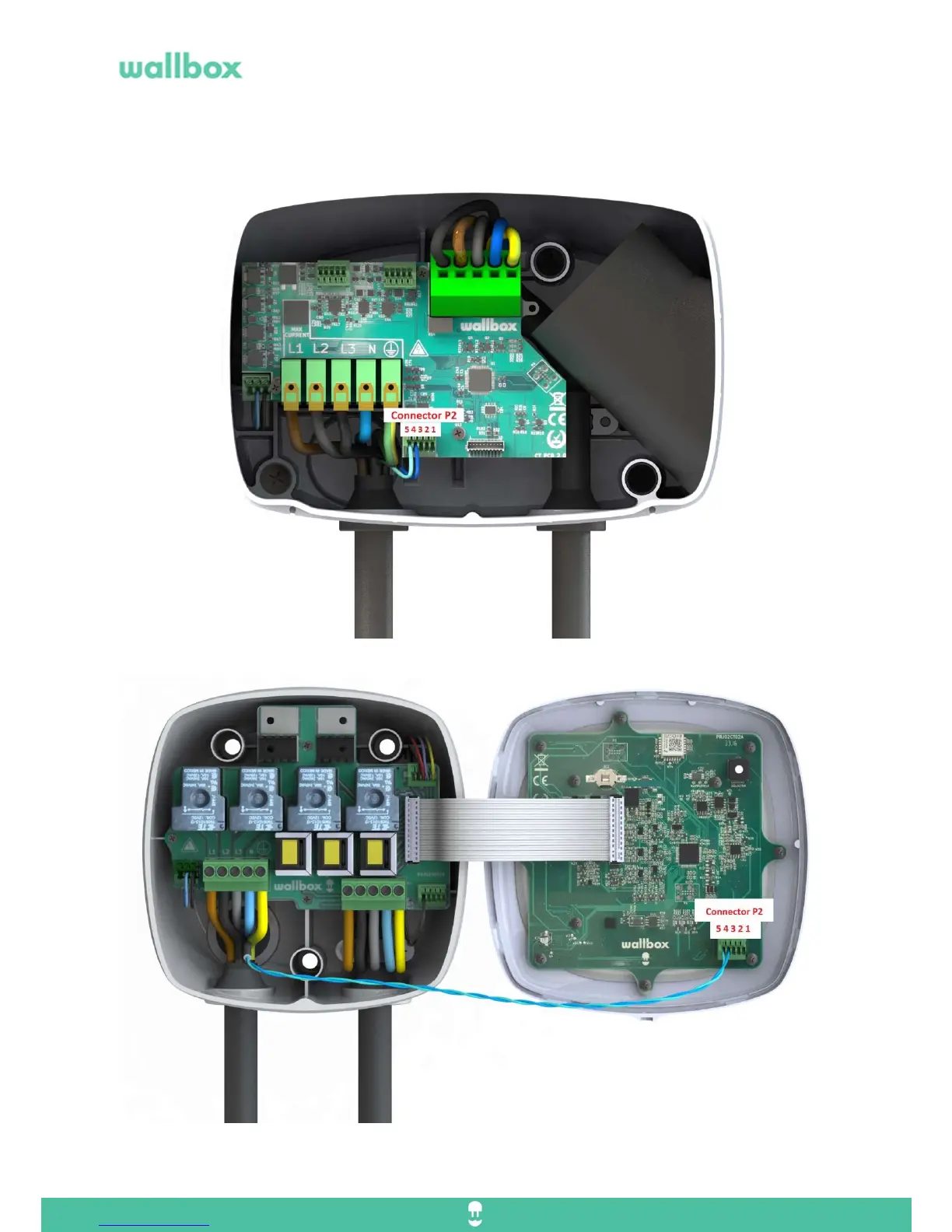

Every charger must be connected to the pins following the schematic.
