4.2 MACHINE COMPONENTS
The Wallenstein Skid Steer Woodsplitter consists
of a wedge on the end of a hydraulic cylinder for
splitting wood or logs. The remote on the skid
steer is used to provide pressurized oil to the

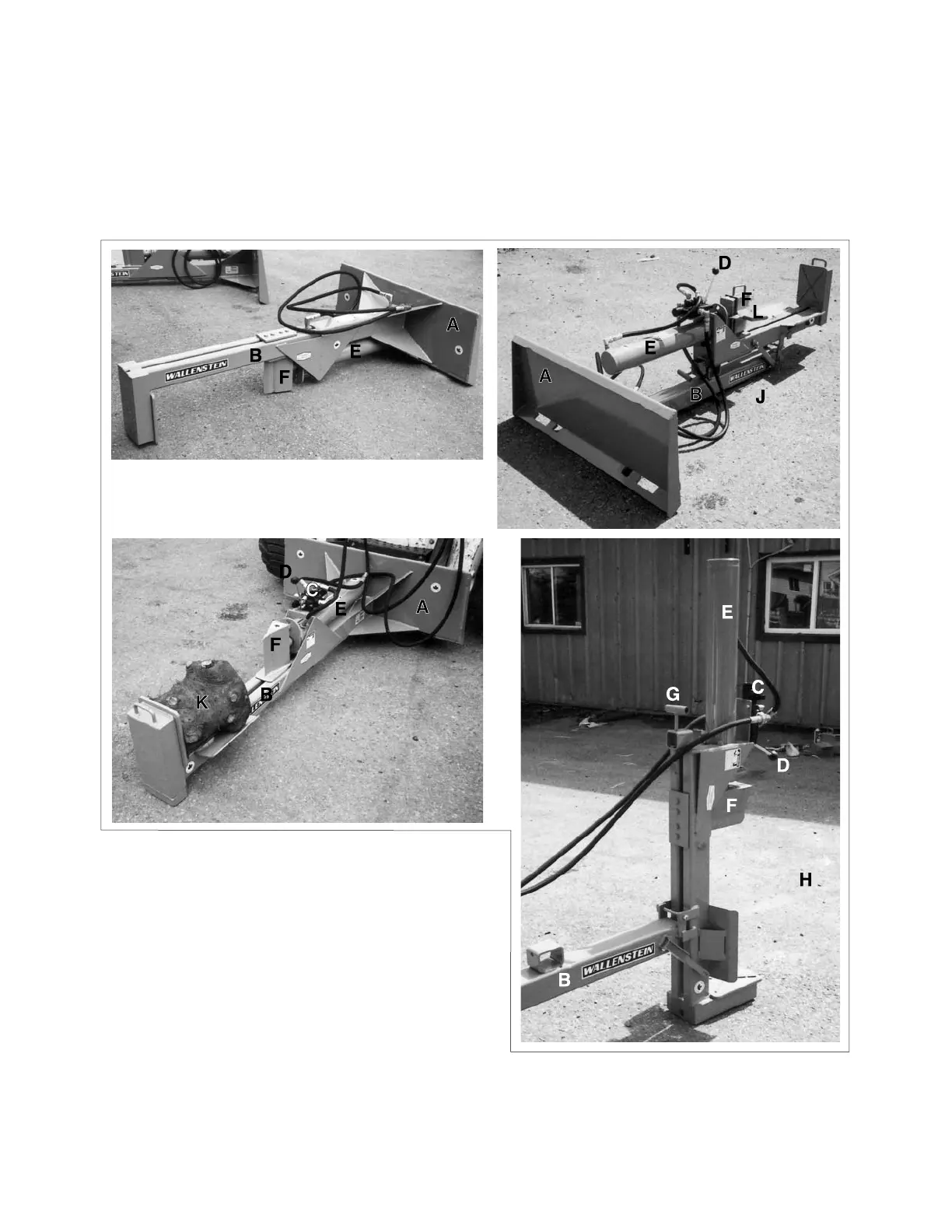

Fig. 1 MACHINE COMPONENTS
A Mounting Frame
B Splitter Frame
C Control Valve
D Control Lever
E Hydraulic Cylinder
F Wedge
G Frame Latch
H Vertical Conguration
J Horizontal Conguration
K Log
L 4 Segment Wedge (optional)
valve and cylinder to split the wood or log. The
WX470 Splitter can be used in vertical or horizon-
tal conguration.
