4.7 CONTROLS
Before starting to work, all operators should fa-
miliarize themselves with the location and func-
tion of the controls.
1. Skid Steer Controls:
The Skid Steer provides hydraulic power to
the machine whenever it is used.
Always review the "controls" section of the
Skid Steer operator's manual to be familiar
with the location, settings and function of the
controls..
a. Use the hydraulic controls in the cab to
move the cylinder in and out when split-
ting with the WX410 inverted model. Di-
rect the ow through the front outlets.
b. Place the remote hydraulic circuit in
detent to provide hydraulic power to the
control valve on all other model split-
ters.
2. Splitter Hydraulic Control:
This 3-position spring-loaded-to-center-
neutral lever controls the ow of oil to the
cylinder. Move the lever toward the base
and hold for the cylinder ram to extend and
split the wood. Move the lever away from
the base and hold to retract the cylinder
ram. Release the lever and it will return to
its centered neutral position and the cylinder
ram will stop moving.
Horizontal
Vertical

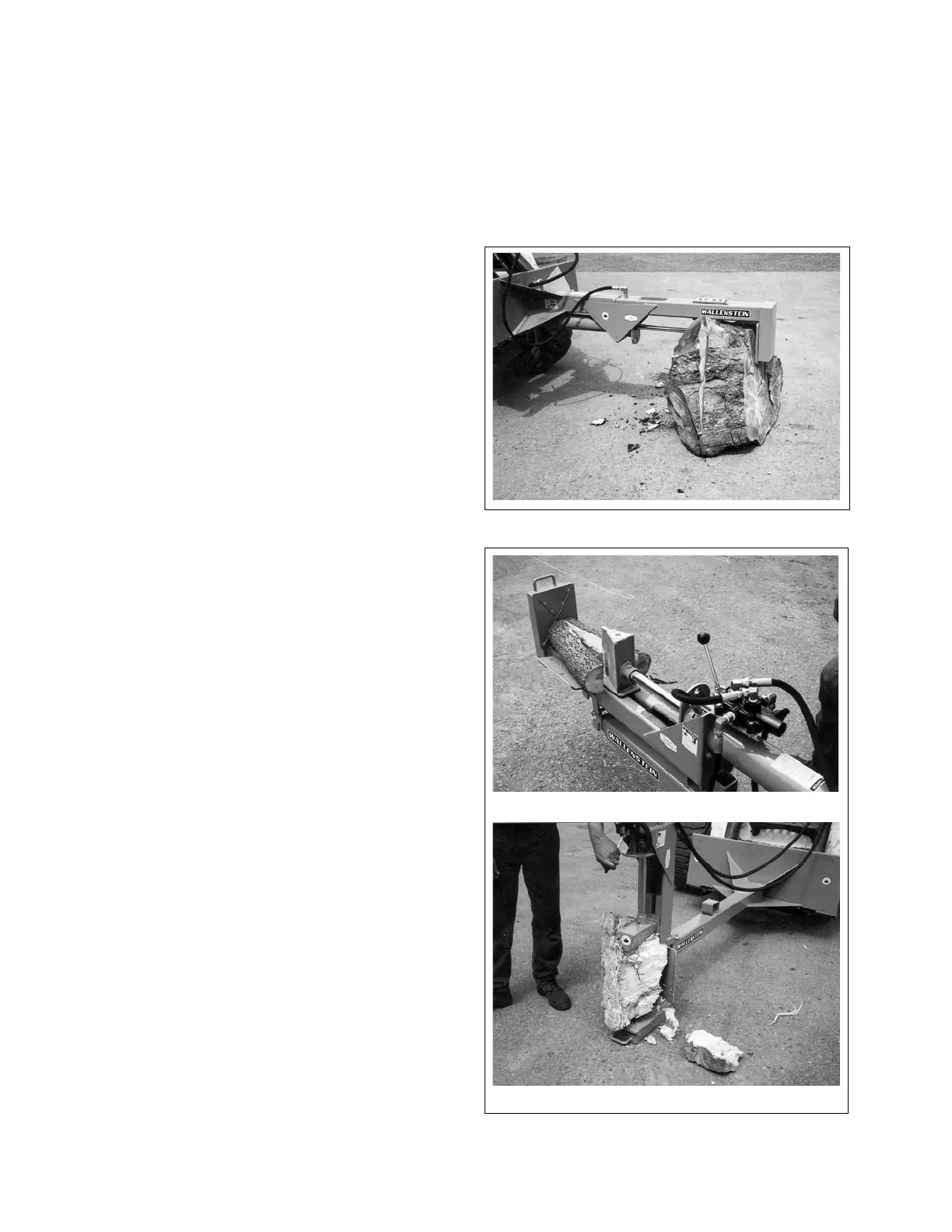

Fig. 7 WX410
Fig. 8 HYDRAULIC VALVE
