16
4.5 ASSEMBLY
The machine is shipped from the factory in a partially
disassembled conguration and attached to a pallet
that provides easy moving and handling. Always
use tools, equipment and fork lifts of appropriate size
and capacity for the job. Always use 2 men when
lifting, moving and assembling the machine.
When the machine is shipped, follow this proce-
dure when preparing for the customer:
1. Clear the area of bystanders, especially small
children.
2. Remove the pallet tie-downs.
3. Use a forklift to lift the pallet/machine from the
truck. Carry the load close to the ground as it is
moved to the assembly area and positioned.
4. Remove the machine from the pallet.
5. Install the control lever:
a. Remove the package of control compo-
nents from the frame and lay out.
b. Attach the lever to the control plunger and
install the pin and anchor.
c. Raise the lever into its vertical position and
install the last anchor pin and retainer.
IMPORTANT
Be sure to spread the ends
of the cotter pins retainers.

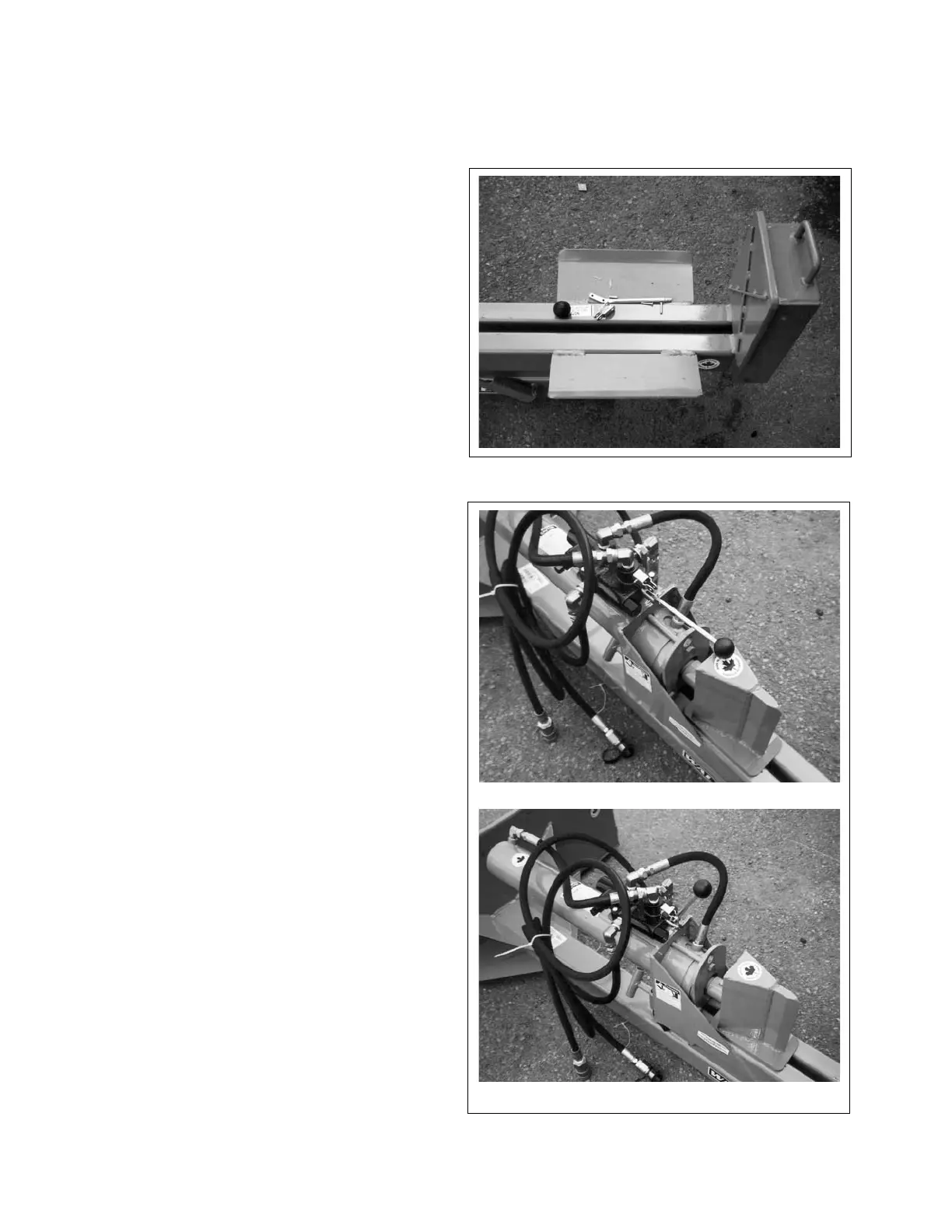

Fig. 2 LAY OUT
Fig. 3 CONTROL LEVER INSTALLED (Typical)
Lever
Retainers
To Next Page
