6. Mount or install the 4 way blade:
A slip-on or bolt-on version is available depend-
ing on the model. Use the slip-on for all models
except the WX540 and WX980 models.
a. Slide the 4 blade assembly on over the
single blade.
b. For the bolt-on style:
• Remove the mounting bracket and
hardware.
• Place the 4 blade assembly over the
single blade.
• Mount the U bolt bracket around the
cylinder ram.
• Tighten fasteners until the locking nylon
grips securely or until the thread of the
U-bolt protrudes through nut 1/8 inch.

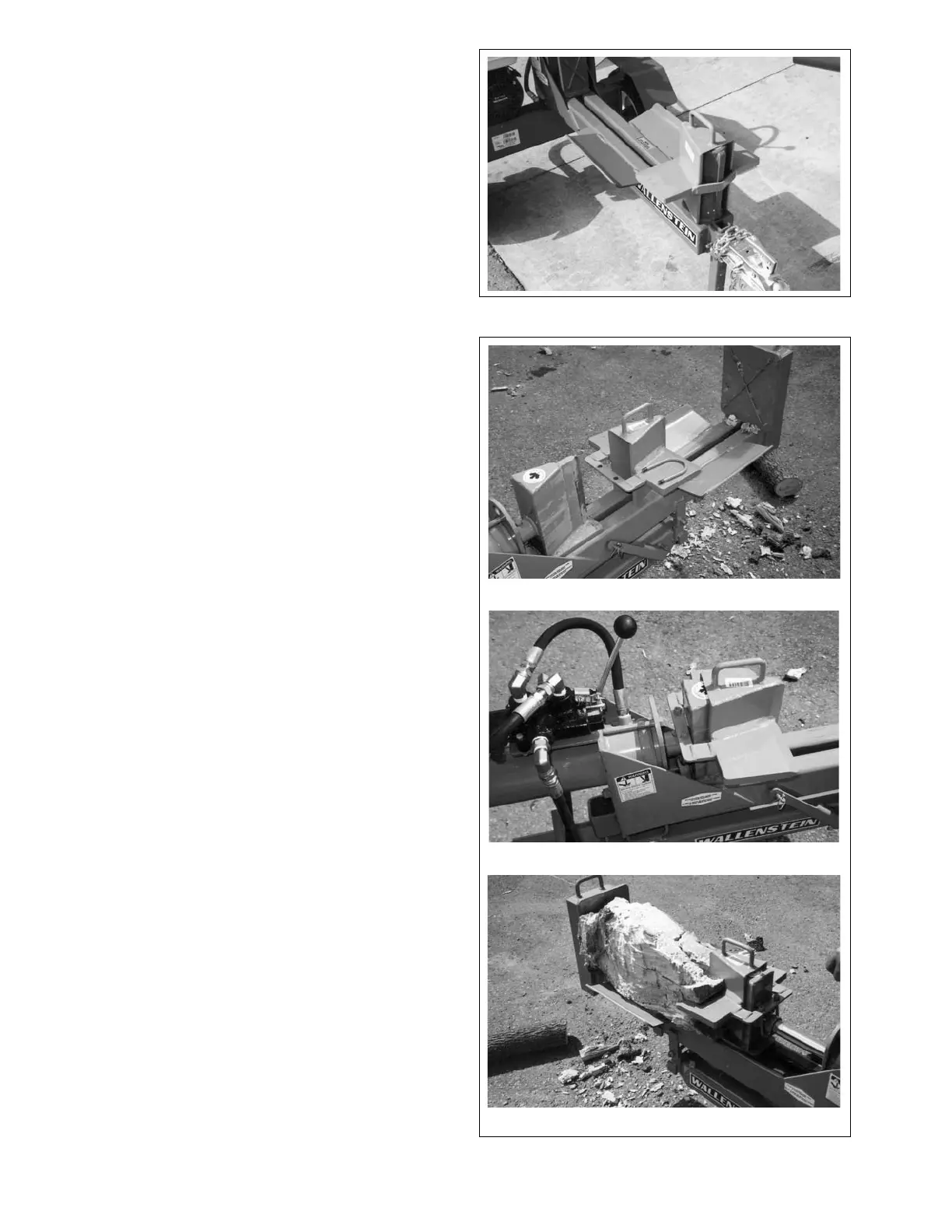

Fig. 4 SLIP-ON (Typical)
Lay-Out
Mounted
Splitting
Fig. 5 BOLT-ON
NOTE
It should never get tight. It
is only used as a safety and
needs room to oat.
