Assembly Instructions – Full-Jet Valve VMS-02
Walther Systemtechnik GmbH – D 76726 Germersheim
Telefon: +49 (0)7274-7022-0 Telefax: +49 (0)7274-7022-91
http://www.walther-2000.de – info@walther-2000.de

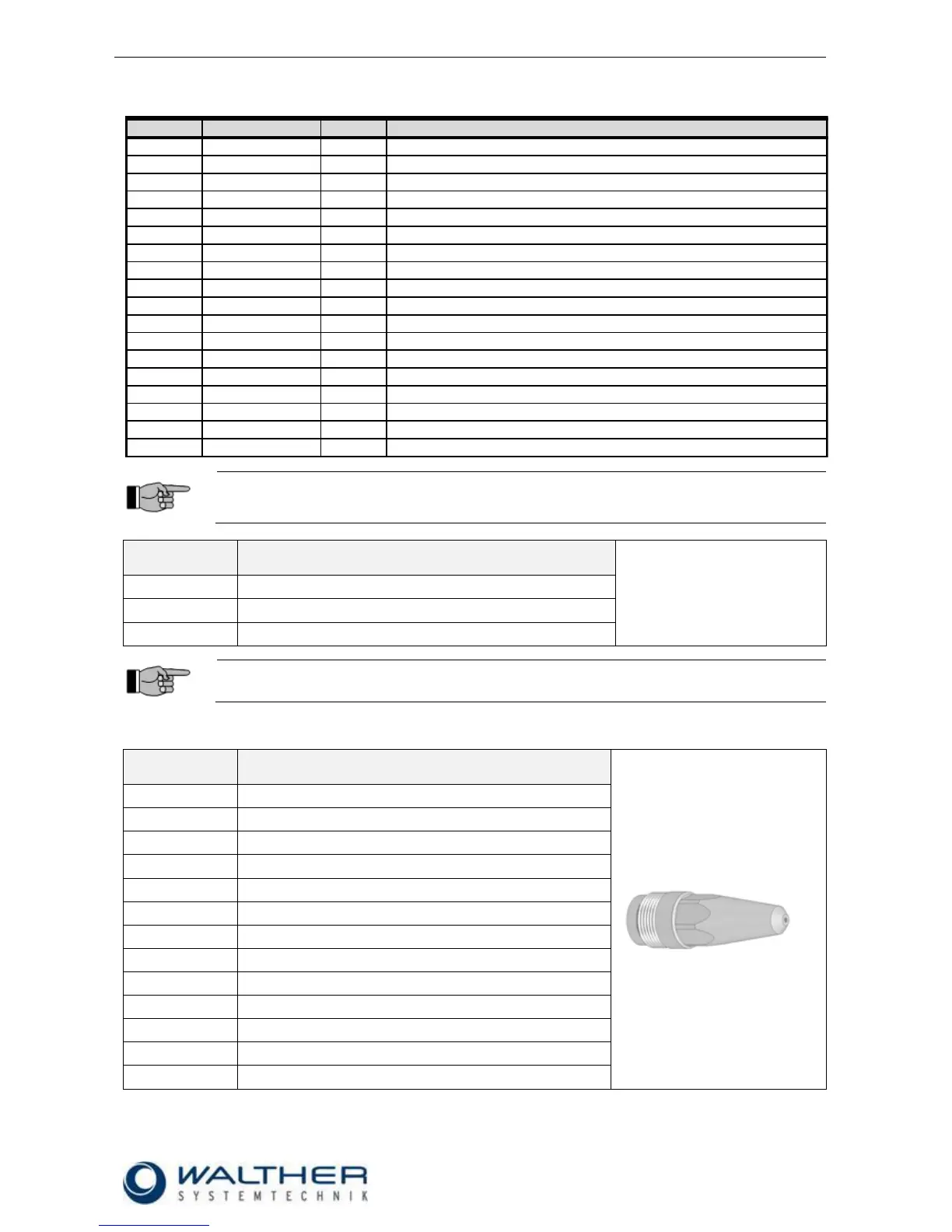

Dwg-No. Article No. Qty Description
1.0 * 1 nozzle, stainless steel
2.0 97510064 1 valve body VMS-02, complete
3.0 97640102 1 gasket set
3.1 97640021 1 O-ring 6.07 x 1.78 mm / Viton
3.2 97640101 1
protecting cover, ø 10 x 6mm
3.3 97640004 1 Variseal 2.65 x 2.0 x 2.8 mm
4.0 97810014 1 sealing screw, complete, 11 x 21 mm
4.1 97810017 1 sealing screw, 11 x 21 mm
4.2 97640026 1 O-ring 2.90 x 1.78 mm
5.0 * 1 needle, complete
5.1 97640001 1 O-ring 7.65 x 1.78 mm / Viton
6.0 97820020 1 pressure spring 1.1 x 22 mm (0 - 30 bar material pressure)
6.0 97820024 1 pressure spring 1.2 x 21.5 mm (30 - 100 bar material pressure)
7.0 * 1 ratchet needle lock, ø 15 x 45 mm
8.0 97640077 2 O-ring 5 x 1 / Viton
9.0 97610004 2 screw M2.5 x 30
10.0 * 1 solenoid valve with plug
11.0 97220089 1 screw connection, complete, SW 8 x 19 mm
IMPORTANT
If a Luer-Lock adapter has been installed, we will mount nozzle needle (Article No.
97110235) as standard!
“Standard“ raster needle lock
“Needle sensor 24 VDC“ raster needle lock
IMPORTANT
Please always indicate the inscribed serial numbers when ordering spare parts!
10.3 Article Numbers for Nozzles, Nozzle Needles and Magnetic Valves
Nozzle, LV, stainless steel
To Next Page
