W&F-LOCKS 1402 "One-Timer" - Ordering Matrix Lock; Service Key

1. Colour
2. Service cylinder key no.
3. Direction of rotation
4. Cam position
5. Crank direction
033
041
051
Only needed if premounting of cam requested (see hint uneder 5.1)
Always needed Information
G
B
(black)
(dusty grey
RAL 7073)
L
R
12
03
06
09
H
V
Order example lock:
(grey lock with premounted cam)
(for cam order see 5.2)
Order example service key
:
(matching the lock above)
View from front when locked
R: right hinged doors
L: left hinged doors
(Special key numbers on request)
(Special colours on request)
L1402- G - 051 - R - 09 - H
S1402- 051
- 10 -
(if cranked)

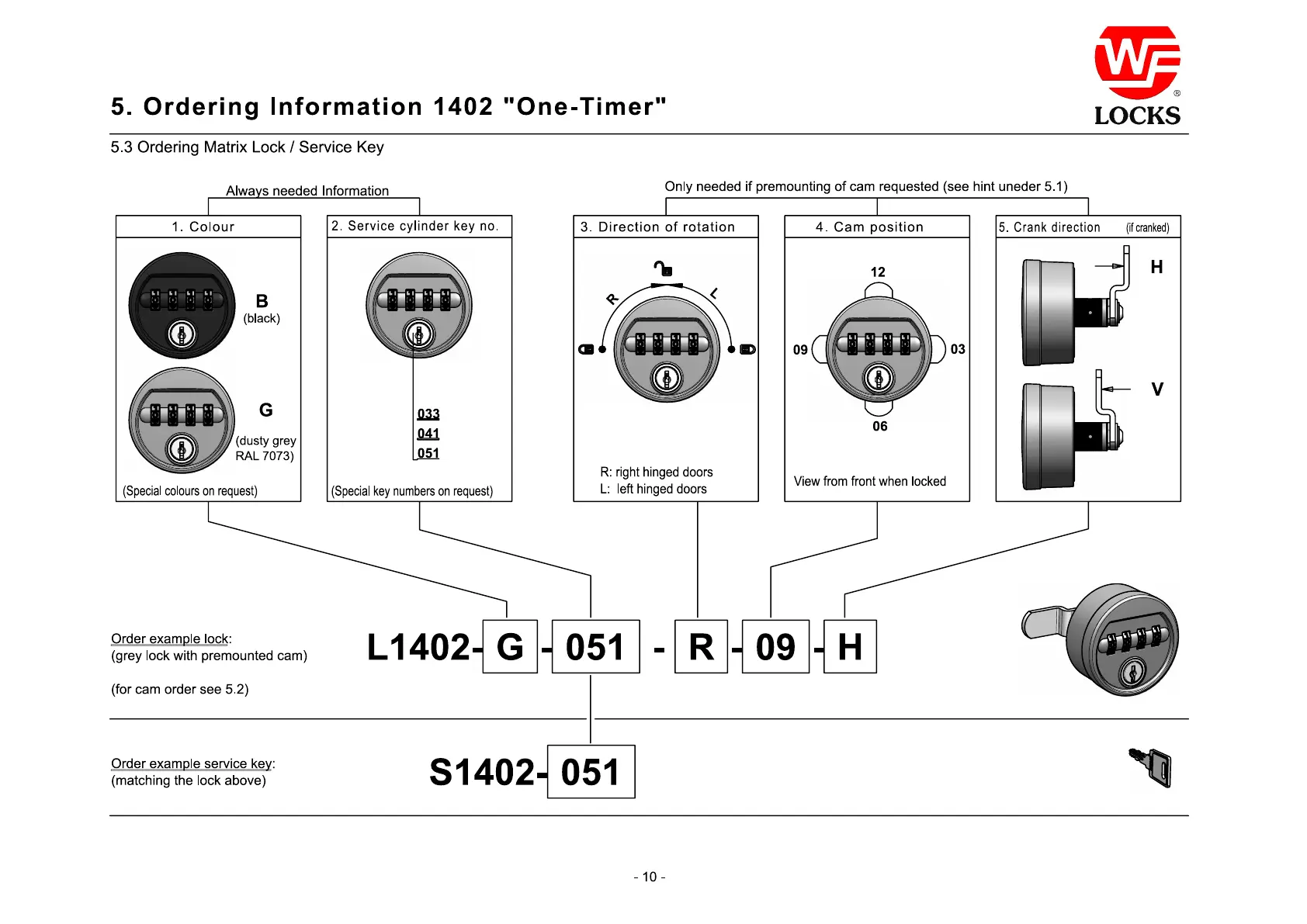

5. Ordering Information 1402 "One-Timer"
5.3 Ordering Matrix Lock / Service Key
