W&F-LOCKS 1402 "One-Timer" - Setting Direction of Rotation

90°
90°

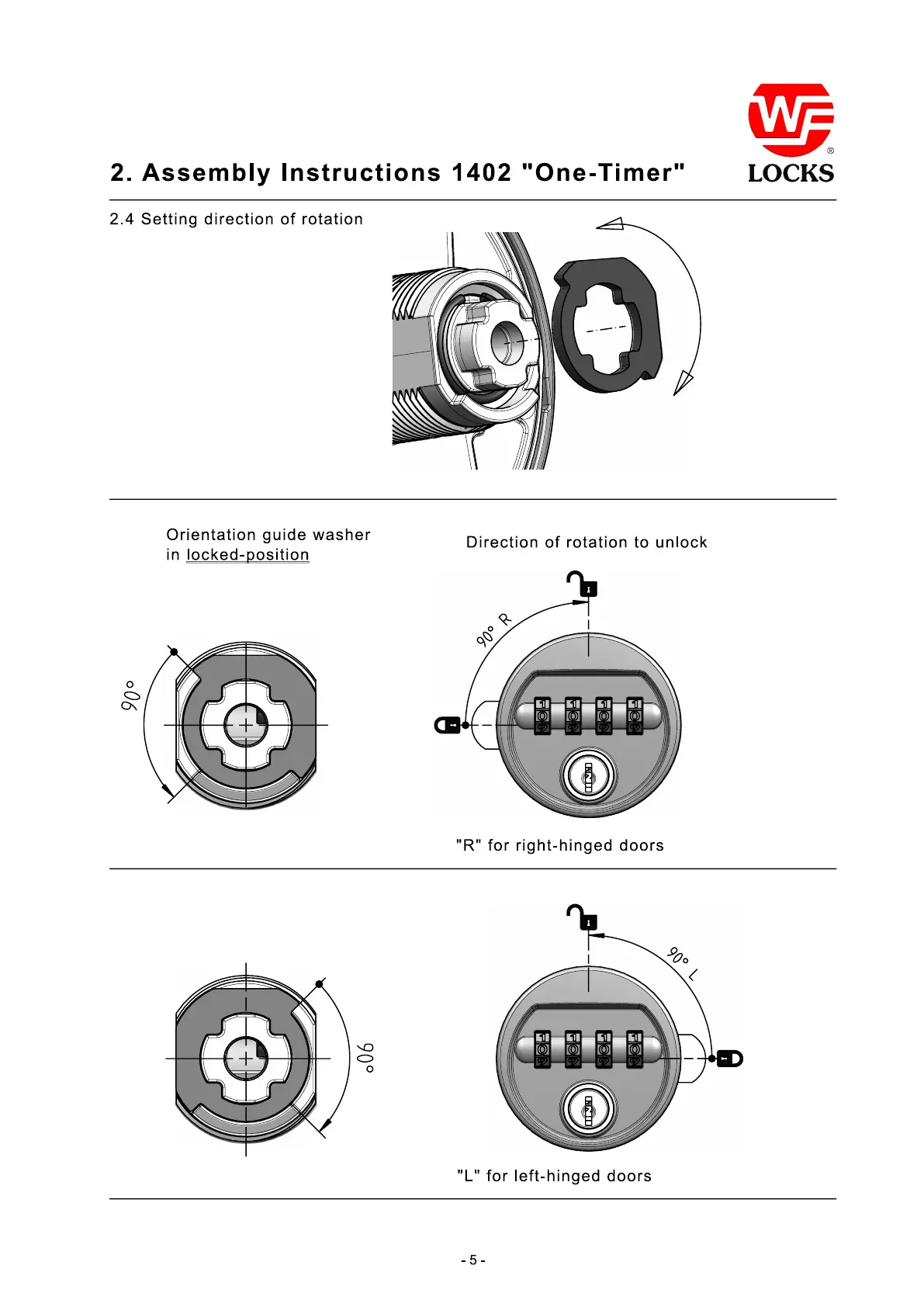

2.4 Setting direction of rotation
"R" for right-hinged doors
2. Assembly Instructions 1402 "One-Timer"
Orientation guide washer
in locked-position
Direction of rotation to unlock
"L" for left-hinged doors
- 5 -
90°
R
90°
L
