W&F-LOCKS 1402 "One-Timer" - 2 Assembly Instructions; Important Hints for Fitters; Assembly Exploded View

Cam fixing screw (TX25)
Lock fixing nut (WDF22)
Locking system
1402
Panel
with 16x19mm piercing hole
Cam

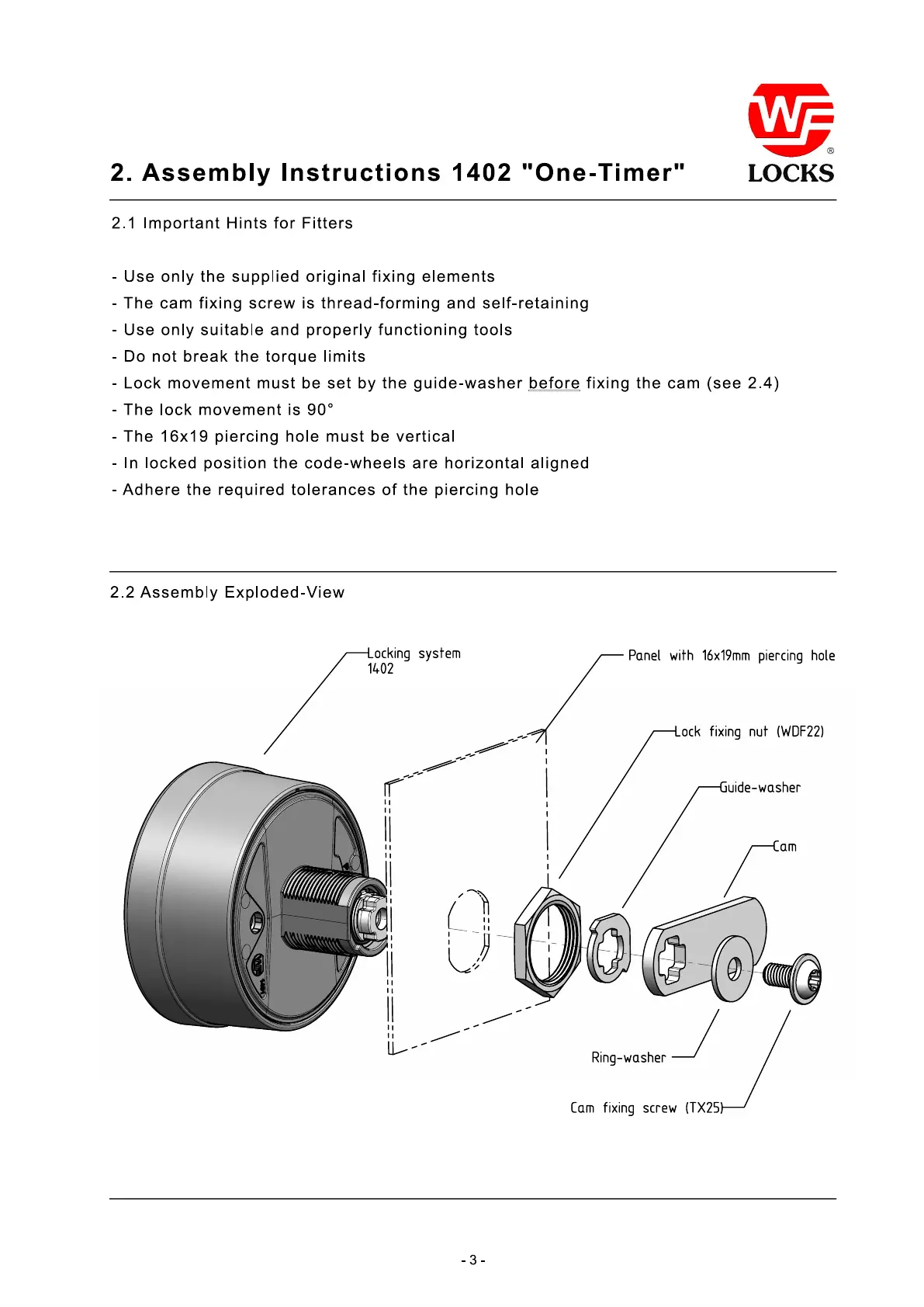

2.2 Assembly Exploded-View
Guide-washer
2.1 Important Hints for Fitters
- Use only the supplied original fixing elements
- The cam fixing screw is thread-forming and self-retaining
- Use only suitable and properly functioning tools
- Do not break the torque limits
- Lock movement must be set by the guide-washer before fixing the cam (see 2.4)
- The lock movement is 90°
- The 16x19 piercing hole must be vertical
- In locked position the code-wheels are horizontal aligned
- Adhere the required tolerances of the piercing hole
- 3 -
Ring-washer
2. Assembly Instructions 1402 "One-Timer"
