W&F-LOCKS 1402 "One-Timer" - Ordering Matrix Cam

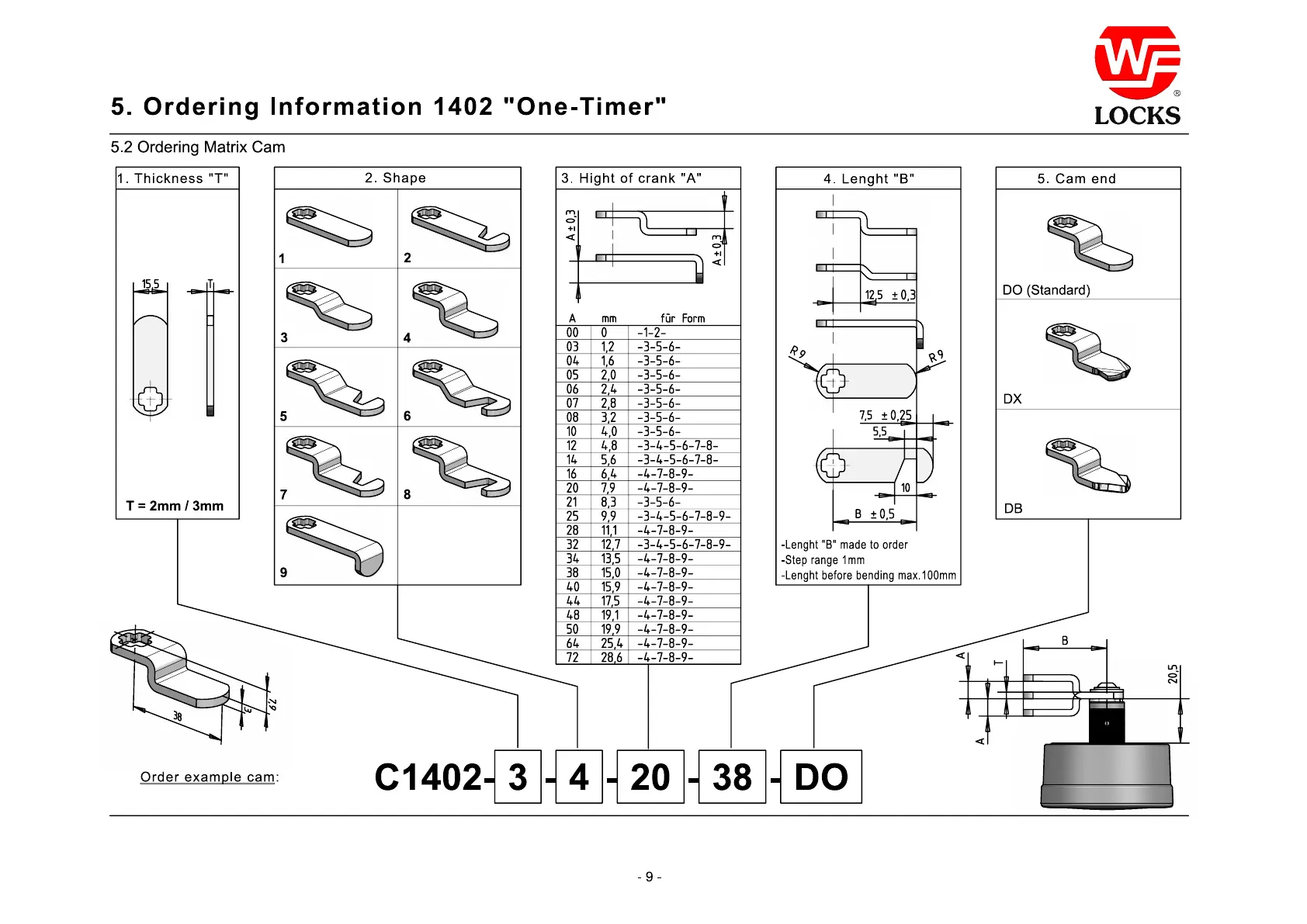

5.2 Ordering Matrix Cam
3. Hight of crank "A"
2. Shape
C1402- 3 - 4 - 20 - 38 - DO
5. Cam end
1. Thickness "T"
5. Ordering Information 1402 "One-Timer"
4. Lenght "B"
Order example cam :
1
2
3
4
5
6
7
8
9
A
0,3
A
0,3
A
mm
für Form
20,5
00
03
04
05
06
07
08
10
12
14
16
20
21
25
28
32
34
38
40
44
48
50
64
72
0
1,2
1,6
2,0
2,4
2,8
3,2
4,0
4,8
5,6
6,4
7,9
8,3
9,9
11,1
12,7
13,5
15,0
15,9
17,5
19,1
19,9
25,4
28,6
-1-2-
-3-5-6-
-3-5-6-
-3-5-6-
-3-5-6-
-3-5-6-
-3-5-6-
-3-5-6-
-3-4-5-6-7-8-
-3-4-5-6-7-8-
-4-7-8-9-
-4-7-8-9-
-3-5-6-
-3-4-5-6-7-8-9-
-4-7-8-9-
-3-4-5-6-7-8-9-
-4-7-8-9-
-4-7-8-9-
-4-7-8-9-
-4-7-8-9-
-4-7-8-9-
-4-7-8-9-
-4-7-8-9-
-4-7-8-9-
15,5 T
T = 2mm / 3mm
-Lenght "B" made to order
-Step range 1mm
-Lenght before bending max.100mm
DO (Standard)
DX
DB
B
0,5
10
5,5
7,5
0,25
12,5
0,3
9
R
9
R
- 9 -
B
A
A
T
38
7,9
3
