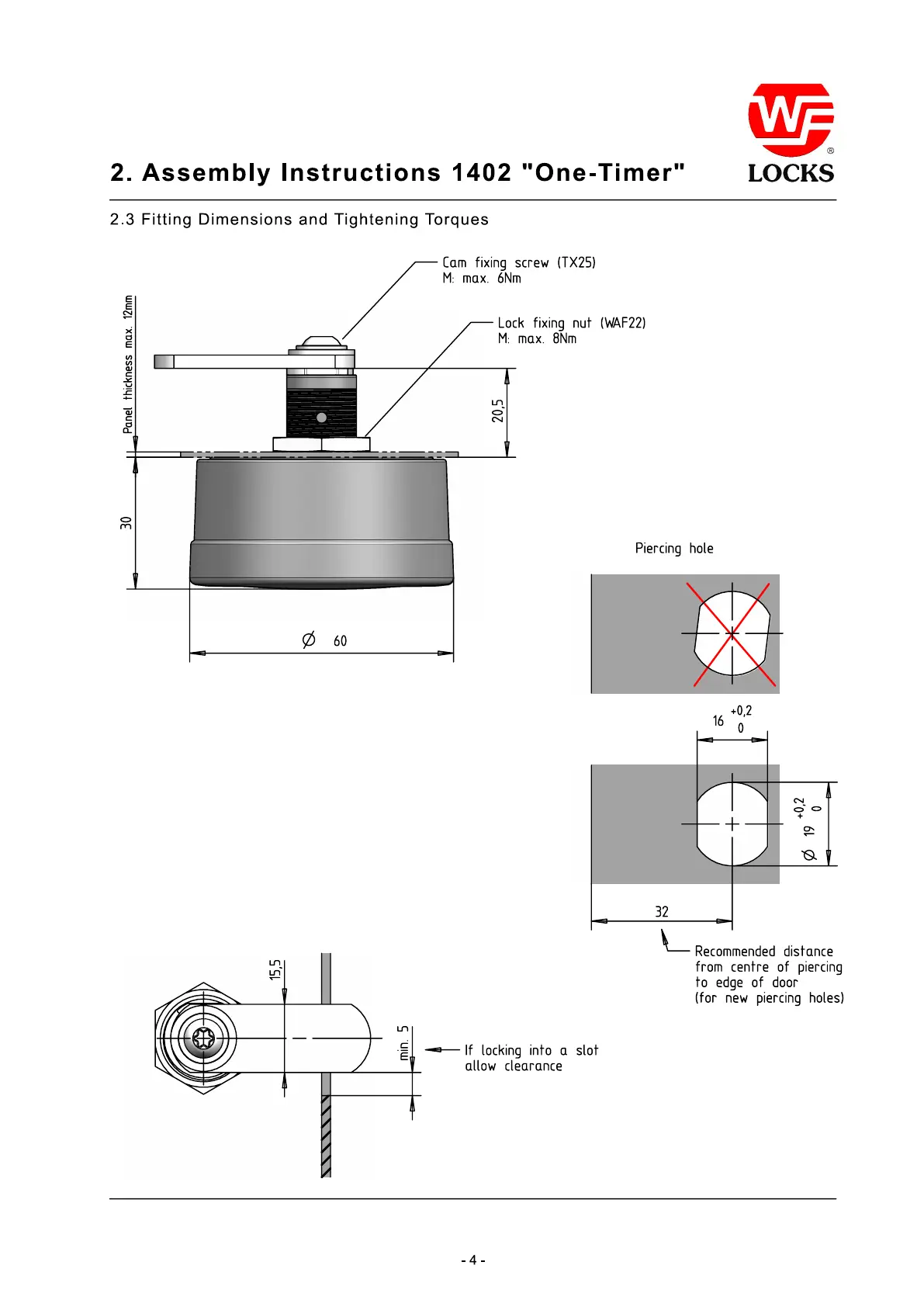

W&F-LOCKS 1402 "One-Timer" - Fitting Dimensions and Tightening Torques

30
20,5
60
Lock fixing nut (WAF22)
M: max. 8Nm
Recommended
distance
from centre of piercing
to edge of door
(for new piercing holes)
Cam fixing screw (TX25)
M: max. 6Nm
15,5
min.
5
If locking into a slot
allow clearance
19
+0,2 0
16
+0,2
0
32
Piercing hole
2. Assembly Instructions 1402 "One-Timer"
- 4 -
Panel
thickness
max.
12mm
2.3 Fitting Dimensions and Tightening Torques
