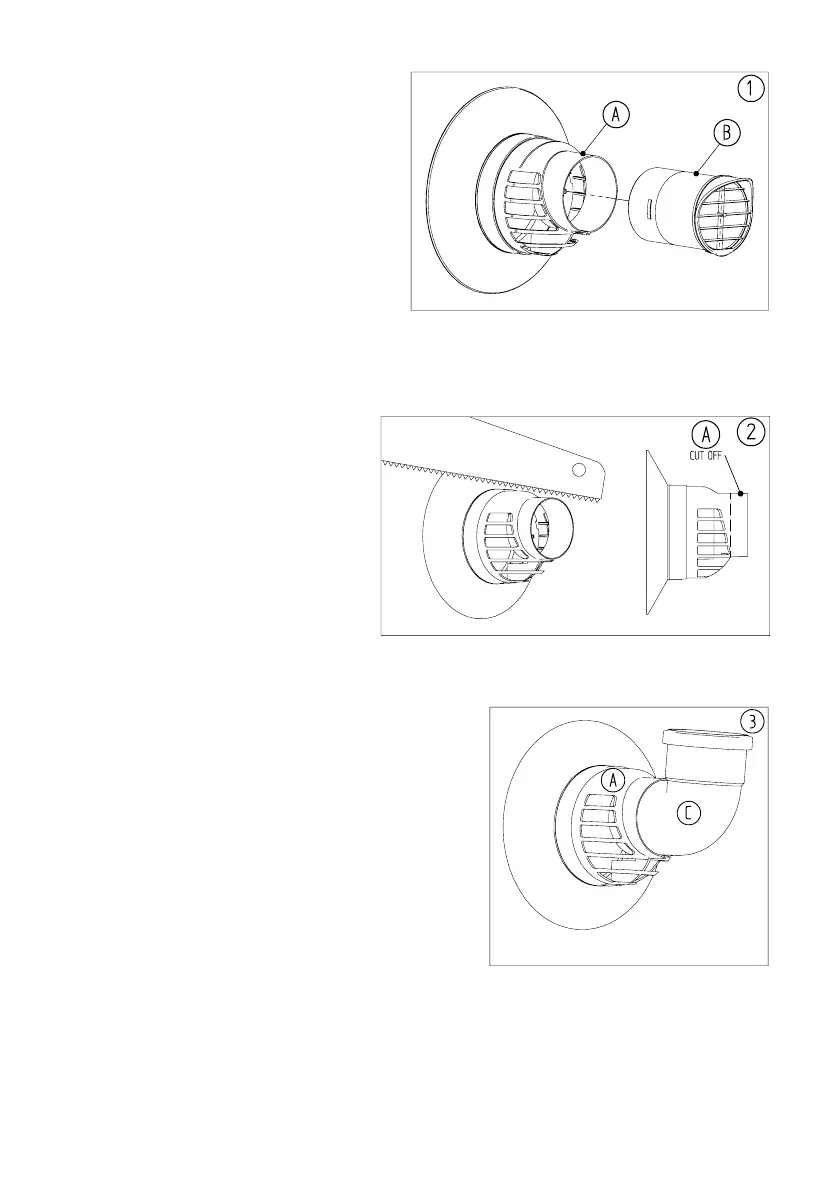

REMOVE TERMINAL END
1. Hold the Terminal Assembly (A) in
place and extract the Terminal End
(B) by gripping and pulling firmly.
CUT OFF EXCESS MATERIAL
2. Using a suitable saw, cut off the
highlighted portion of the end of
the Terminal Assembly (A) then
de-burr the cut edge.
FIT DIVERTER ELBOW
3. Lubricate and insert one of the Elbows (C)
into the end of the Terminal Assembly (A).
Elbow (C) can be pointed at any angle up to +/-
87° from the vertical. It must not be pointed
horizontally or downwards as the effect of the
flue gas condensate will reduce the life of the
flue seals.
ASSEMBLE THE KIT
Assemble the remainder of the kit inserting the
Terminal End (B) into the top Elbow (C) and using the Mounting Brackets (E) to
secure the Extensions (D) as shown in the assembled kit diagram.
