Page 81

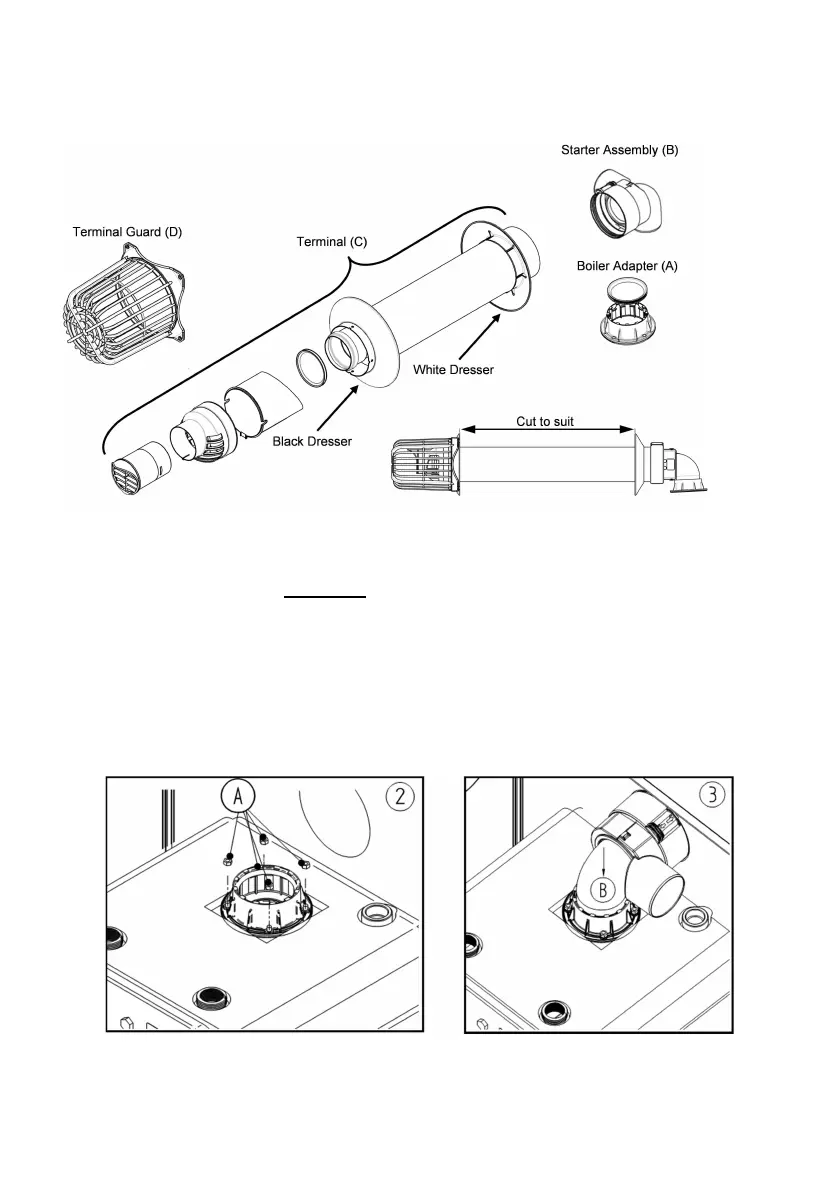

Low Level Balanced Flue Kit (FBF)
The kit comprises:
FIT FLUE THERMOSTAT
1. Fit the flue thermostat BEFORE fitting the flue kit. Refer to section 8.1.3.
FIT STARTER PIECE
2. Remove the appropriate casing panel cut-out using snips, deburr edges.
Ensure the gasket is placed correctly, then fit the boiler adapter, and secure with
4x M6 nuts (A).
3. Lubricate the seals then insert the starter assembly (B).
