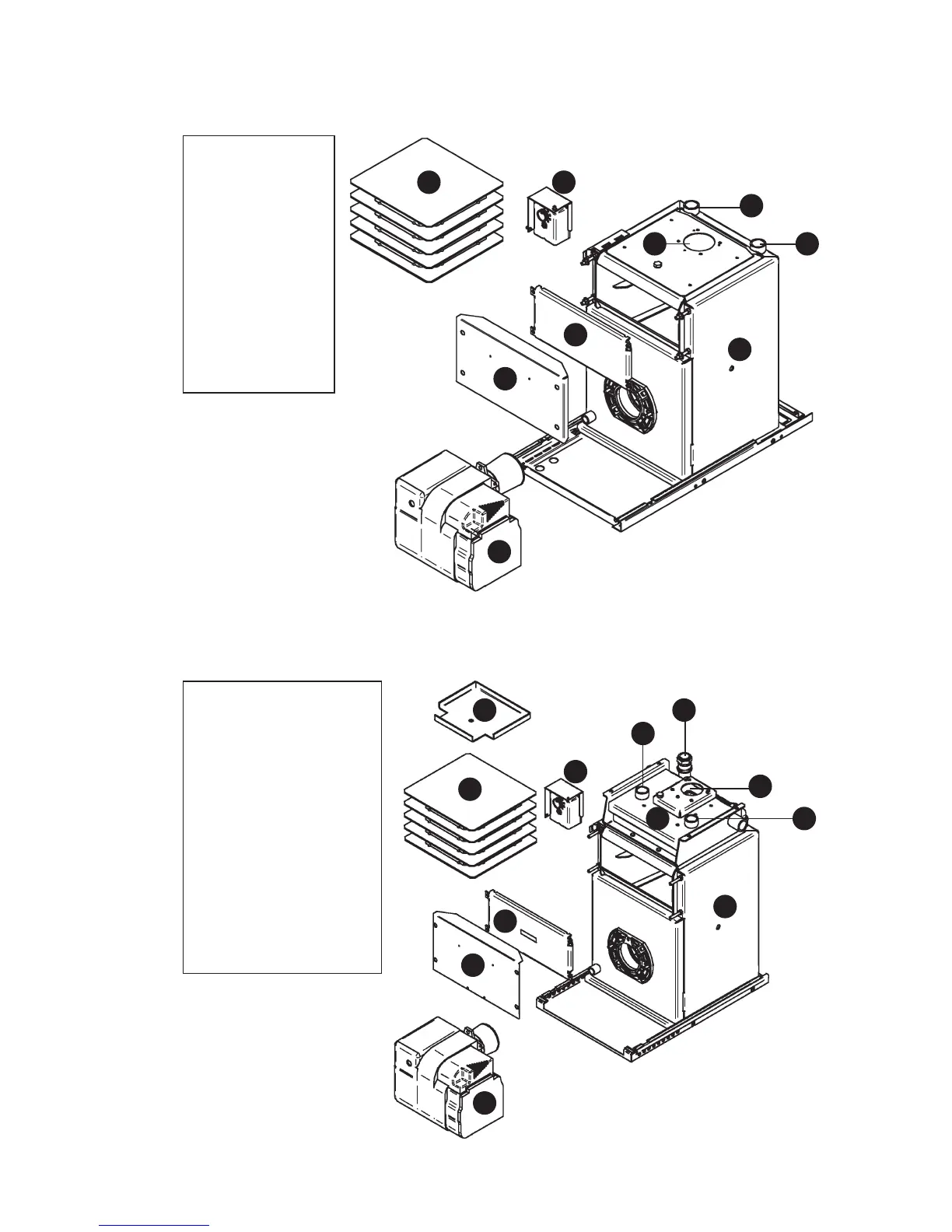

1.5.5 U-Series Utility – Pre-Wired (U70 & U90) – Key Components
1. Heat Exchanger
2. ‘Dual-Safe’
Thermostat
3. Heat Exchanger
Baffles
4. Service Door
5. Service Door
Cover
6. Riello RDB
2.2 Burner
7. Flue Opening
8. Heating Flow
Connection
9. Heating Return
Connection
1
4
6
7
3 2
9
5
1.5.6 U-Series Utility – Pre-Wired (U120) – Key Components
1. Primary Heat
Exchanger
2. Secondary Heat
Exchanger
3. ‘Dual-Safe’ Thermostat
4. Secondary Exchanger
Inspection Lid
5. Primary Exchanger
Baffles
6. Service Door
7. Service Door Cover
8. Riello RDB 2.2 Burner
9. Flue Opening
10. Heating Flow
Connection x 2
11. Heating Return
Connection
1
2
3
4
8
10
9
5
6
7
10
11
8
