8.0 Burners
8.1 RDB Burner
8.2 Oil Pump
The burner is supplied for use with a one pipe system. For use on a two pipe
system, it is necessary to remove the return port plug and fit a small by-pass plug as
shown.

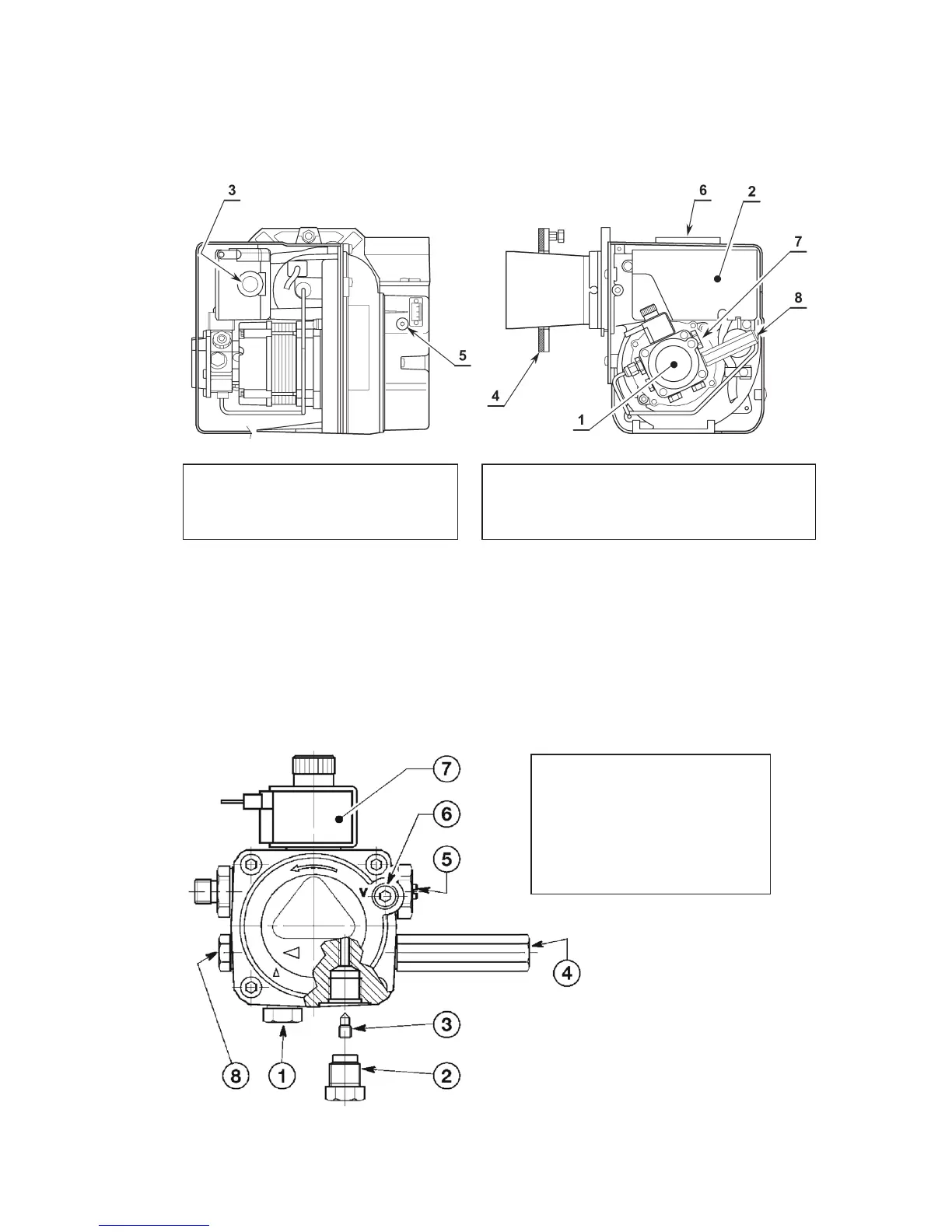

1. Pump
2. Control Box
3. Reset Button with Lock-Out Lamp
4. Flange with Insulating Gasket
5. Air Damper Adjustment Screw
6. Air Tube Connection (Supplied with BF Kit)
7. Pump Pressure Adjustment Screw
8. Pressure Gauge Port
1. Suction Line
2. Return Line
3. By-Pass Screw
4. Gauge Connection
5. Pressure Adjuster
6. Suction Gauge Connection
7. Valve
8. Auxiliary Pressure Test Point
